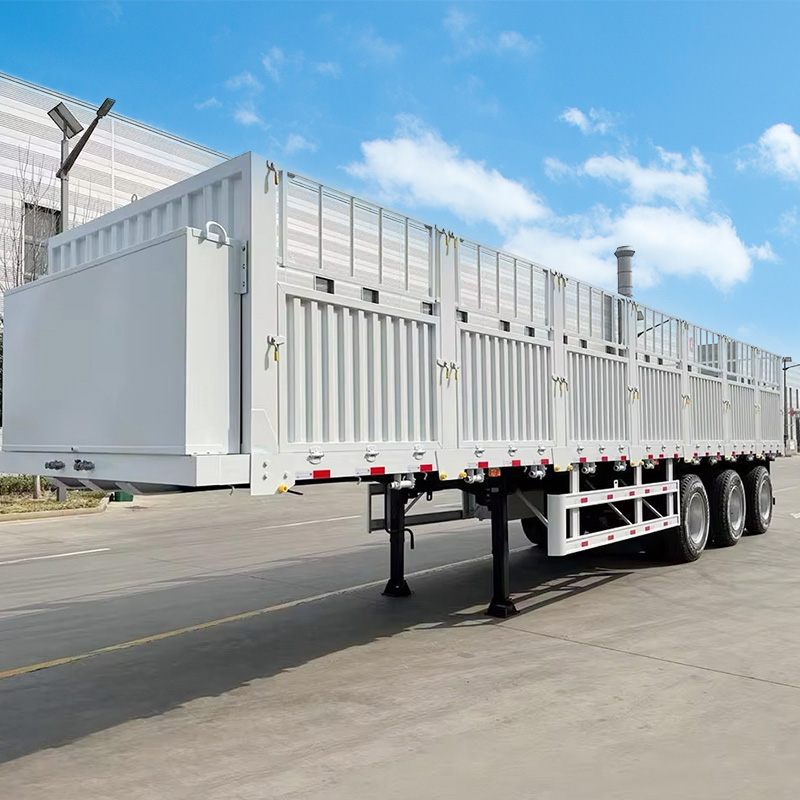

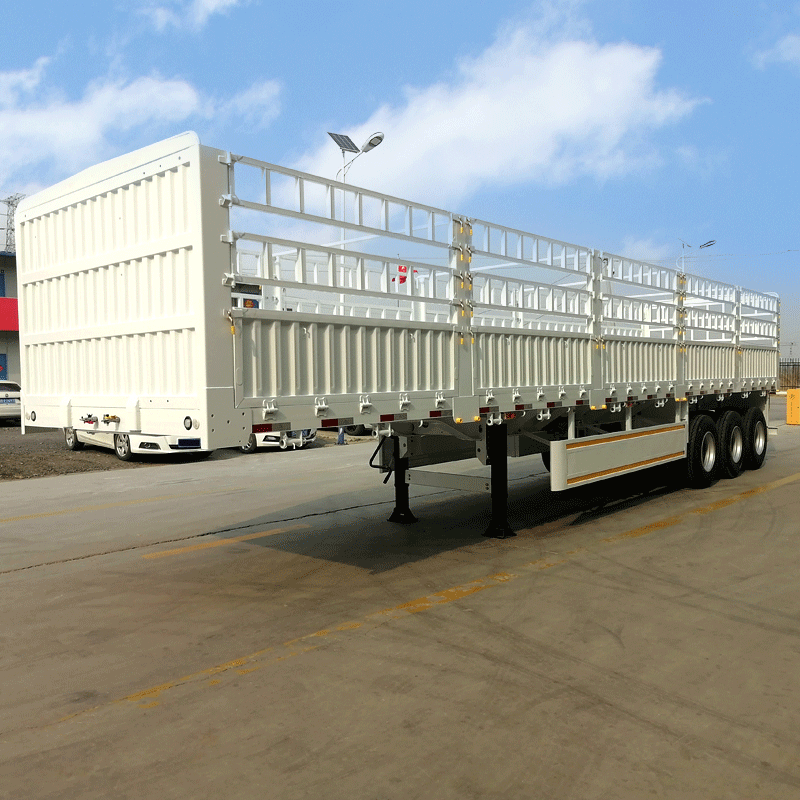

2 Axle Fence Trailer for Sale
The 2 axle fence semi trailer has a high carrying capacity and can transport goods with a weight of several tons or even a dozen tons. 2 axle fence semi trailers are made of high-intensity materials, such as special steel or aluminum alloys to ensure the solidity and durability of the structure. Dual-axis design of 2 axle fence semi trailer helps to diversify weight, ensure that ground loads are evenly distributed evenly during transportation, reducing pressure on the ground. This design of 2 axle fence semi trailer is not only suitable for flat roads, but also for complex road conditions such as construction venues and mines. The solid structure of 2 axle fence semi trailer can withstand long-term overload transportation and extend the life of the vehicle.
The design of the two-axis fence trailer considers fuel economy. The application and streamlined design of lightweight materials help reduce wind resistance, thereby reducing fuel consumption. In addition, advanced hydraulic systems and suspension systems reduce the energy loss of vehicles during transportation and further improve fuel efficiency. The design of the two-axis fence trailer makes the loading and unloading goods extremely convenient. The fence on both sides of the vehicle and the rear can be easily opened to form a completely open platform, which is convenient for the fast loading and unloading of the goods. This design of fence trailer is particularly suitable for frequent loading and unloading goods, reducing loading and unloading time and cost, and improving the overall transportation efficiency.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

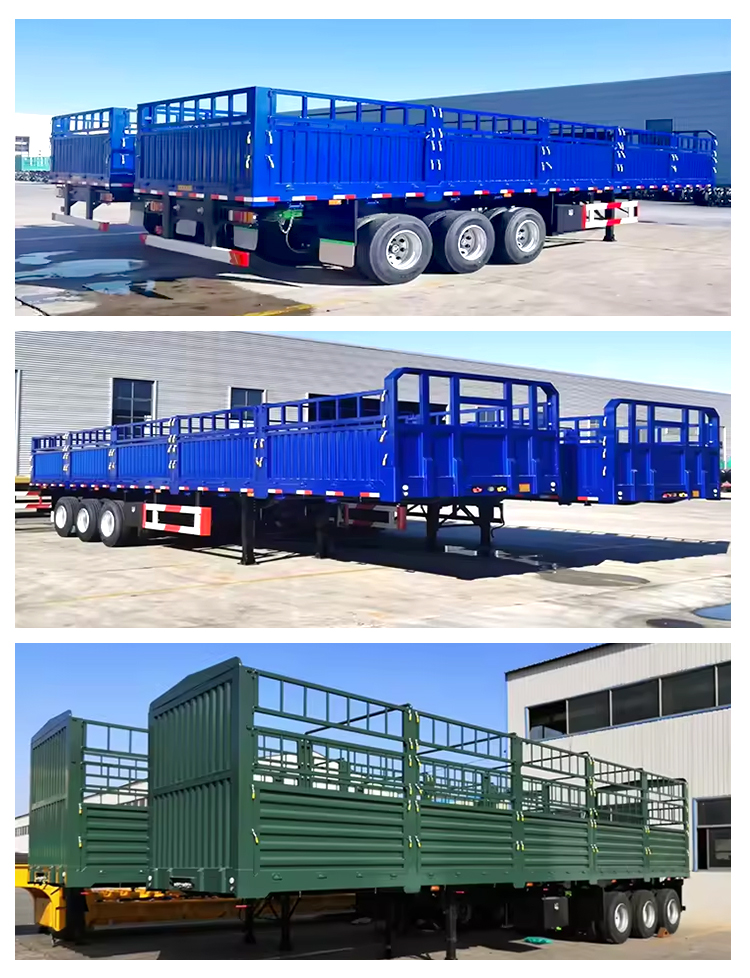

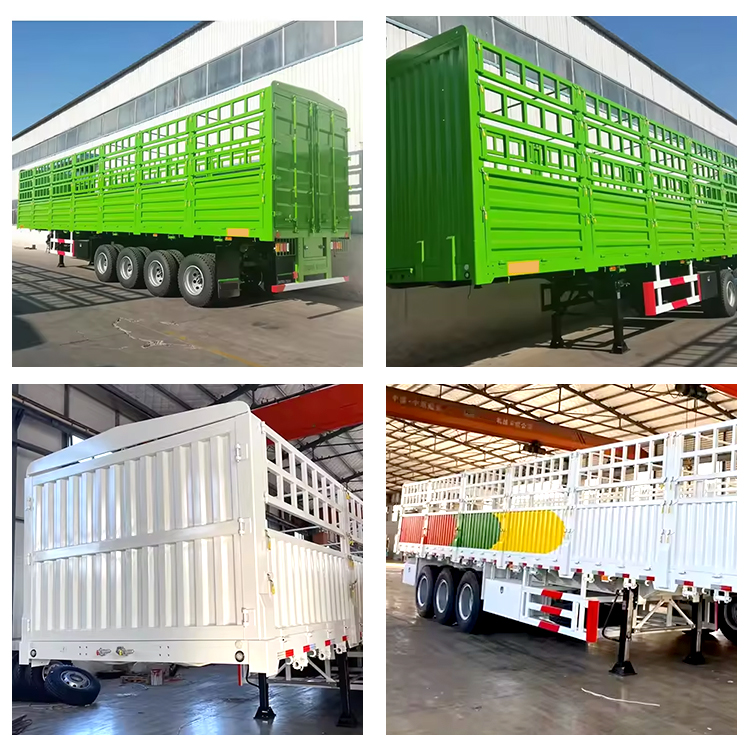

Detailed Pictures:
FAQ
What types of cargo are flatbed stake semi-trailers suitable for?
Flatbed stake semi-trailers are ideal for transporting goods such as steel, timber, stone, and mechanical equipment. Their open stake design facilitates easy loading and unloading, while providing excellent ventilation and visibility, making them a versatile choice for logistics transportation.
What is the load capacity of flatbed stake semi-trailers?
Our flatbed stake semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy cargo with ease and ensuring safe and reliable transportation every time.
Is the body material of flatbed stake semi-trailers durable?
The body is primarily made of high-strength steel, featuring anti-rust treatment and reinforced design, which provide exceptional pressure resistance and durability. Whether for long-distance transportation or harsh environments, they deliver outstanding performance.
Are flatbed stake semi-trailers suitable for long-distance transportation?
Absolutely! Our flatbed stake semi-trailers undergo rigorous load testing and fatigue testing, ensuring stability and safety during long-distance transportation. Whether for cross-province or cross-border transportation, they are up to the task!
How is after-sales service handled if issues arise with flatbed stake semi-trailers?
We offer a lifetime warranty on the main beam. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
