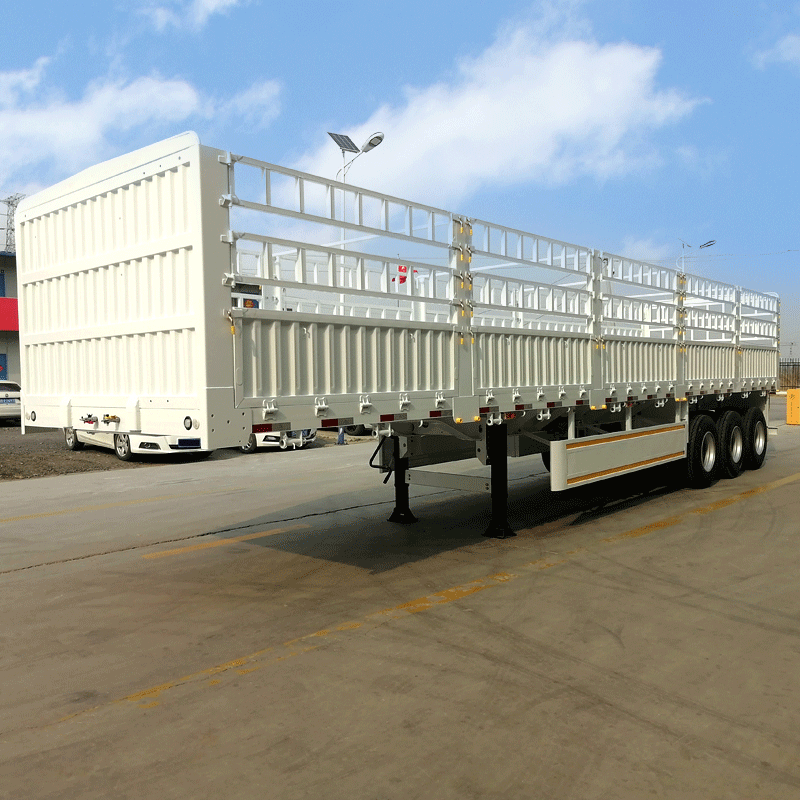

3 Axles Stake Fence Cargo Semi Trailer
The three-axis design of bulk cargo semi trailer improves the side wall fence trailer's load-bearing capacity, enabling it to transport more goods, reduce transportation frequency, and improve efficiency.
The layout of three axles ensures the stability of the side wall fence trailer during driving, especially under heavy loads, reducing bumps and improving driving safety.
The open warehouse rack design of bulk cargo semi trailer facilitates the loading and unloading of goods by forklifts and other equipment, shortening loading and unloading time and improving operational efficiency.
Bulk cargo semi trailer, despite the high initial investment, the overall transportation cost is relatively low due to its efficient carrying capacity and reduced transportation frequency, resulting in good economic benefits.
The three-axis bulk cargo semi trailer consists of the main parts such as frames, wheels, shafts, warehouses, and chassis.The frame is a high -strength steel structure and can withstand heavy load. Configure three axes, disperse the body weight, improve stability and carrying capacity, and reduce the risk of single-axis overload.
The warehouse part of bulk cargo semi trailer is usually detachable or active design, which can adapt to goods of different sizes and shapes. The goods are safer during transportation. Bulk cargo semi trailer can usually carry more than 30 tons of goods, suitable for transportation of commodities and heavy equipment.
The three -axis configuration makes the vehicle more stable when driving, reducing the risk of tilt and rollover, and adapting to various road conditions. Bulk cargo semi trailer can transport various types of goods, such as architectural materials, machinery and equipment, agricultural products, etc., and the barriers are more loading and unloading.
3 Axles Stake Fence Cargo Semi Trailer
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

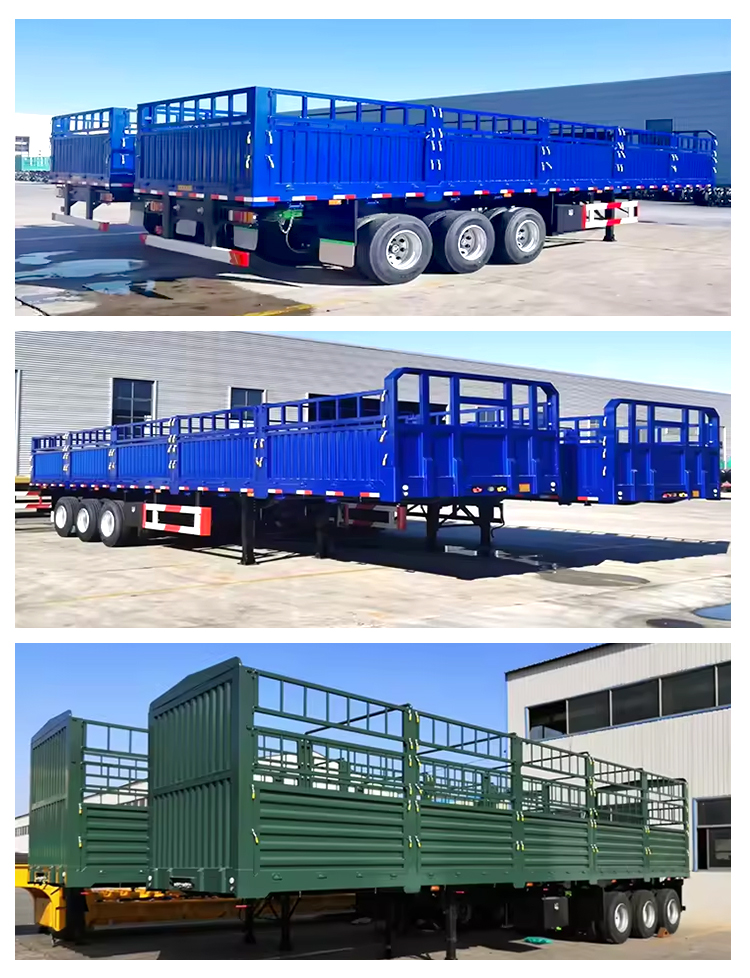

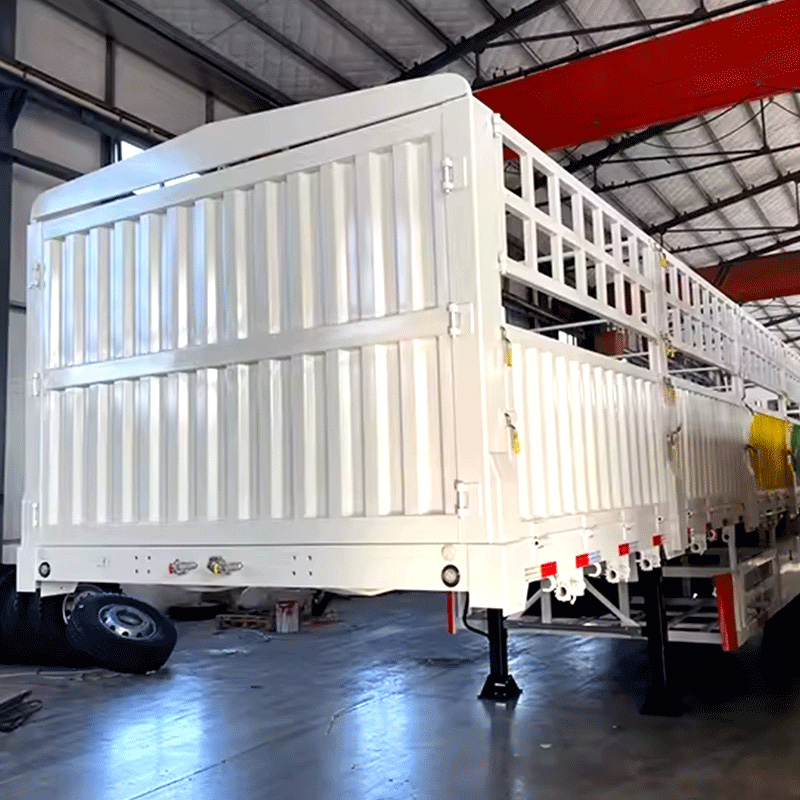

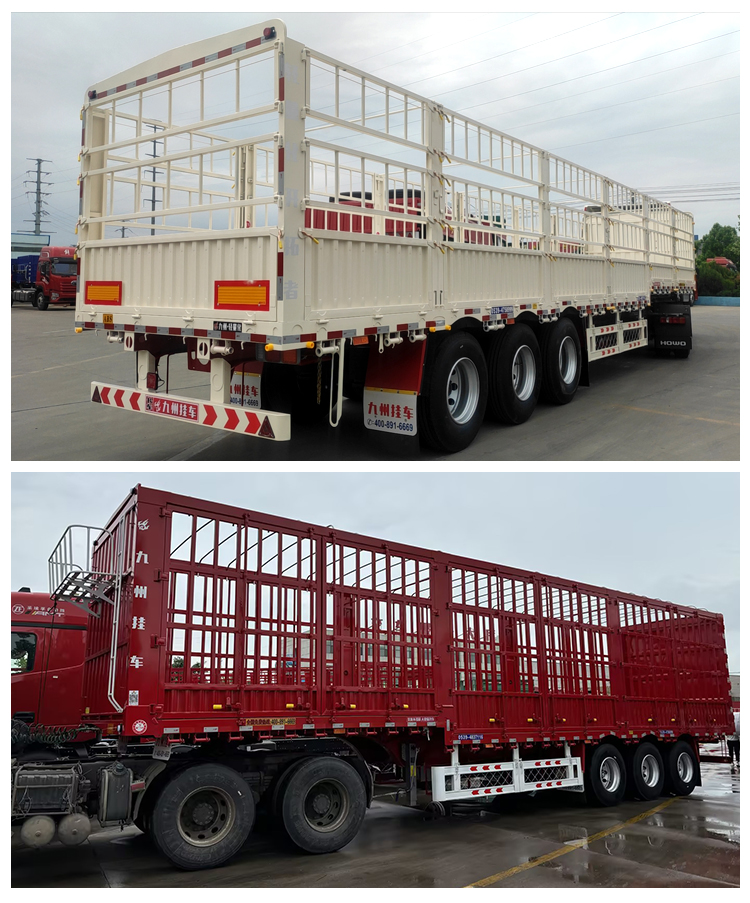

Detailed Pictures:
FAQ
What types of cargo are flatbed stake semi-trailers suitable for?
Flatbed stake semi-trailers are ideal for transporting goods such as steel, timber, stone, and mechanical equipment. Their open stake design facilitates easy loading and unloading, while providing excellent ventilation and visibility, making them a versatile choice for logistics transportation.
What is the load capacity of flatbed stake semi-trailers?
Our flatbed stake semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy cargo with ease and ensuring safe and reliable transportation every time.
Is the body material of flatbed stake semi-trailers durable?
The body is primarily made of high-strength steel, featuring anti-rust treatment and reinforced design, which provide exceptional pressure resistance and durability. Whether for long-distance transportation or harsh environments, they deliver outstanding performance.
Are flatbed stake semi-trailers suitable for long-distance transportation?
Absolutely! Our flatbed stake semi-trailers undergo rigorous load testing and fatigue testing, ensuring stability and safety during long-distance transportation. Whether for cross-province or cross-border transportation, they are up to the task!
How is after-sales service handled if issues arise with flatbed stake semi-trailers?
We offer a lifetime warranty on the main beam. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
