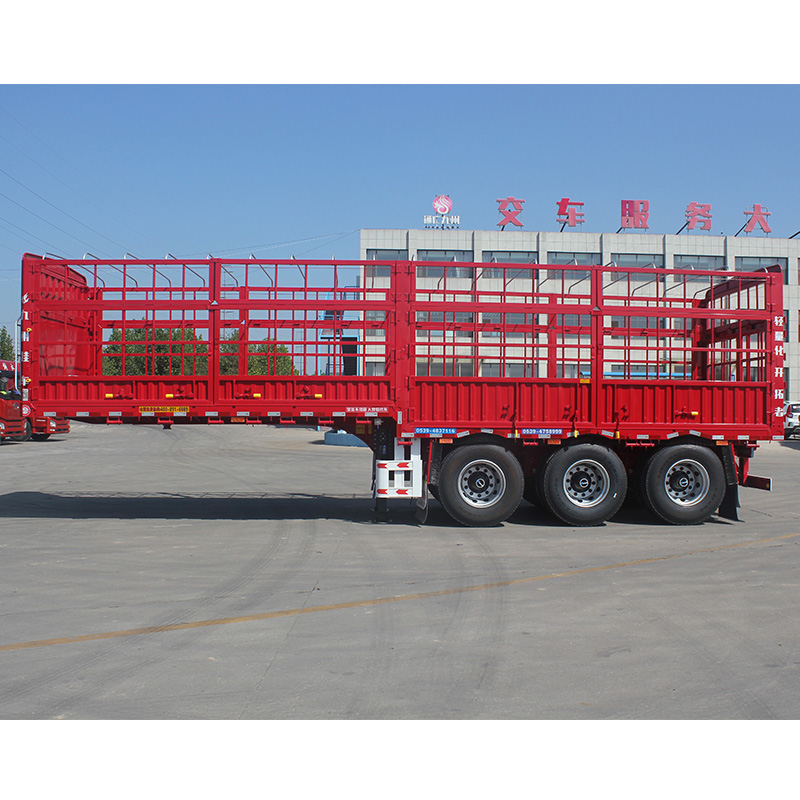

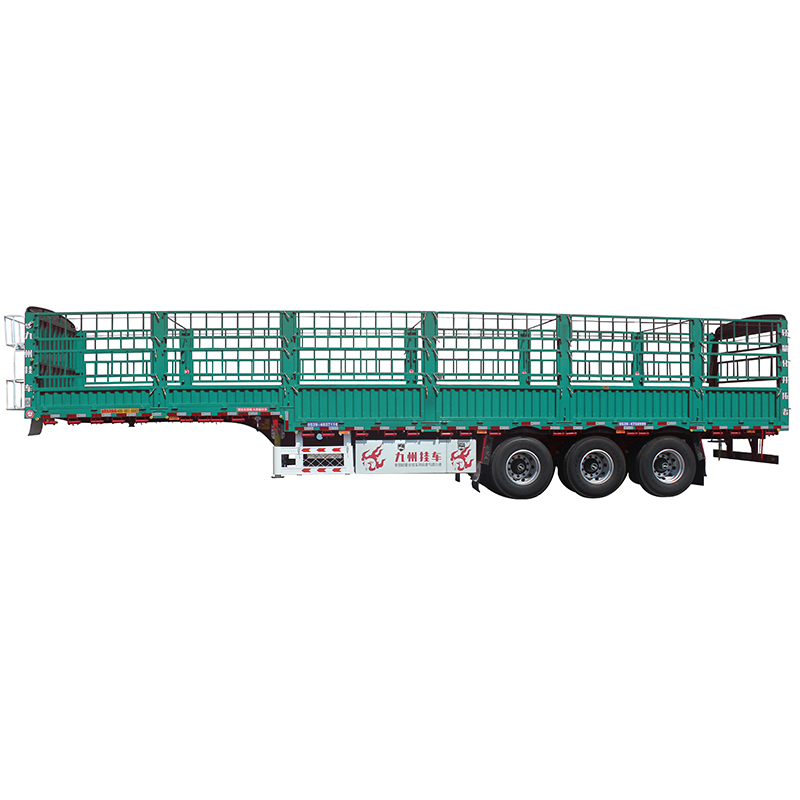

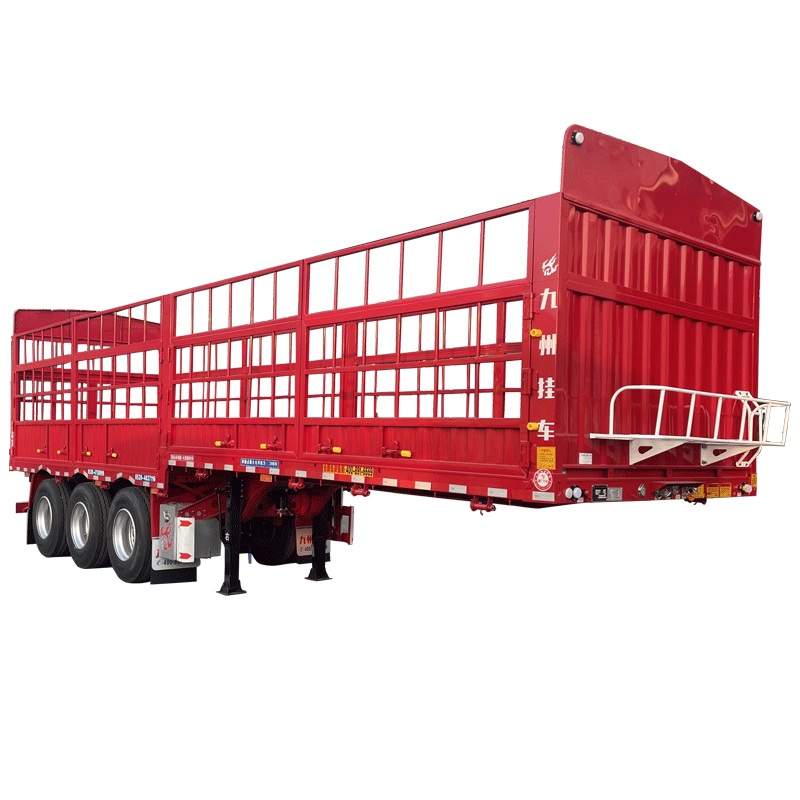

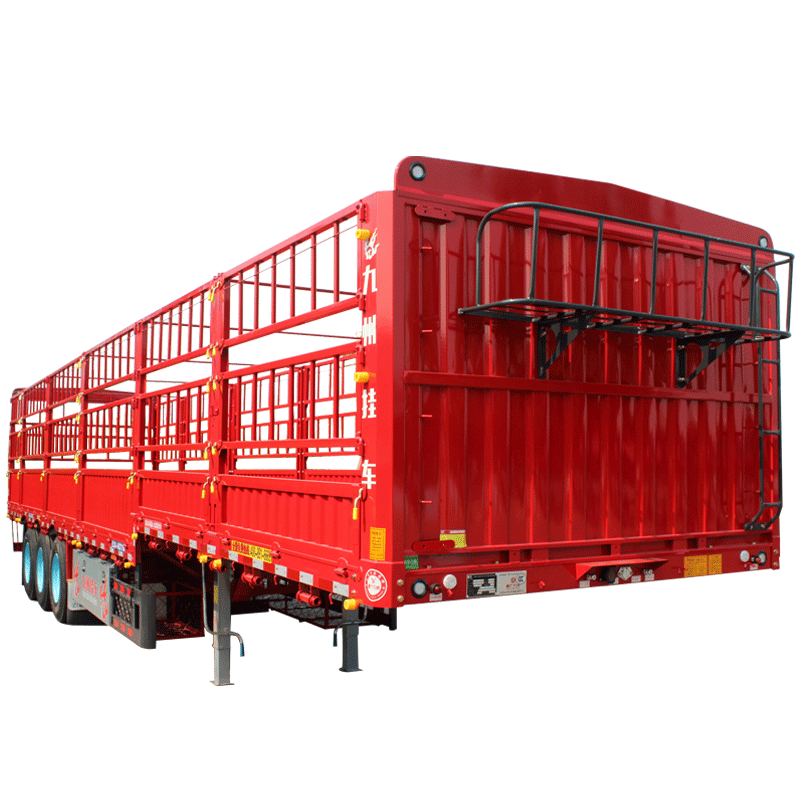

40 Feet Fence Semi Trailer
The fence can adjust the height and layout as needed, suitable for transporting different sizes and shapes, which improves the flexibility and adaptability of the vehicle.
The fence semi trailer design can effectively prevent the damage caused by wind, rain, or other external factors during transportation, and provide a certain degree of protection.
The structure is strong and can carry larger weights, suitable for transportation of medium-weight and bulk goods.
The fence semi trailer made with high-quality steel, combined with advanced technology and strict quality control to ensure the durability and reliability of the vehicle.
The fence semi trailer lock adopts the anti-detachment design, making the lock more powerful and more convenient to turn on.
The rich front dragon door frame selection can meet the various needs of customers.
The 40 feet fence semi trailer is a high-performance logistics solution designed specifically for medium to long distance transportation. The 40 feet fence semi trailer combines a sturdy and durable structure with flexible loading capacity, suitable for transporting various bulk goods, packaged goods, and items that require certain protection. The 40 feet fence semi trailer is made of high-quality steel frame structure, equipped with a lifting top and two side openable warehouse grates, which facilitate fast loading and unloading of goods, while providing necessary shelter to protect goods from weather effects. The bottom plate is made of high-strength wear-resistant steel plate, ensuring good flatness and bearing capacity even after long-term use. The fence semi trailer reduces its own weight through reasonable design and use of lightweight materials, thereby increasing cargo capacity, reducing fuel consumption, and improving economic benefits.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

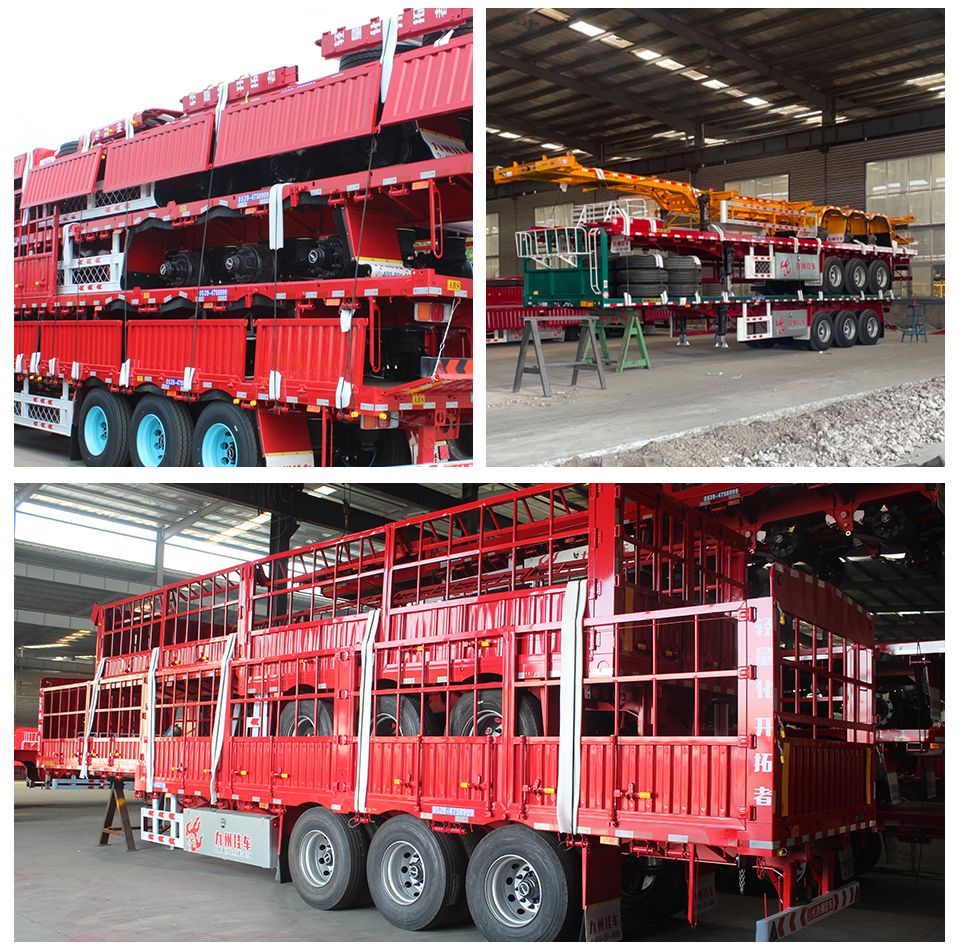

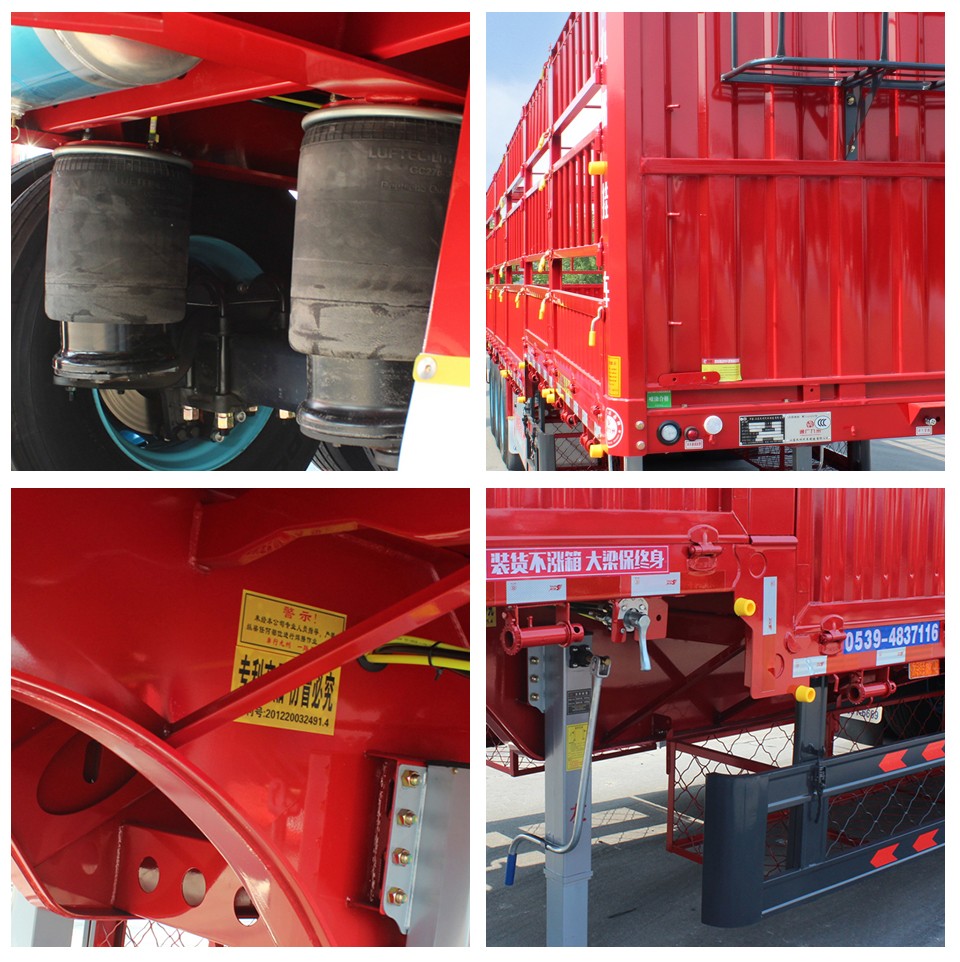

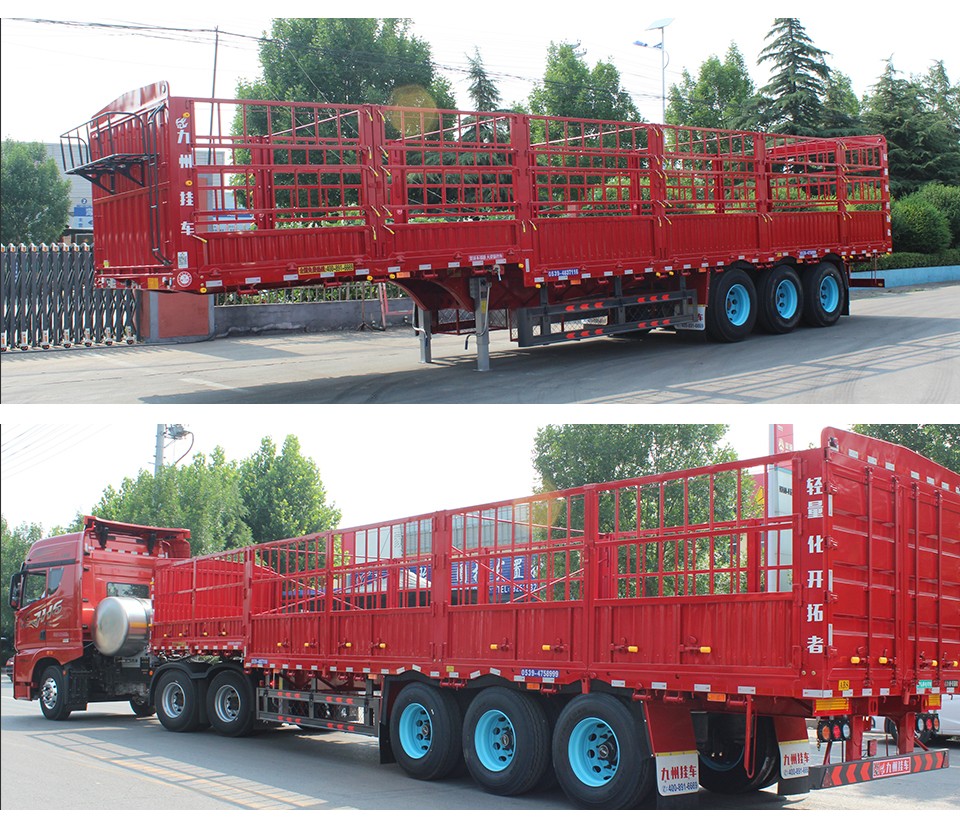

Detailed Pictures:
FAQ
What types of cargo are flatbed stake semi-trailers suitable for?
Flatbed stake semi-trailers are ideal for transporting goods such as steel, timber, stone, and mechanical equipment. Their open stake design facilitates easy loading and unloading, while providing excellent ventilation and visibility, making them a versatile choice for logistics transportation.
What is the load capacity of flatbed stake semi-trailers?
Our flatbed stake semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy cargo with ease and ensuring safe and reliable transportation every time.
Is the body material of flatbed stake semi-trailers durable?
The body is primarily made of high-strength steel, featuring anti-rust treatment and reinforced design, which provide exceptional pressure resistance and durability. Whether for long-distance transportation or harsh environments, they deliver outstanding performance.
Are flatbed stake semi-trailers suitable for long-distance transportation?
Absolutely! Our flatbed stake semi-trailers undergo rigorous load testing and fatigue testing, ensuring stability and safety during long-distance transportation. Whether for cross-province or cross-border transportation, they are up to the task!
How is after-sales service handled if issues arise with flatbed stake semi-trailers?
We offer a lifetime warranty on the main beam. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
