60 Ton Fence Cargo Trailer
The tri axle fence semi trailer has a very high bearing capacity and can transport cargo with a weight of 60 tons. Tri axle fence semi trailers are made of high-intensity materials, such as special steel or aluminum alloys to ensure the solidity and durability of the structure. The multi-axis design of tri axle fence semi trailer helps to disperse weight, ensure that the ground load is evenly distributed evenly during transportation to reduce pressure on the ground. This design of tri axle fence semi trailer is not only suitable for flat roads, but also for complex road conditions such as construction venues and mines. The design of the 60 -ton fence cargo trailer focuses on simple structure and easy maintenance.The main components of the vehicle are easy to check and replace, which reduces the maintenance time and cost.
The fence trailer is made of high-strength materials to ensure that the vehicle structure is strong and durable. This solid structure of fence trailer can withstand long-term overload transportation and extend the life of the vehicle. The fence trailer's framework is carefully designed to ensure that it remains stable when to withstand the maximum load. In addition, the strong structure of the fence trailer also helps reduce maintenance costs, because a solid structure means less maintenance and longer service life.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

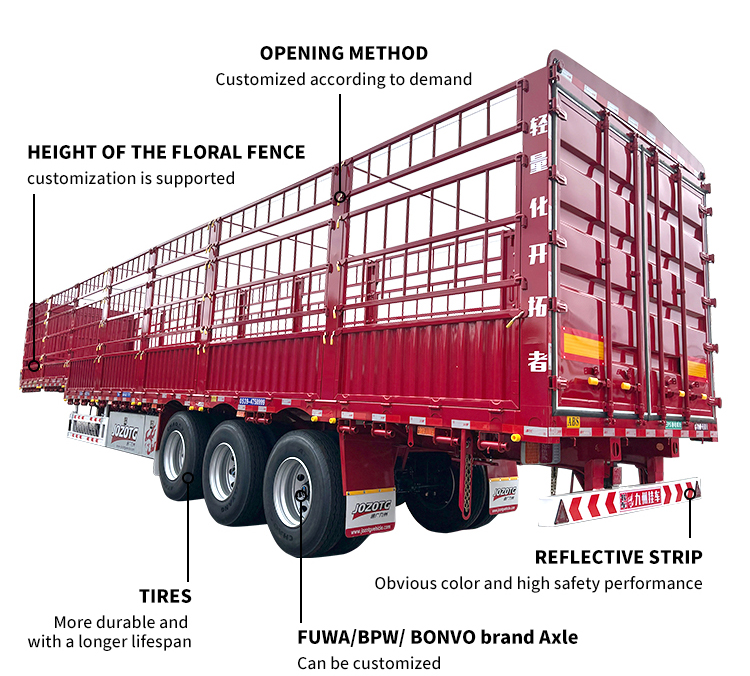

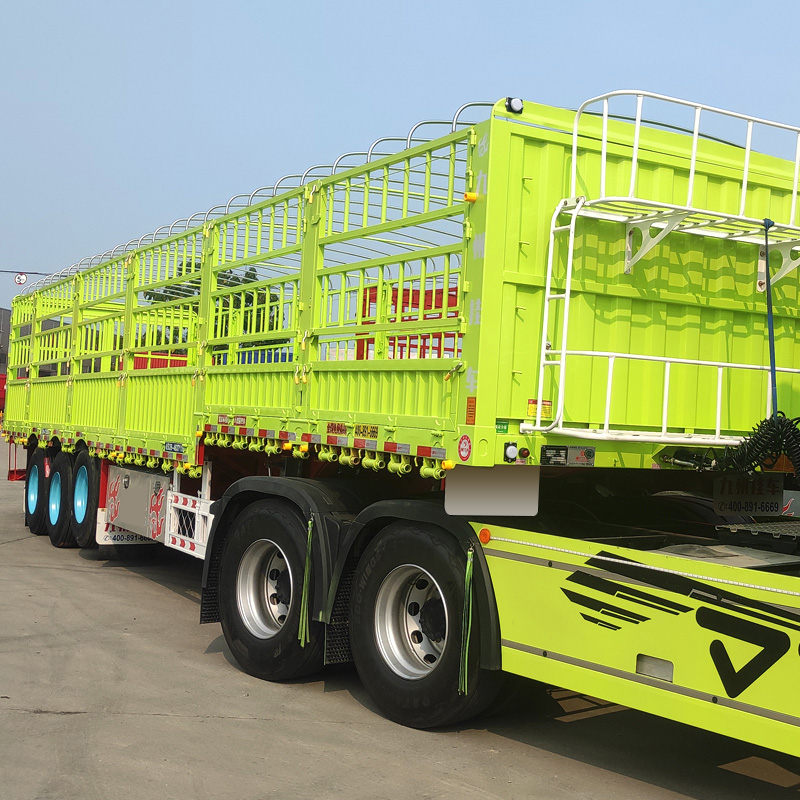

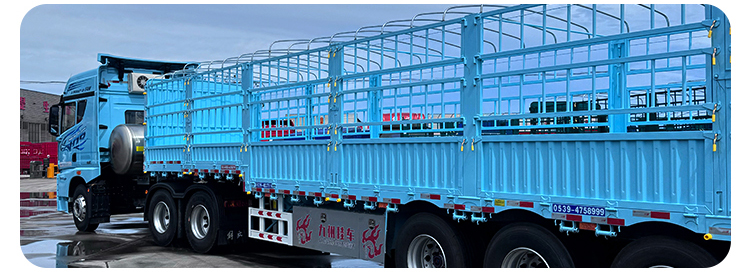

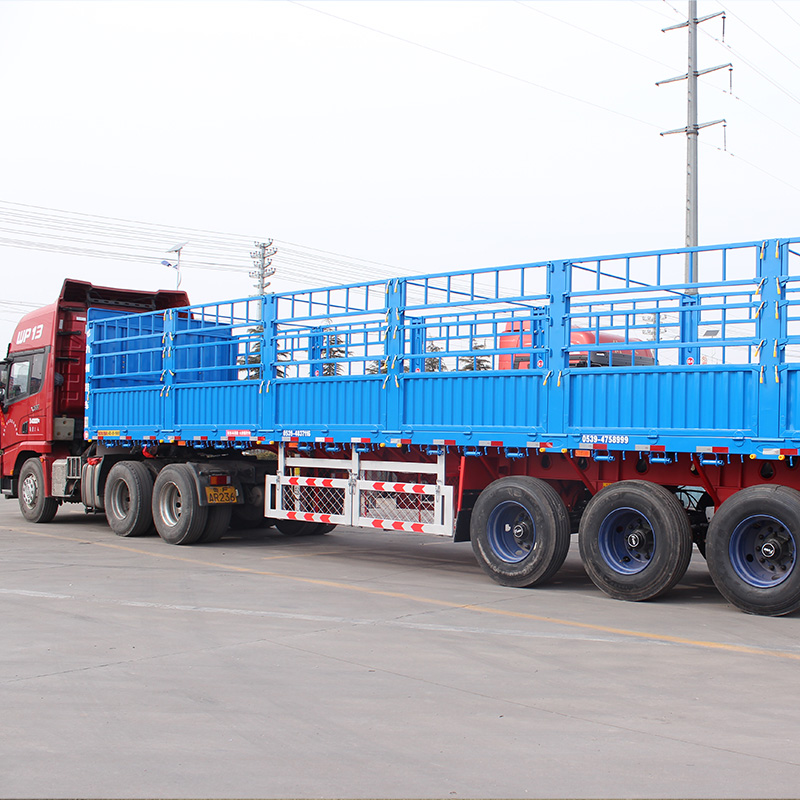

Detailed Pictures:
FAQ
What types of cargo are flatbed stake semi-trailers suitable for?
Flatbed stake semi-trailers are ideal for transporting goods such as steel, timber, stone, and mechanical equipment. Their open stake design facilitates easy loading and unloading, while providing excellent ventilation and visibility, making them a versatile choice for logistics transportation.
What is the load capacity of flatbed stake semi-trailers?
Our flatbed stake semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy cargo with ease and ensuring safe and reliable transportation every time.
Is the body material of flatbed stake semi-trailers durable?
The body is primarily made of high-strength steel, featuring anti-rust treatment and reinforced design, which provide exceptional pressure resistance and durability. Whether for long-distance transportation or harsh environments, they deliver outstanding performance.
Are flatbed stake semi-trailers suitable for long-distance transportation?
Absolutely! Our flatbed stake semi-trailers undergo rigorous load testing and fatigue testing, ensuring stability and safety during long-distance transportation. Whether for cross-province or cross-border transportation, they are up to the task!
How is after-sales service handled if issues arise with flatbed stake semi-trailers?
We offer a lifetime warranty on the main beam. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
