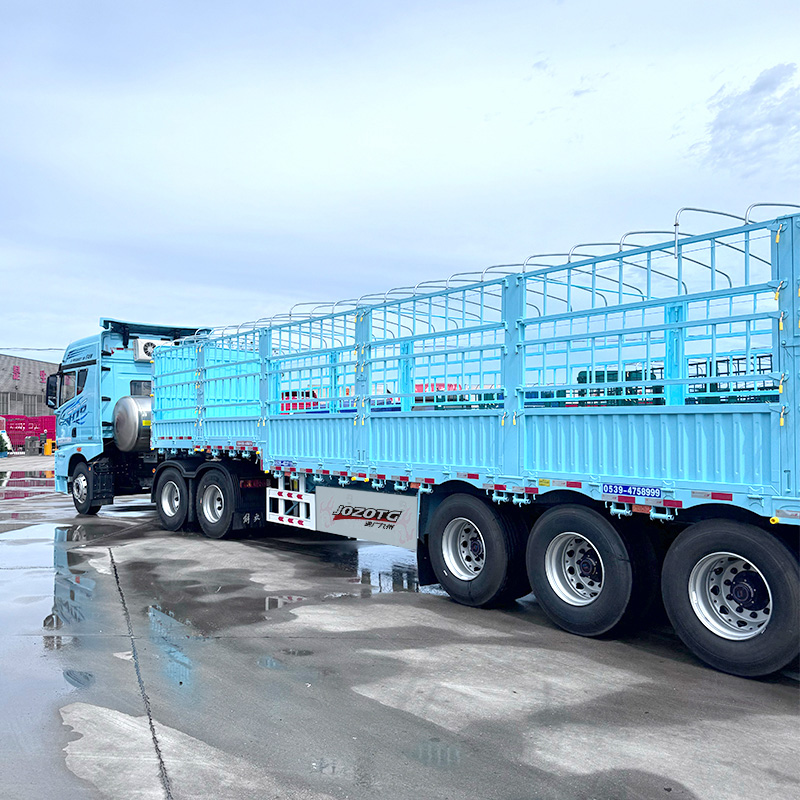

80 Tons Fence Cargo Trailer
Fence trailers can be customized with additional features such as sliding tarpaulins, rear tailgates, or lift gates to enhance cargo protection and handling capabilities, making them suitable for a variety of hauling applications.
In comparison to fully enclosed trailers, fence semi trailers can offer a cost-effective solution for transporting a diverse range of goods without compromising on security or protection.
Fence semi trailers can be utilized for various applications beyond traditional cargo transport, such as hauling construction materials, agricultural products, equipment, and other oversized or irregularly shaped items.
The 80 Tons Fence Cargo Trailer is a heavy-duty transport unit designed for hauling large quantities of goods securely and efficiently. This 80 tons fence cargo railer is specifically built to handle substantial weights, offering a robust structure that can accommodate up to 80 tons of cargo. Built with high-strength materials, this 80 tons fence Cargo Trailer is durable and able to withstand the rigors of heavy-duty transportation tasks. By enabling the secure transport of large quantities of goods in a single trip, the 80 tons fence cargo trailer helps improve transportation efficiency and reduce the number of trips needed to move heavy loads.
80 Tons Fence Cargo Trailer
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |

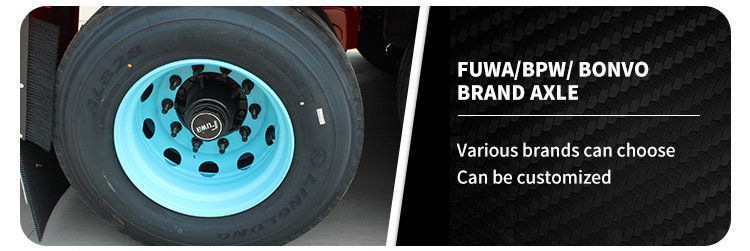

3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |

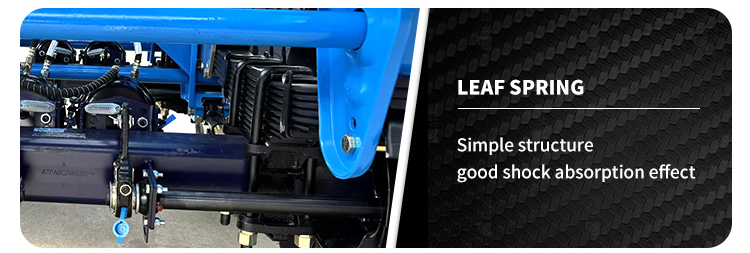

Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |

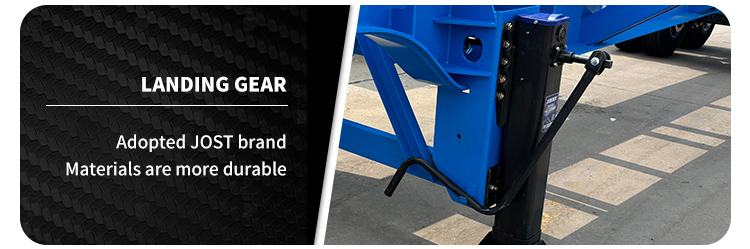

Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Detailed Pictures:
FAQ
What types of cargo are flatbed stake semi-trailers suitable for?
Flatbed stake semi-trailers are ideal for transporting goods such as steel, timber, stone, and mechanical equipment. Their open stake design facilitates easy loading and unloading, while providing excellent ventilation and visibility, making them a versatile choice for logistics transportation.
What is the load capacity of flatbed stake semi-trailers?
Our flatbed stake semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy cargo with ease and ensuring safe and reliable transportation every time.
Is the body material of flatbed stake semi-trailers durable?
The body is primarily made of high-strength steel, featuring anti-rust treatment and reinforced design, which provide exceptional pressure resistance and durability. Whether for long-distance transportation or harsh environments, they deliver outstanding performance.
Are flatbed stake semi-trailers suitable for long-distance transportation?
Absolutely! Our flatbed stake semi-trailers undergo rigorous load testing and fatigue testing, ensuring stability and safety during long-distance transportation. Whether for cross-province or cross-border transportation, they are up to the task!
How is after-sales service handled if issues arise with flatbed stake semi-trailers?
We offer a lifetime warranty on the main beam. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
