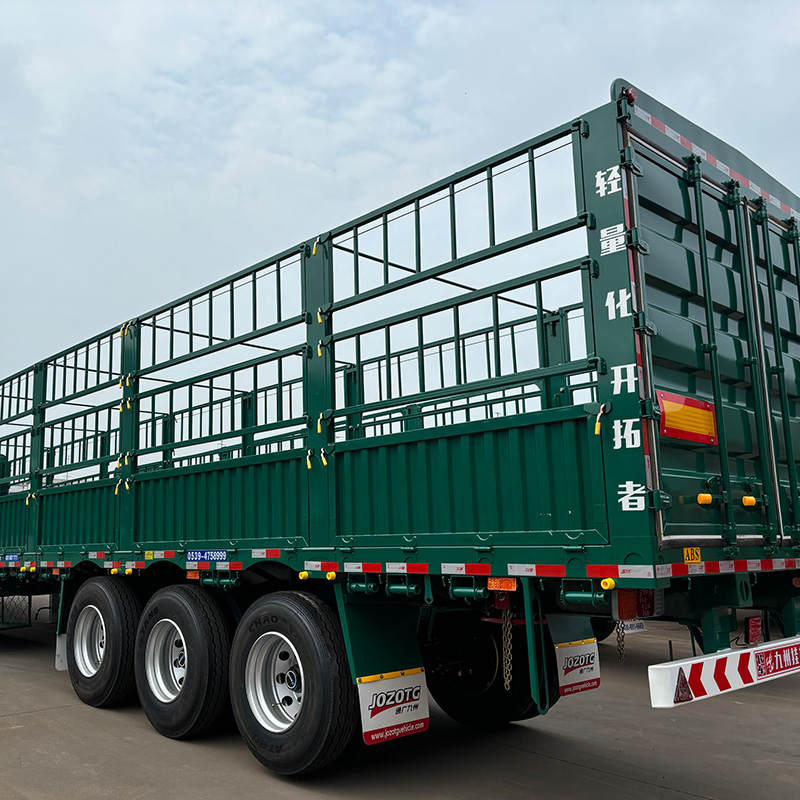

New 12.5M Fence Semi Trailer
The new 12.5m fence semi trailer is highly multifunctional and suitable for transportation of various types of goods. Whether it is bulk goods or packaged goods, such as building materials and agricultural products, 12.5m fence semi trailer can be easily loaded and transported.The open design of the vehicle and the solid fence structure ensure the safety and stability of the goods during transportation.
The length of 12.5 meters provides sufficient loading space and can load a large amount of goods. 12.5m fence semi trailers are made of high-intensity materials, such as special steel or aluminum alloys to ensure the solidity and durability of the structure. The multi-axis design of 12.5m fence semi trailer helps to disperse weight, ensure that the ground load is evenly distributed evenly during transportation, reducing pressure on the ground, and suitable for various transportation tasks.
Fence trailer for sale is made of high -strength materials to ensure strong and durable vehicle structure.This solid structure can withstand long-term overload transportation and extend the life of the vehicle. The fence trailer for sale's framework is carefully designed to ensure that it remains stable when to withstand the maximum load. In addition, the strong structure of the fence trailer for sale also helps reduce maintenance costs, because a solid structure means less maintenance and longer service life.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW Brand | |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Bottom Plate is 16mm; Material: Q345B Steel | |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

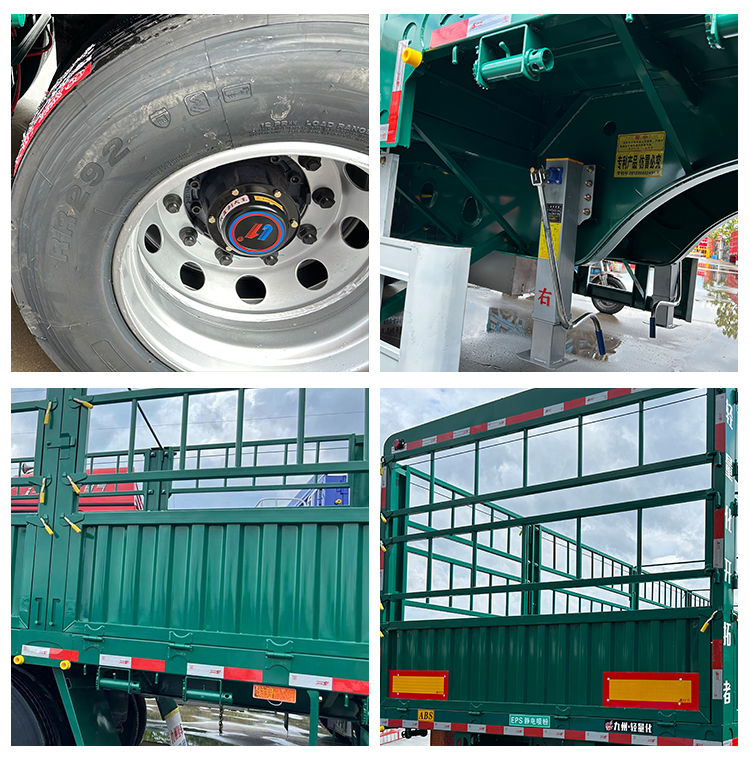

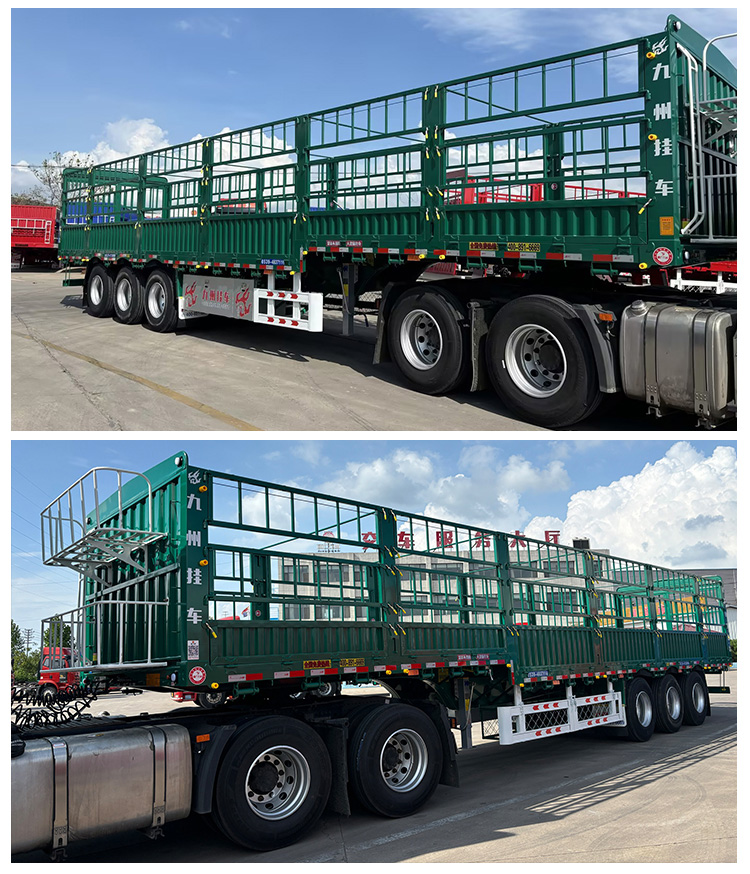

Detailed Pictures:
FAQ:
1.Are you manufacturer or trading company?
Yes, we are manufacturer, and have 37 years manufacturing experience,is the biggest trailer manufacturer in China
2.If you can custom design for us?
Yes, we can specialied custom design for you according to your requirments.
3.After-sale services
We have 24hours online after-sale services, response immediately,and we have the most professional engineer in China, the best services.
4.How is the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you have any questions, please feel free to contact us.
