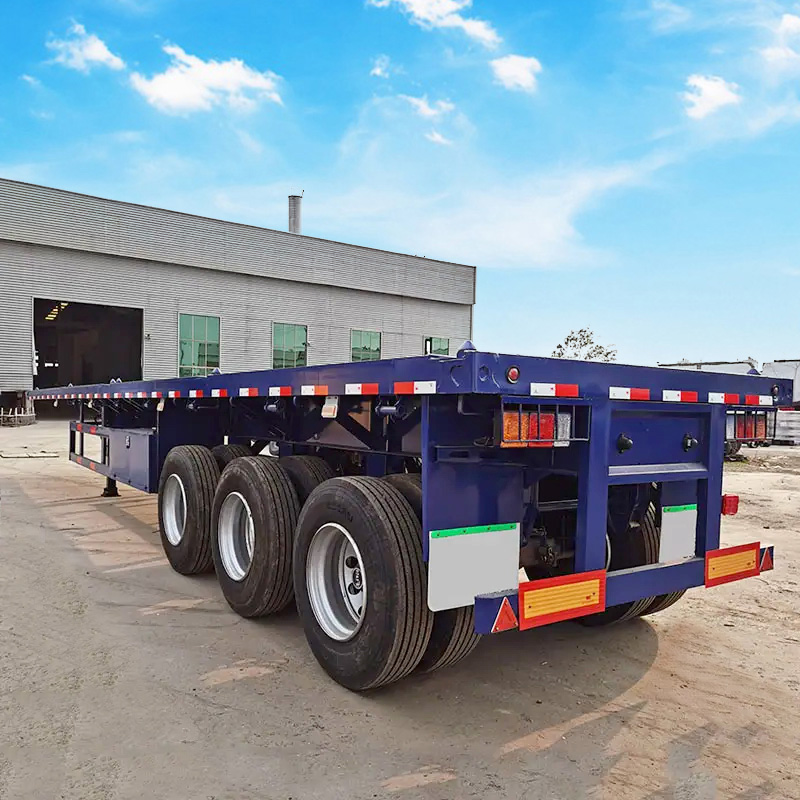

20ft Flatbed Container Trailer
The design of the 20ft flatbed container trailer focuses on the simple structure and easy maintenance. The main components of the 20ft flatbed container trailer are easy to check and replace, which reduces the maintenance time and cost. In addition, vehicles usually use standardized parts, which means that the cost of replacing parts is relatively low. This design of 20ft flatbed container trailer not only reduces the cost of maintenance, but also reduces the maintenance time of the maintenance and improves the availability of the vehicle.Regular maintenance and maintenance can ensure the long-term stable operation of the 20ft flatbed trailer and extend the service life.
The three-axis 20ft flatbed trailer can transport various types of goods from standard ISO containers to non-standard size cargo. No matter what type of cargo, the three-axis 20ft flatbed trailer can provide appropriate transportation solutions. This adaptability is due to the design of the 20ft flatbed trailer considering various transportation needs.
Parameter:
Overall (L*W*H) | 12500*2500*1530mm |
Frame | Material:High strength low alloy Q345 steel |
Main beam | Main beam height:500 mm |
Floor | 3 mm checkered plate |
Side beam: | 16# channel steel |
3*13 tons FUWA axles | |
Tire | 12R22.5 Tire,12 pcs |
Rim | 900*22.5, 12 pcs |
Braking System | 6 Double-chamber , Duel Line Brake System |
Suspension | Mechanical spring suspension |
King Pin | 2" (50#) or 3.5"(90#) high tensile steel bolted type |
Landing Leg | 28T landing leg |
Twist Lock | 12 pcs |
Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
Color | Any color will be available |
Packing detail | Container ships |

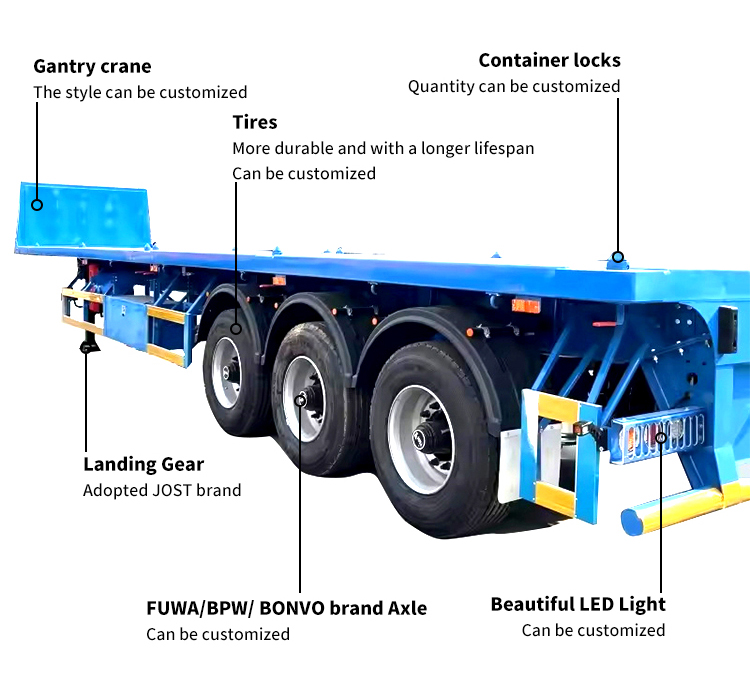

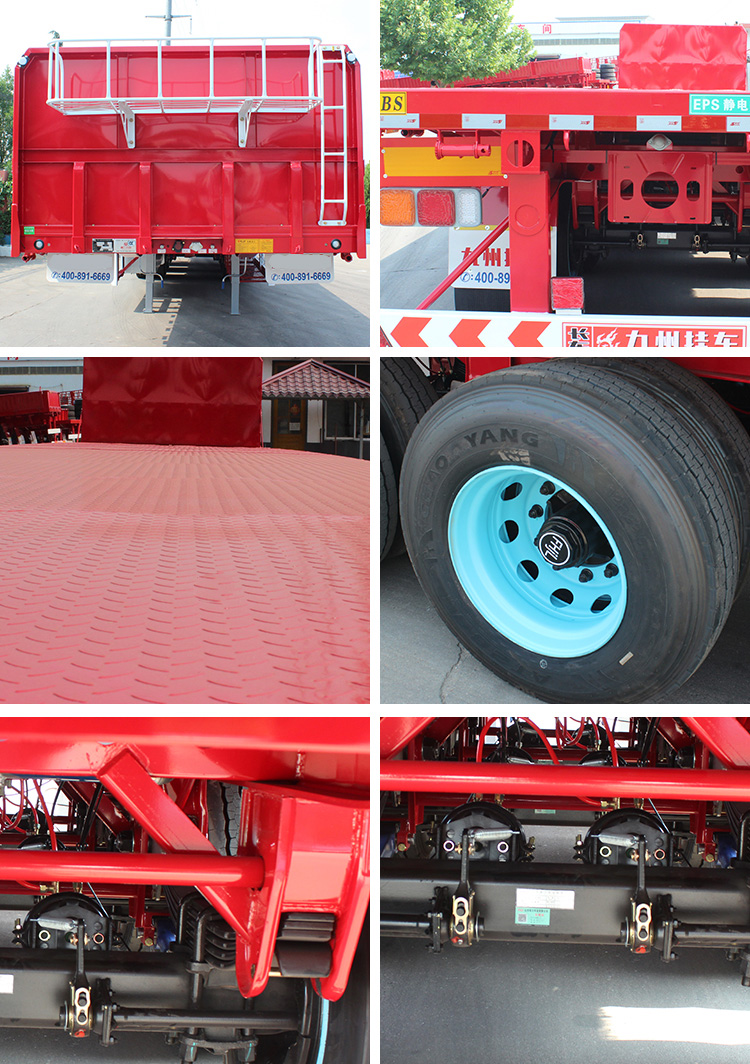

Detailed Pictures:
FAQ
What are the main uses of a flatbed semi-trailer?
Flatbed semi-trailers are suitable for transporting various large equipment, heavy machinery, steel, building materials, and other goods. Their flat cargo deck design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a flatbed semi-trailer?
Our flatbed semi-trailers are made of high-strength steel with a maximum load capacity of up to 60 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a flatbed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The cargo deck surface is treated with anti-slip processing to ensure the stability and safety of goods during transportation.
Is a flatbed semi-trailer suitable for long-distance transportation?
Yes, our flatbed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the flatbed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
