120 ton Gooseneck Lowboy Semi Trailer
The lowboy gooseneck trailers can carry very heavy goods, such as heavy machinery and equipment, large building components, etc.
The design of the lowboy gooseneck trailer semi trailer makes the loading position of the cargo lower, which reduces the focus of the cargo and increases the stability in the transportation process.
The lowboy gooseneck trailers can adapt to various complex road conditions and terrain, such as mountainous areas and urban streets.
The goose neck design of the lowboy semi trailer for sale provides greater flexibility, making it easier for vehicles to operate in turning and narrow spaces.
lowboy equipment trailers are designed with low tablets, that is, the platform is low in height from the ground, usually lower than ordinary lowboy equipment trailers. Our lowboy equipment trailers can reduce the focus of the cargo and improve the stability and safety of the transportation process. The flat plate design of the lowboy semi trailer for sale is convenient for the use of cranes or other lifting equipment for loading and unloading operations, reducing the loading and unloading time and cost. Lowboy semi trailer for sale is made of high-strength materials, such as special steel or aluminum alloy to ensure that the vehicle structure is strong and durable.
120 ton Gooseneck Lowboy Semi Trailer
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW brand | |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

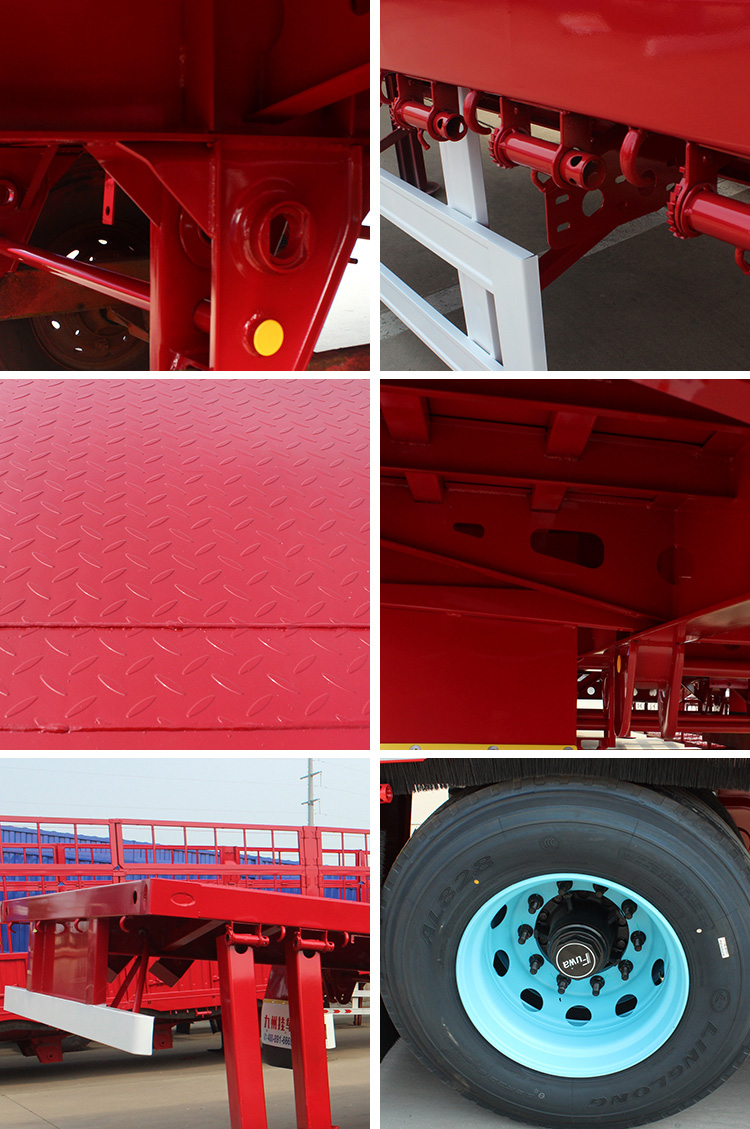

Detailed Pictures:
FAQ
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 50 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
