3 Axle Hydraulic Gooseneck Low Low Bed Trailer
Hydraulic lowbed trailers for Sale are designed to handle a wide variety of heavy and oversized cargo, including construction machinery and industrial equipment.
The low platform of these hydraulic lowbed trailers provide enhanced stability, especially when carrying heavy and oversized loads. The lower center of gravity reduces the risk of tipping over, which is an important safety consideration for transporting large and heavy equipment.
The design of hydraulic lowbed trailers often allows for higher payloads compared to standard trailers due to their sturdier construction and greater stability. This can result in fewer trips required to transport the same amount of cargo, leading to potential cost savings and more efficient transport logistics.
The 3 axle hydraulic lowbed trailers is a heavy-duty specialized hauling equipment designed for transporting exceptionally tall and heavy cargo.
The hydraulic gooseneck feature of hydraulic lowbed trailers allows the front of the trailer to be easily detached and lowered to the ground, forming a ramp for the convenient loading and unloading of heavy machinery and equipment. This hydraulic system of hydraulic lowbed trailers simplifies the process of getting the cargo on and off the trailer, making it especially useful for self-loading and unloading.
Parameter:
Name | |
Overall Size | 13000*3000*1760mm, customization |
Loading weight (KG) | 20-80Tons |
Axle | 13T/16T/20T, FUWA/BPWbrand |
Suspension system | Mechanical/Air suspension |
Main beam | Q345, Beam height 500mm, top plate 16mm, |
Flat platform | 3mm diamond plate |
Tires | 8.25R20 with 1 spare tyre |
Option:12.00R20 radial tyre; 11R22.5 diagonal tyre; | |
Ladder | Spring ladder |
Spare wheel holder | 1 |
Toolbox | 1 |
Landing gear | Standard 28 Tons |
Side guard | Standard |
Paint color | Custom (Polyester paint) |
Packaging | Waxing before departure |

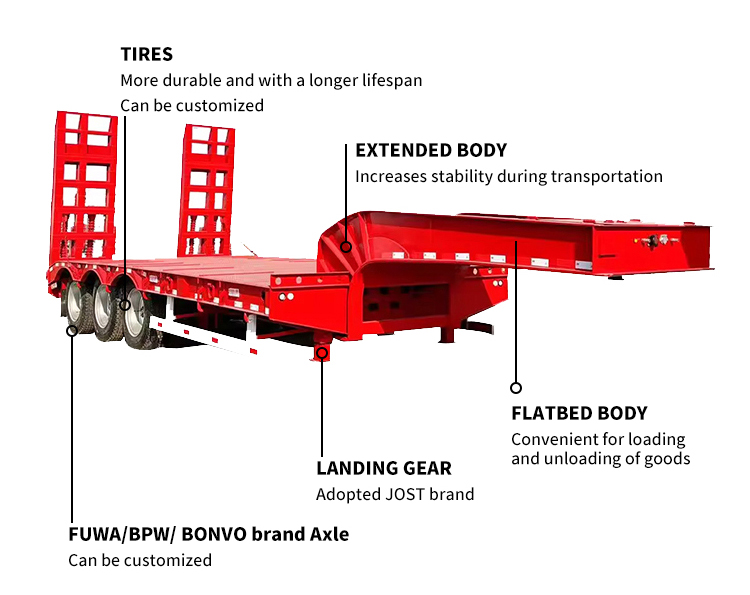

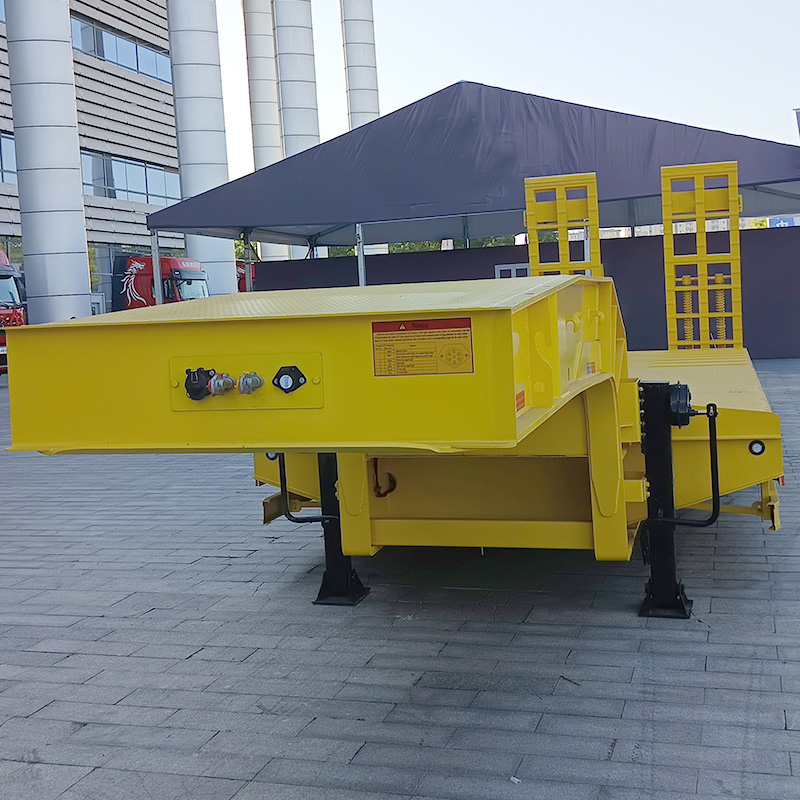

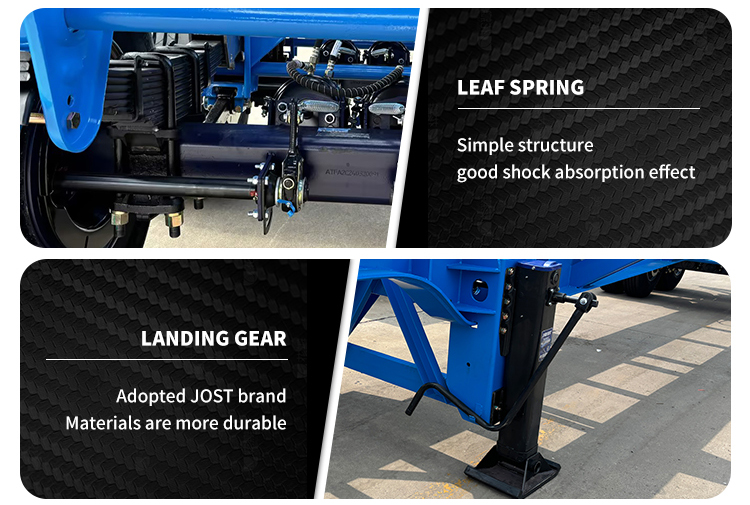

Detailed Pictures:
FAQ
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 120 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
