3 Axle Low Bed Trailer
The design of the low bed semi trailer takes into account fuel economy. The application of lightweight materials and streamlined design helps reduce wind resistance, thereby reducing fuel consumption. In addition, advanced hydraulic and suspension systems reduce energy loss during transportation, further improving fuel efficiency. This design of low bed semi trailer not only helps to save operating costs, but also reduces the impact on the environment.
The three axle lowbed semi trailer is known for its excellent load-bearing capacity and durability, making it an ideal choice for transporting heavy and oversized goods. This model of lowbed semi trailer is made of high-strength and durable raw materials, ensuring the stability and reliability of the lowbed semi trailer under long-term and high load transportation conditions. The three axle 3 axle low bed trailer is made of high-strength materials such as special steel and aluminum alloy, ensuring the robustness and durability of the vehicle. These materials can not only withstand long-term heavy transportation, but also resist various harsh environmental influences, extending the service life of 3 axle low bed trailers. The framework of the low bed trailer has been carefully designed and rigorously tested to maintain stability under maximum load.
Parameter:
Name | Low Bed Semi Trailer |
Overall Size | 13000*3000*1760mm, customization |
Loading weight (KG) | 20-80Tons |
Axle | 13T/16T/20T, FUWA/BPWbrand |
Suspension system | Mechanical/Air suspension |
Main beam | Q345, Beam height 500mm, top plate 16mm, |
Flat platform | 3mm diamond plate |
Tires | 8.25R20 with 1 spare tyre |
Option:12.00R20 radial tyre; 11R22.5 diagonal tyre; | |
Ladder | Spring ladder |
Spare wheel holder | 1 |
Toolbox | 1 |
Landing gear | Standard 28 Tons |
Side guard | Standard |
Paint color | Custom (Polyester paint) |
Packaging | Waxing before departure |

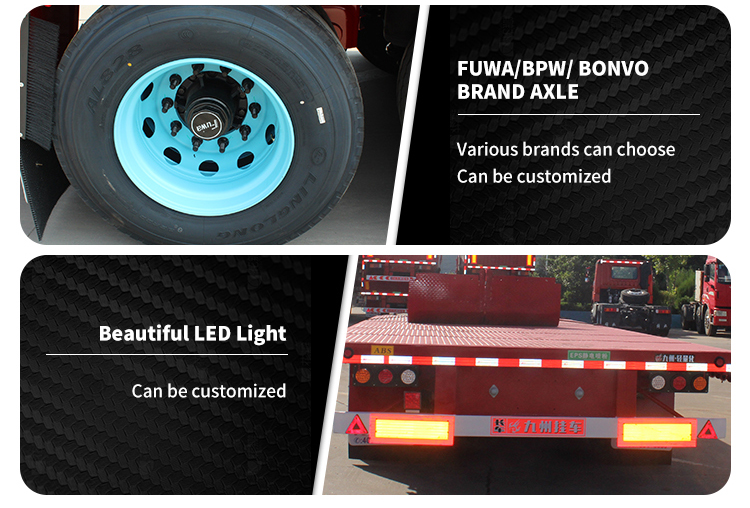

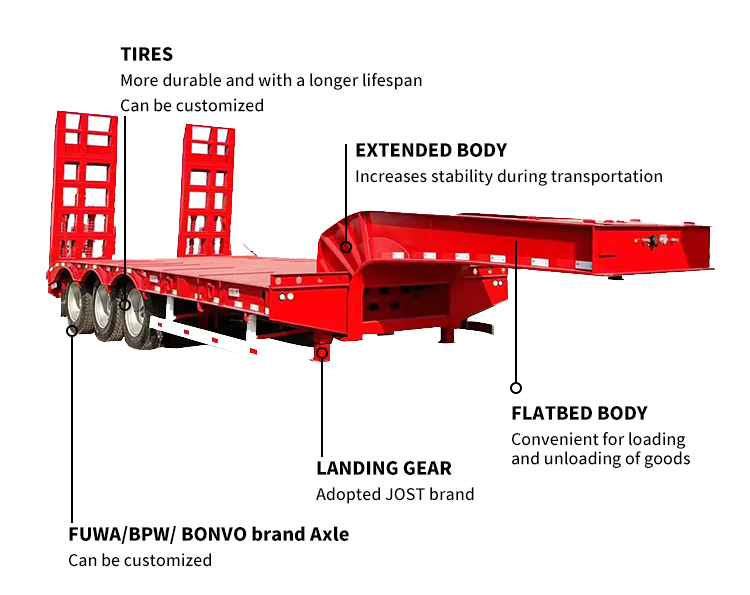

Detailed Pictures:
FAQ
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 120 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
