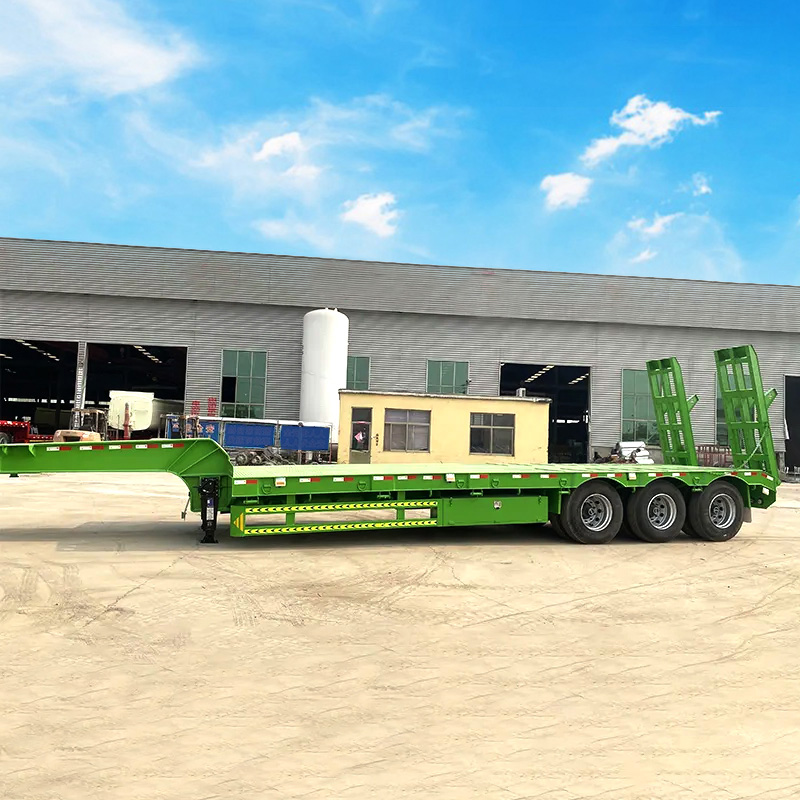

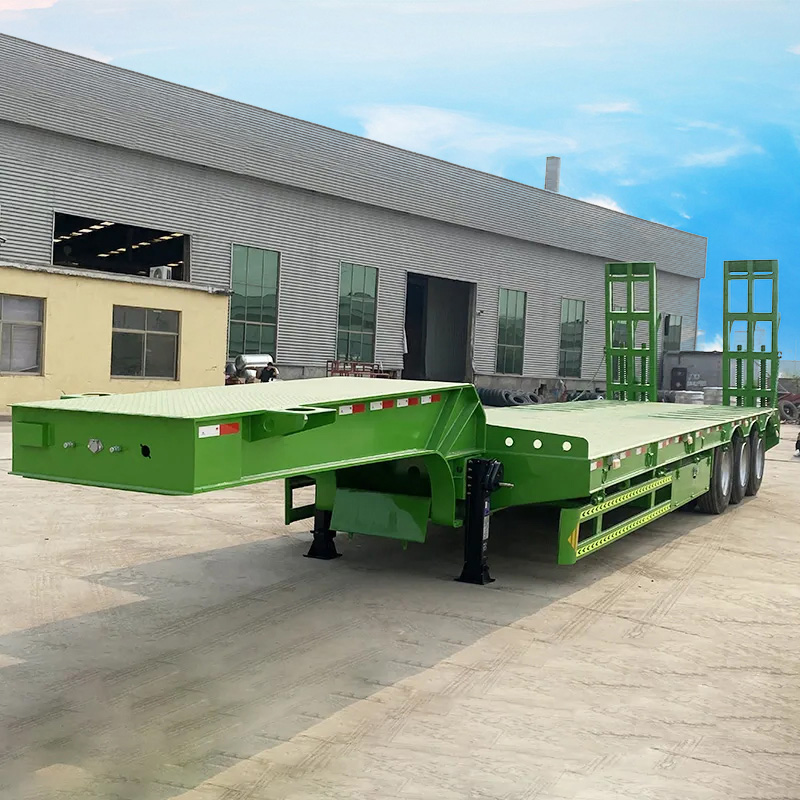

60 Ton Lowbed Semi Trailer
Lowbed semi trailers are usually used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction machinery and other centralized cargo cargo. The lower the center of gravity, the better the stability and safety. The stronger the ability of the head of the head.
The lowbed semi trailer series has a flat, concave beam and tire exterior structure, and the long goose neck structure is adopted.
Its frame is a stepped type, and the section of the longitudinal beam is the shape of the work, which has the characteristics of high rigidity and high strength.
In the case of ensuring that the vehicle is good, the loading surface is low, ensuring the stability of the vehicle during transportation.
The balance type or rigid suspension is equipped with a quality balance block between the front and rear steel plate springs, which can change the amount of deflection of the front and rear steel plate springs, and make the front and rear shafts balanced.
The lowbed semi trailer structure is analyzed by the finite element software to optimize the design flexible and diverse, and the frame bearing surface of the frame is designed according to the user requirements to meet the transportation of various special goods.
60 ton Lowbed semi trailers are professional solutions in the field of heavy and over-size cargo transportation. 60 ton lowbed semi trailers stand out with their unique design and excellent performance. Lowbed semi trailers are designed for large-scale industrial equipment such as overweight, long, and wide industrial equipment. The 60 ton lowbed semi trailer adopts a very low chassis height, effectively reduce the focus of the cargo, enhances driving stability, reduces bumps in the transportation process, and protects the safety of goods. The body uses high-strength steel and special alloy materials, combined with advanced welding technology and structural design to ensure that the vehicle has excellent load-bearing capacity and durability, and easily cope with various extreme road conditions. The length and width of the platform can be customized according to the needs of different goods to facilitate the loading and unloading of over-size goods.
Parameter:
Name | |
Overall Size | 13000*3000*1760mm, customization |
Loading weight (KG) | 20-80Tons |
13T/16T/20T, FUWA/BPWbrand | |
Suspension system | Mechanical/Air suspension |
Main beam | Q345, Beam height 500mm, top plate 16mm, |
Flat platform | 3mm diamond plate |
Tires | 8.25R20 with 1 spare tyre |
Option:12.00R20 radial tyre; 11R22.5 diagonal tyre; | |
Ladder | Spring ladder |
Spare wheel holder | 1 |
Toolbox | 1 |
Landing gear | Standard 28 Tons |
Side guard | Standard |
Paint color | Custom (Polyester paint) |
Packaging | Waxing before departure |

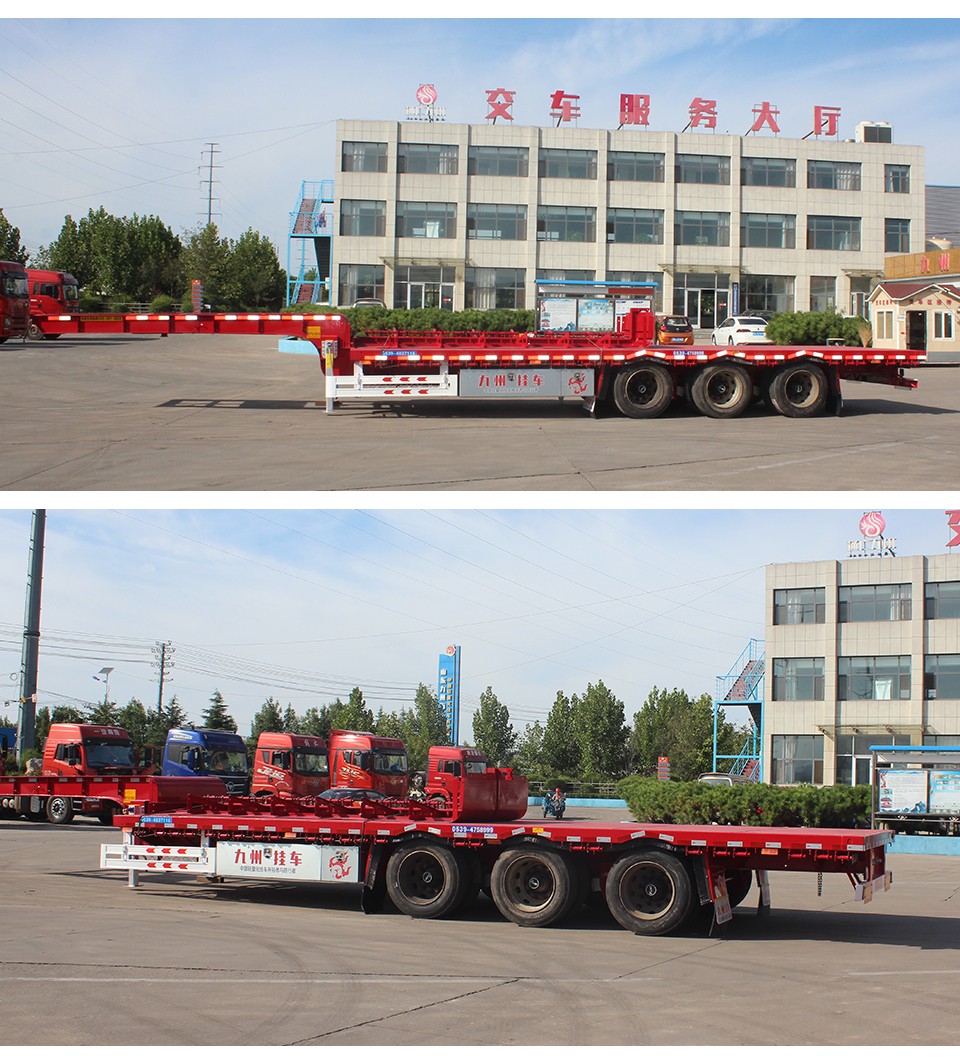

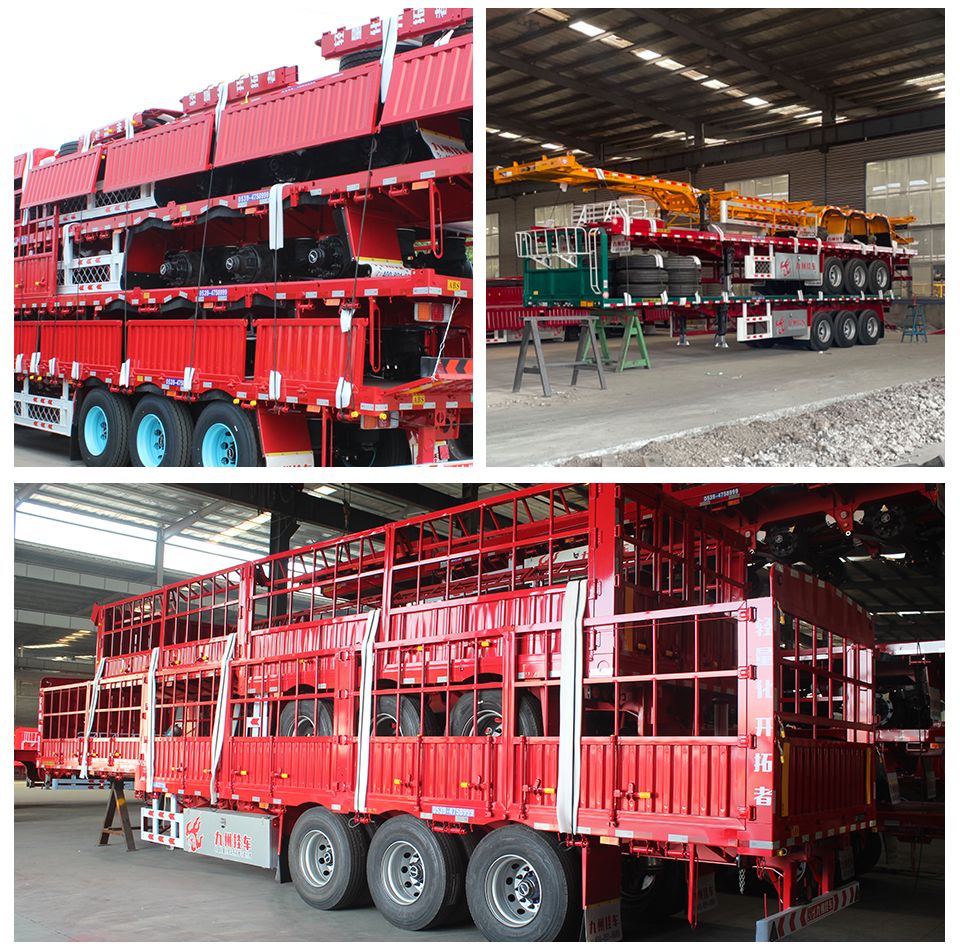

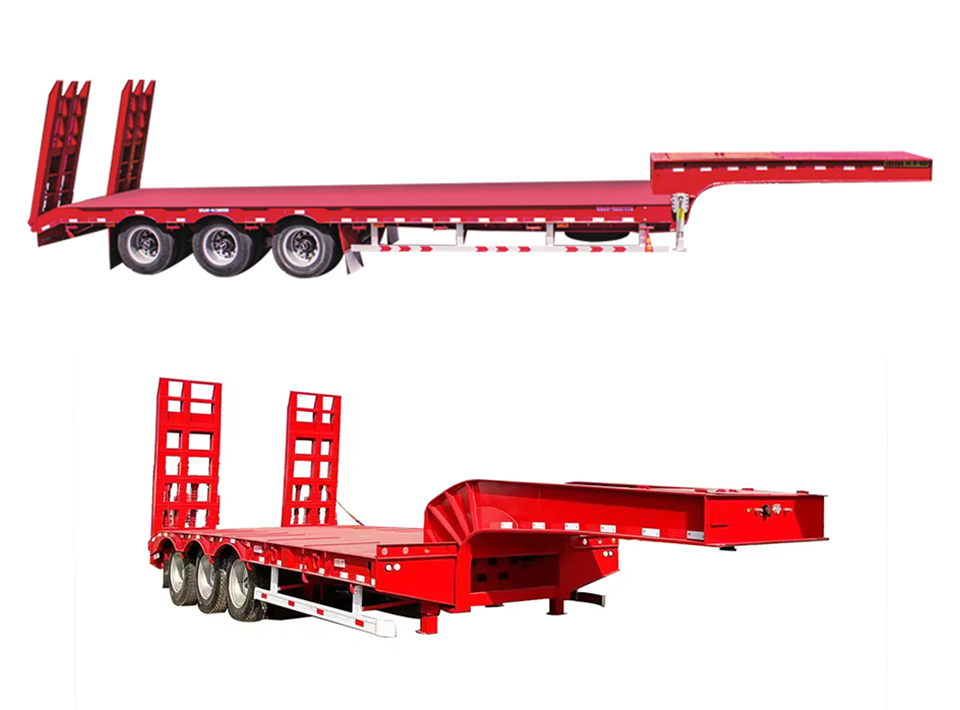

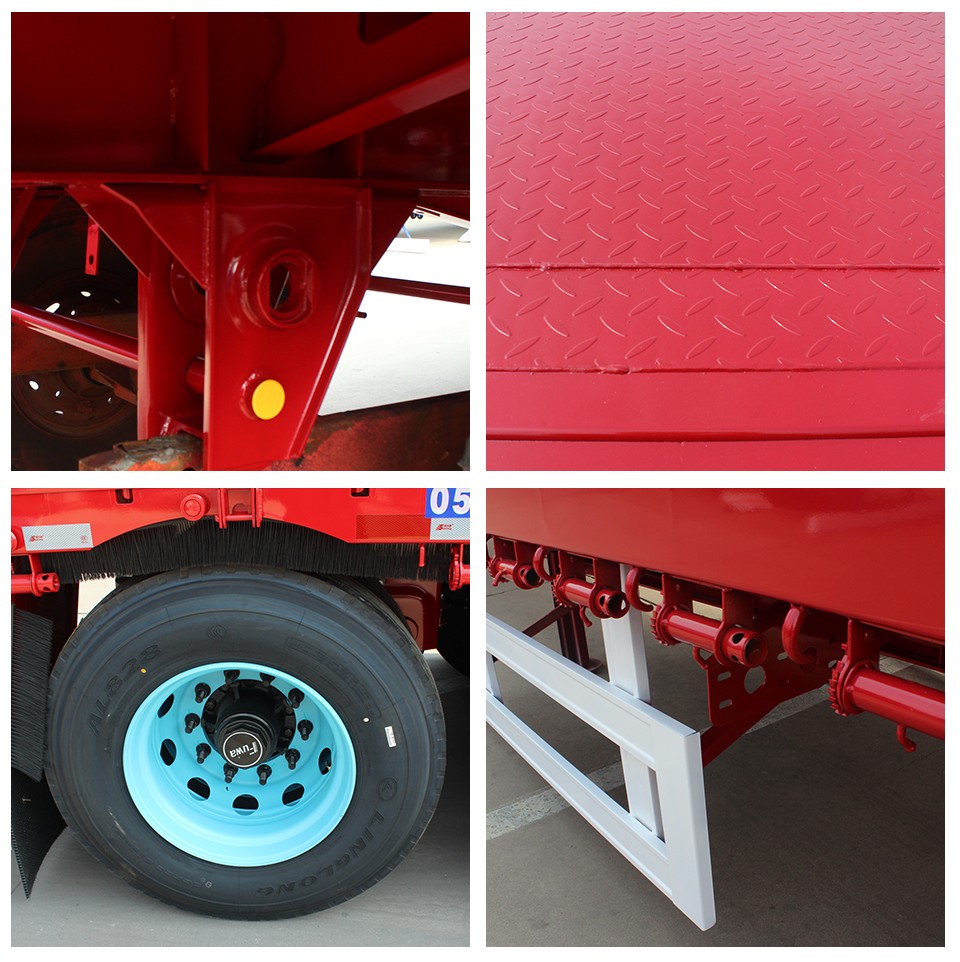

Detailed Pictures:
FAQ:
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 50 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
