3 Axle End Dump Semi Trailer
Rear dump trailers use hydraulic systems to lift the trailer bed, allowing gravity to do the work during unloading. This reduces the time needed to dump loads, leading to faster project turnaround.
Many models include safety mechanisms, such as stabilizing legs or outriggers, to further enhance stability during unloading.
Good visibility during unloading helps operators avoid obstacles, enhancing site safety.
Durable rear dump trailers tend to incur fewer replacement and maintenance costs, providing long-term savings.
The 3 Axle End Dump Semi Trailer is engineered for maximum efficiency in transporting and unloading bulk materials. Designed for use in construction, mining, and agricultural applications, this trailer combines robust construction with advanced functionality to handle a wide range of heavy-duty tasks. Built to carry substantial loads, accommodating various materials such as sand, gravel, soil, and aggregate, making it versatile for different industries. Made from high-strength steel, this end dump semi trailer is designed for rugged use, ensuring longevity and reliability even in the toughest operating conditions.
Parameter:
Product Name | |
Outside Dimension (L*W*H)(mm) | 13000x2550x2700mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:14mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R222.5 Linglong/Triangle/DoublCoin |
Rim | 9.0-22.5 rims |
Axle | 13 T/16TFuwa / BPW/JOZOTG/Other |
Leaf-spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Suspension | Mechanical/ Air suspension |
Brake Air Chamber | WABCO RE 6 relay valve |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Accessory | One tooling box with a set of standard trailer tool |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum One piece, 1m*0.5m*0.5m(Size can be choose freely) |

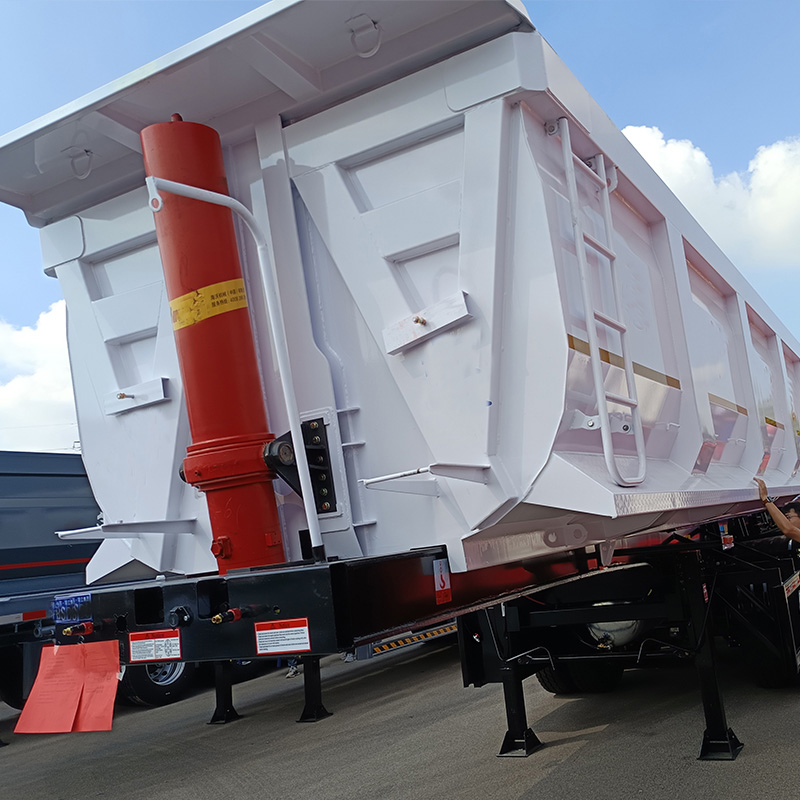

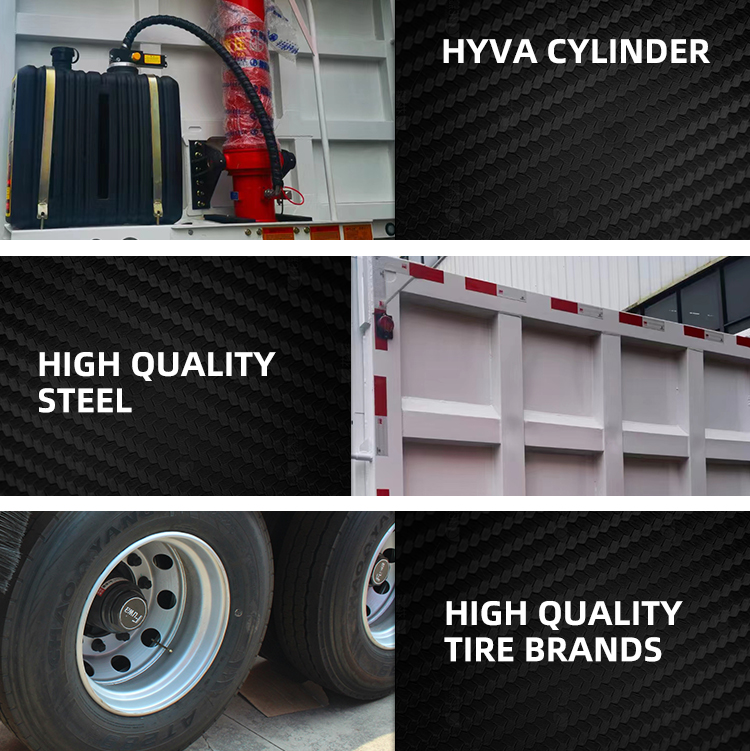

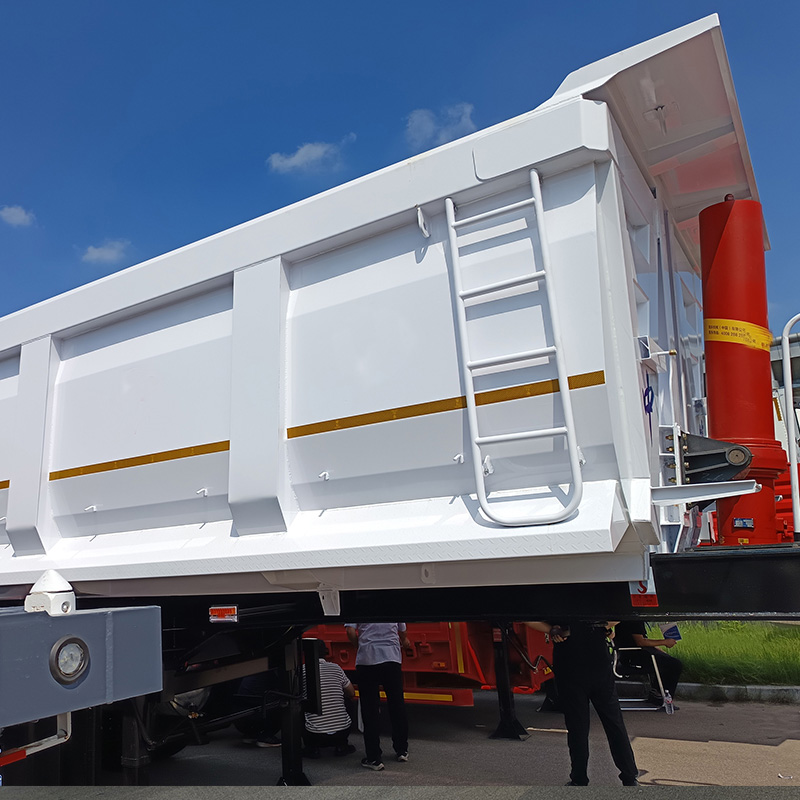

Detailed Pictures:
FAQ
What types of cargo are rear-discharge semi-trailers suitable for?
Rear-discharge semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, and grain. Their rear-discharge design allows for quick unloading, significantly improving work efficiency, making them a reliable assistant for construction sites and logistics transportation!
How efficient is the unloading process of rear-discharge semi-trailers?
Our rear-discharge semi-trailers are equipped with a hydraulic rear-discharge system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of rear-discharge semi-trailers?
Rear-discharge semi-trailers are made of high-strength steel and have a maximum load capacity of 80 tons, making them capable of handling heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are rear-discharge semi-trailers suitable for use in harsh environments?
Absolutely! Our rear-discharge semi-trailers feature anti-rust treatment and reinforced design, enabling them to operate stably in harsh environments over the long term. Whether on construction sites or in mining areas, they deliver excellent performance.
How is after-sales service handled if issues arise with rear-discharge semi-trailers?
We offer a lifetime warranty on the main beam and a lifetime warranty on the hydraulic system. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
