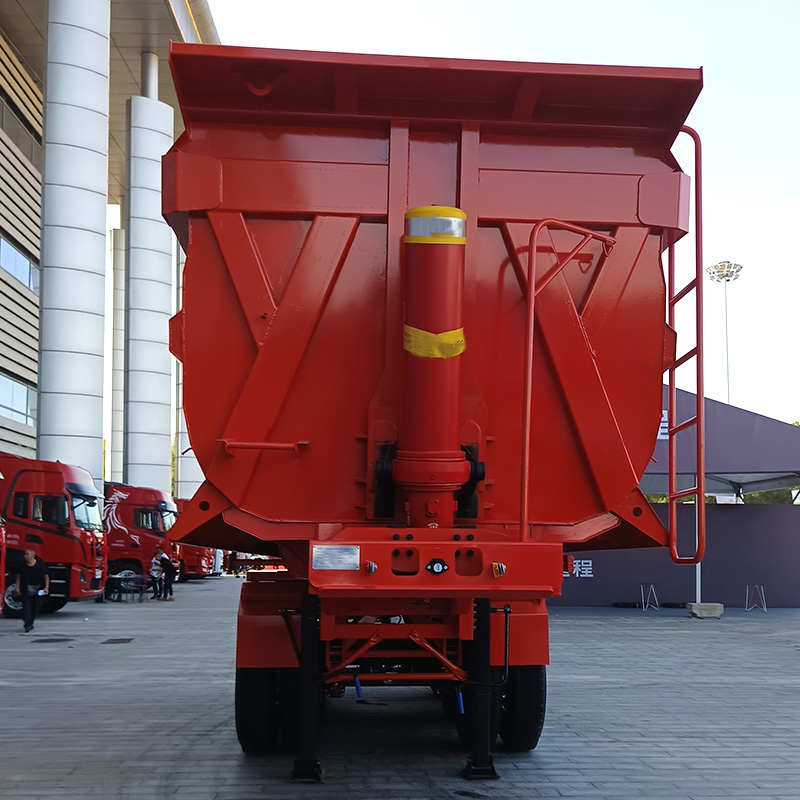

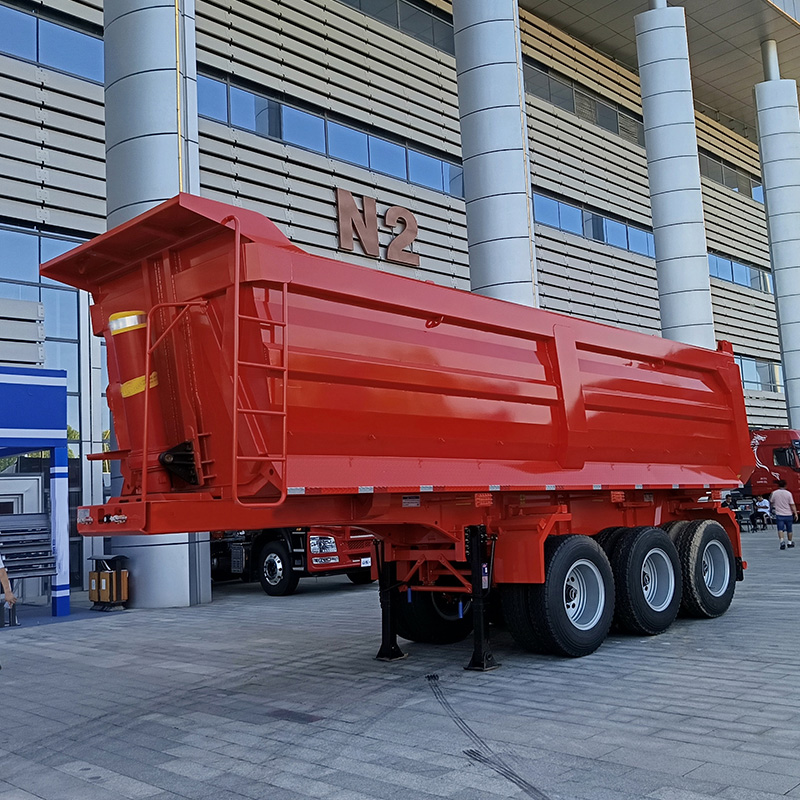

3 Axle U Shape Rear Dumper Semi Trailer
3 axle dumper semi trailer frame and longitudinal beam using high-quality steel plate welding. There are two types of containers: U-shaped and rectangular. 3 axle dumper semi trailer has the characteristics of strong rigidity, good toughness, high strength, strong lifting force and strong bearing capacity.
Our dump method for 3 axle dumper semi trailers includes side turns and rear turns. You can choose the dump truck according to the need, increase the dump truck function, reduce the labor intensity of workers, improve the loading and unloading efficiency.
Our dump tipper trailer has significant advantages in performance and structure, with stable performance and reasonable design. The newly developed dump tipper trailer has gained wide recognition from numerous market customers, with a reasonable structural design and compact layout, which can meet the application needs of multiple fields.
Over the years, our company has grown into a well-known brand in the production and processing of dump tipper trailers in China. We adhere to the responsibility of manufacturing high-quality dump tipper trailers and always provide high-quality services to customers who come for consultation and purchase. We warmly welcome new and old customers to consult us!
Parameter:
Product Name | |
Outside Dimension (L*W*H)(mm) | 13000x2550x2700mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:14mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R222.5 Linglong/Triangle/DoublCoin |
Rim | 9.0-22.5 rims |
13 T/16TFuwa / BPW/JOZOTG/Other | |
Leaf-spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Suspension | Mechanical/ Air suspension |
Brake Air Chamber | WABCO RE 6 relay valve |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Accessory | One tooling box with a set of standard trailer tool |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum One piece, 1m*0.5m*0.5m(Size can be choose freely) |

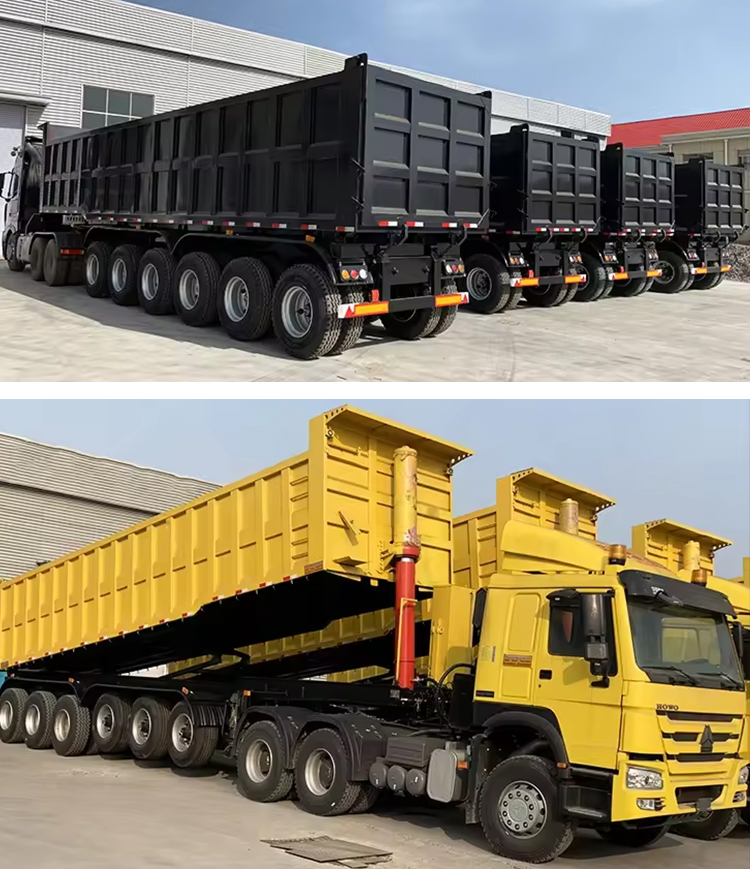

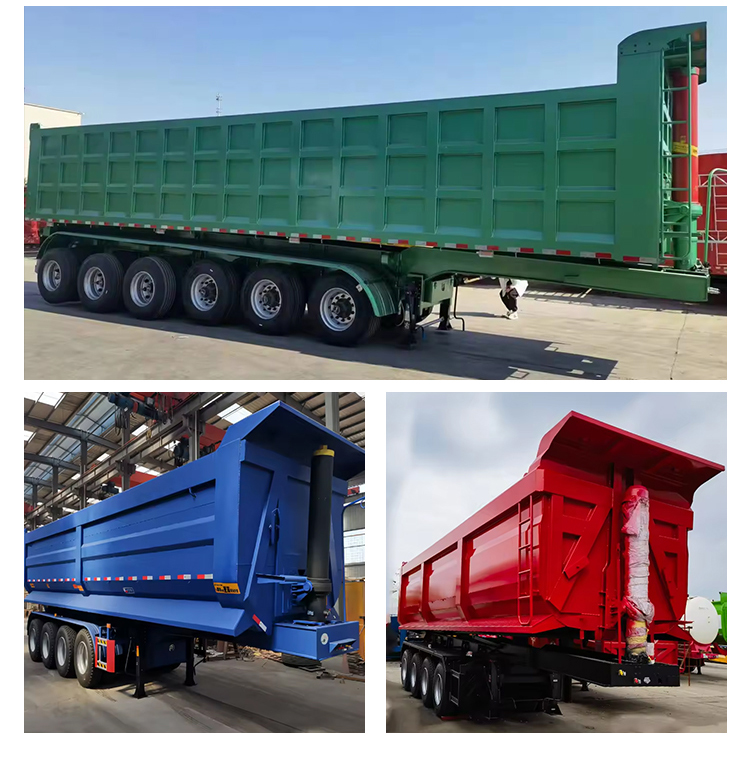

Detailed Pictures:
FAQ
What types of cargo are rear-discharge semi-trailers suitable for?
Rear-discharge semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, and grain. Their rear-discharge design allows for quick unloading, significantly improving work efficiency, making them a reliable assistant for construction sites and logistics transportation!
How efficient is the unloading process of rear-discharge semi-trailers?
Our rear-discharge semi-trailers are equipped with a hydraulic rear-discharge system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of rear-discharge semi-trailers?
Rear-discharge semi-trailers are made of high-strength steel and have a maximum load capacity of 80 tons, making them capable of handling heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are rear-discharge semi-trailers suitable for use in harsh environments?
Absolutely! Our rear-discharge semi-trailers feature anti-rust treatment and reinforced design, enabling them to operate stably in harsh environments over the long term. Whether on construction sites or in mining areas, they deliver excellent performance.
How is after-sales service handled if issues arise with rear-discharge semi-trailers?
We offer a lifetime warranty on the main beam and a lifetime warranty on the hydraulic system. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
