33CBM Tipper Semi Trailer Price
33CBM tractor trailer tipper can be customized according to the specific needs of customers, such as adding special reinforcement and installation of additional support structures. This customized service of tractor trailer tipper meets the personalized needs of customers. For example, tractor trailer tipper can ensure safe transportation of specific types of goods by increasing special reinforcement measures. This flexibility is very useful to meet the personalized needs of different customers.
The 33CBM tractor trailer tipper can adapt to various complex road conditions and terrains, such as mountainous areas, urban streets, etc. Its design takes into account various transportation scenarios to ensure smooth operation in different environments.
33CBM tipper tractor trailer can adapt to various complex road conditions and terrain, such as mountainous areas and urban streets. Its design takes into account a variety of transportation scenarios to ensure that it can work smoothly in different environments. The multi -axis configuration and advanced suspension system of tipper tractor trailer are the key to achieving this goal. The multi -axis design of tipper tractor trailer helps decentralized weight and reduce pressure on the ground, which is particularly important for driving on the weak ground. The advanced suspension system can adapt to different pavement conditions, provide better stability and shock absorption effects, and ensure that it can maintain a stable driving state even on the harsh roads.
Parameter:
Product Name | |
Outside Dimension (L*W*H)(mm) | 13000x2550x2700mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:14mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R222.5 Linglong/Triangle/DoublCoin |
Rim | 9.0-22.5 rims |
13 T/16TFuwa / BPW/JOZOTG/Other | |
Leaf-spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Suspension | Mechanical/ Air suspension |
Brake Air Chamber | WABCO RE 6 relay valve |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Accessory | One tooling box with a set of standard trailer tool |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum One piece, 1m*0.5m*0.5m(Size can be choose freely) |

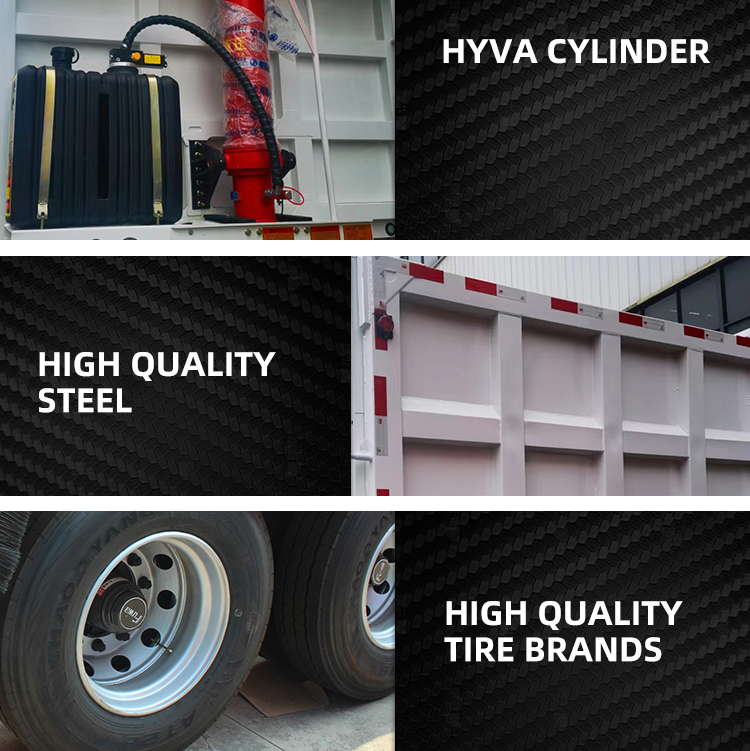

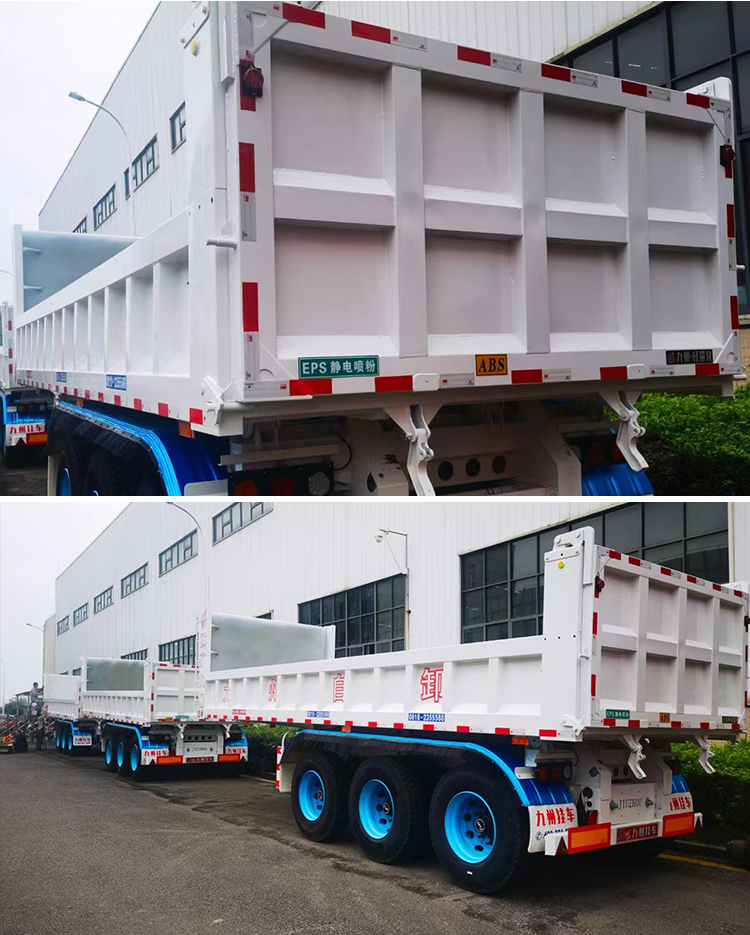

Detailed Pictures:
FAQ
What types of cargo are rear-discharge semi-trailers suitable for?
Rear-discharge semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, and grain. Their rear-discharge design allows for quick unloading, significantly improving work efficiency, making them a reliable assistant for construction sites and logistics transportation!
How efficient is the unloading process of rear-discharge semi-trailers?
Our rear-discharge semi-trailers are equipped with a hydraulic rear-discharge system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of rear-discharge semi-trailers?
Rear-discharge semi-trailers are made of high-strength steel and have a maximum load capacity of 80 tons, making them capable of handling heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are rear-discharge semi-trailers suitable for use in harsh environments?
Absolutely! Our rear-discharge semi-trailers feature anti-rust treatment and reinforced design, enabling them to operate stably in harsh environments over the long term. Whether on construction sites or in mining areas, they deliver excellent performance.
How is after-sales service handled if issues arise with rear-discharge semi-trailers?
We offer a lifetime warranty on the main beam and a lifetime warranty on the hydraulic system. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
