150 Ton Lowboy Trailer

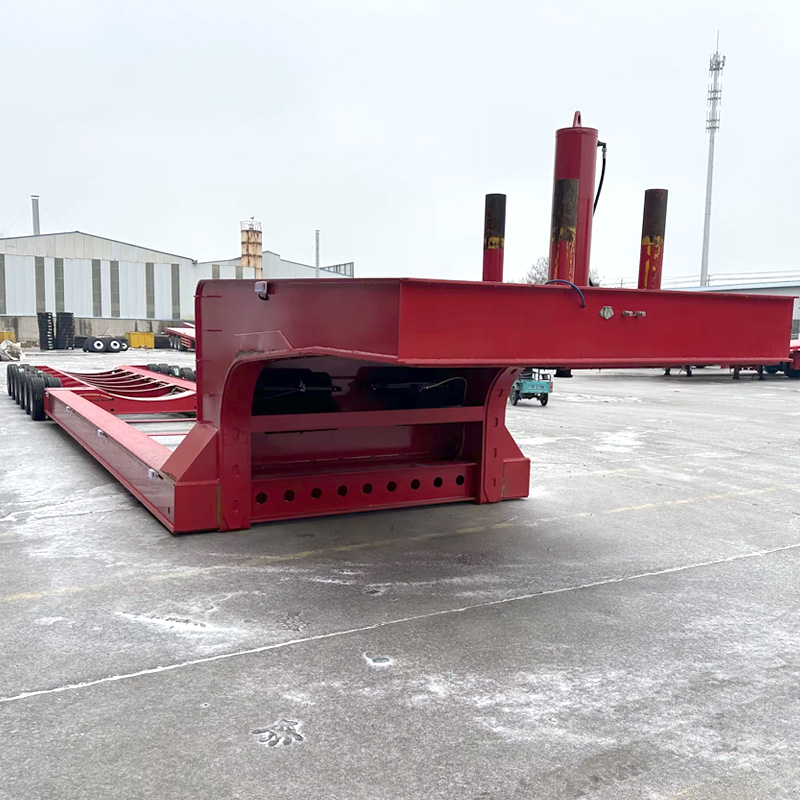

Disassembly goose neck design of removable gooseneck trailer is one of the core advantages of 150 tons of demolished goose neck trailers. This design of removable gooseneck trailer allows the goose neck part (that is, the part where the trailer and trailer connection) are removed when needed to load and uninstall the goods. When the goose neck is removed, the goods of removable gooseneck trailer can be placed directly on the trailer platform, which reduces the loading height of the cargo and improves the convenience of loading. In addition, this design makes the trailer more flexible when loading ultra-long or ultra-wide goods, reducing damage to road infrastructure.
150 tons of detachable gooseneck lowboys are equipped with advanced suspension systems, such as air suspension or hydraulic suspension. This suspension system of detachable gooseneck lowboy can adapt to different road conditions and provide better stability and shock absorption effects. Even on the harsh roads, detachable gooseneck lowboy 4 axle lowboy trailer can maintain a stable driving state, reduce the movement of the goods during transportation, and ensure the safety of the goods. In addition, the advanced suspension system of detachable gooseneck lowboy 4 axle lowboy trailer also helps reduce the energy loss of 4 axle lowboy trailers during transportation and improve fuel efficiency.
Parameter:
Dimension | 15800mm*3000mm*2500mm |
(Size can be tailored to suit individual needs.) | |
Loading capacity(T) | 80 tons |
3 axle | |
Tire | 11.00R20, 12units |
Suspension | Mechanical suspension |
Kingpin | JOST brand |
Landing gear | JOST brand |
Ladder | Manually operated |
Goose neck | Hydraulic removable gooseneck |
Valve | WABCO valve |

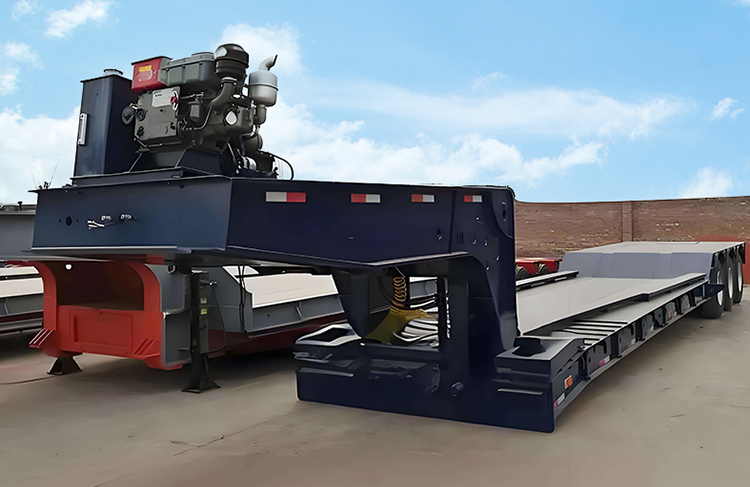

Hydraulic power station | 12KW Diesel engine |
Light | LED light |
Voltage | 24V |
Socket (receptacle) | 7-pin socket (for 7wire harness) |
Semi trailer | Polyurethane paint |

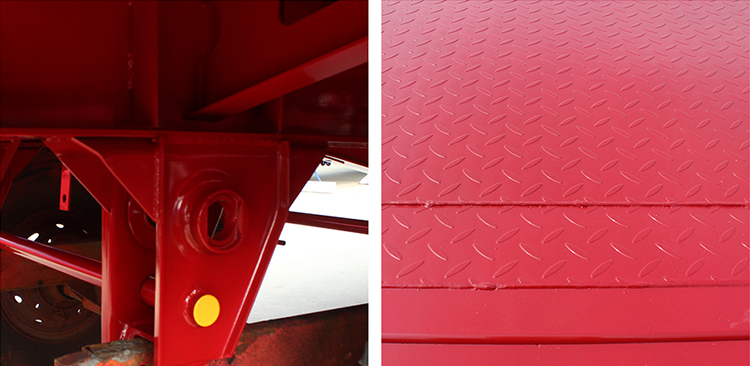

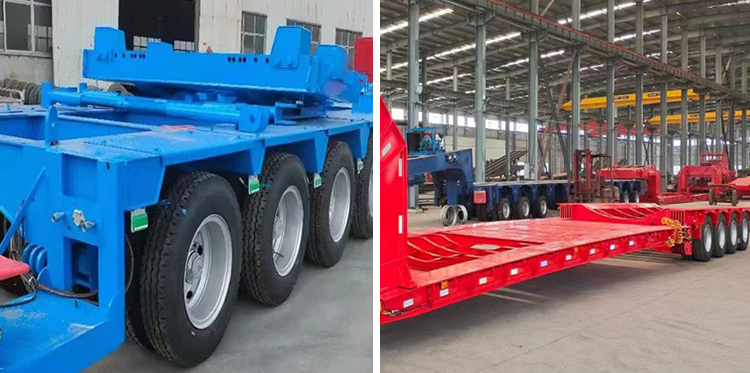

Detailed Pictures:
FAQ
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 50 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
