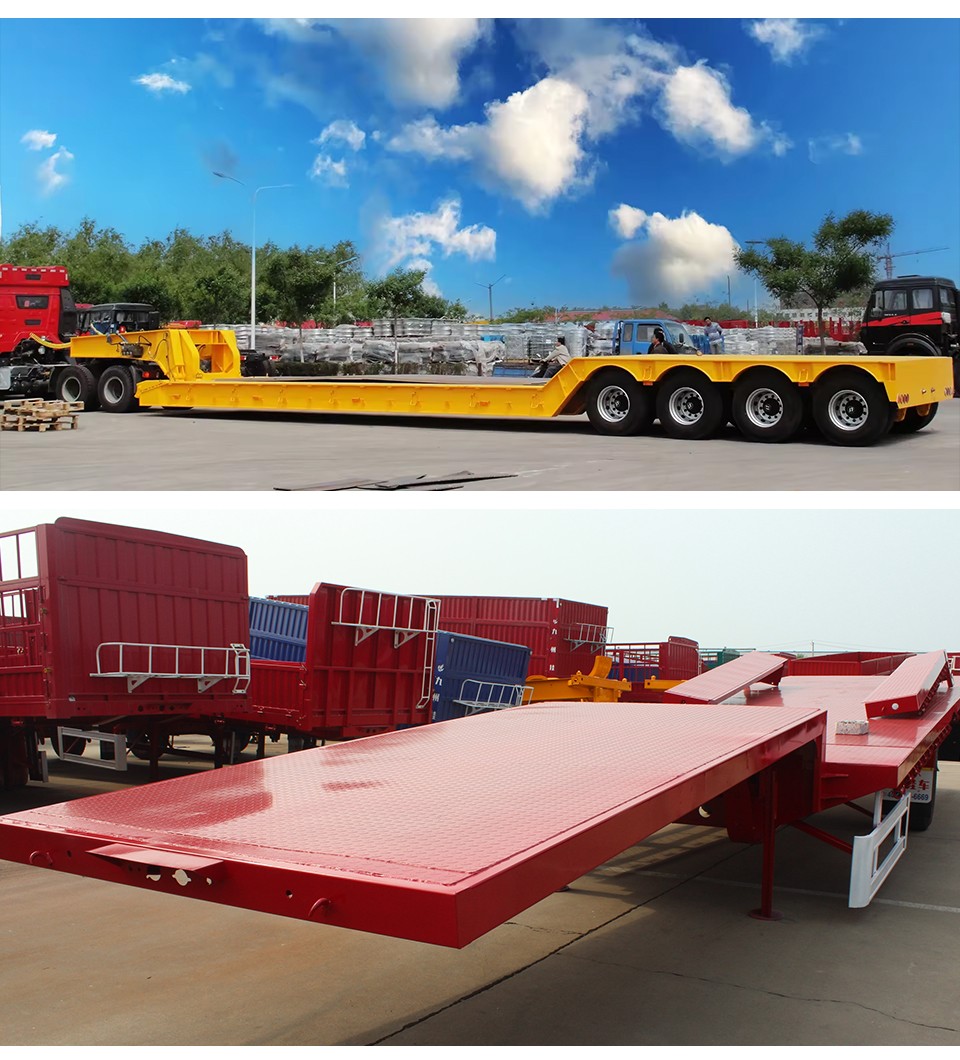

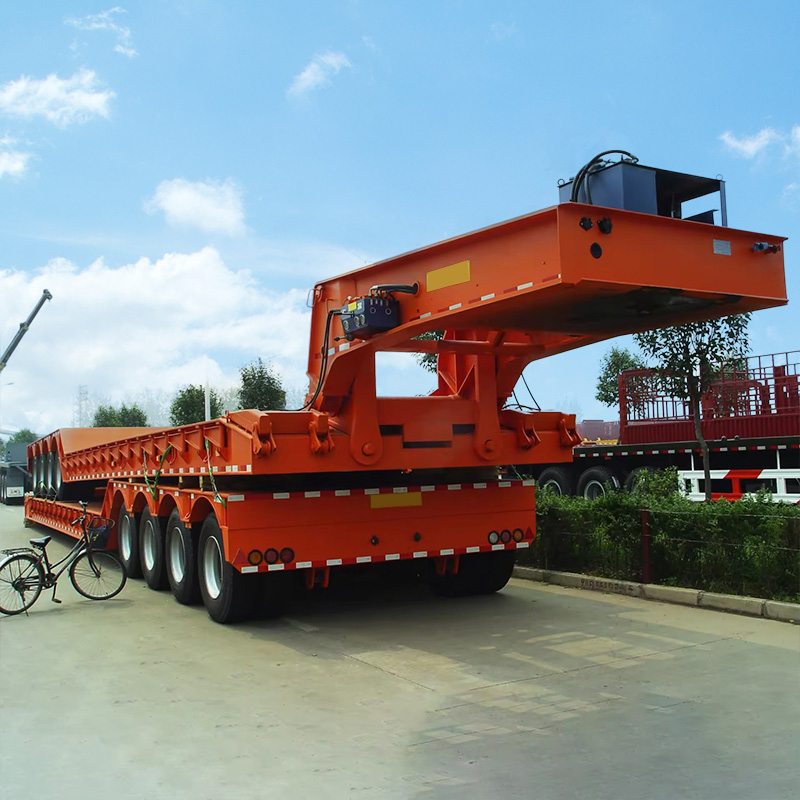

80 Tons Removable Gooseneck Trailer
Introducing the removable gooseneck trailer, ideal for the efficient loading and transportation of heavy machinery and equipment. The design features a detachable front on the gooseneck, enabling the removable gooseneck trailer to lower to the ground and create a convenient ramp on its own for easy loading and unloading operations.
Removable gooseneck trailers can adapt to different size and weight of the goods, and optimize the loading of the cargo by adjusting the height and position of the goose neck.
The height of the lower platform makes the focus of the cargo lower, increasing the stability of the vehicle during driving, and reducing the risk of turning.
The design of demolished goose neck is often accompanied by a wider wheel distance, which further enhances the stability of the vehicle.
Adopting high-strength structural steels to enhance the overall structural strength of the vehicle and be able to withstand heavier loads.
The main beam uses buried arc welding technology to improve the bearing capacity to ensure that the vehicle can still transport heavy objects safely under bad road conditions.
The use of durable materials and manufacturing processes ensures the reliability of vehicles under long -term use and heavy load conditions.
With its strong carrying capacity, flexible loading method, and high customized options, the 80 tons removable gooseneck trailer has become an indispensable transportation tool in the field of heavy logistics and transportation. The platform height is low to reduce the focus of the goods and increase the stability in the transportation process.
The 80 tons removable gooseneck trailers use high-strength steel and reinforced beams to ensure the strength of the vehicle structure and be able to withstand the weight of overweight. According to different models, the load weight can be ranging from 60 tons to 120 tons, or even higher, suitable for transporting various heavy machinery and building components. The multi-axis design can be a 2/3/4 axis or more, to decentralized weight, reduce ground pressure, and improve the carrying capacity. The gooseneck part is controlled by the hydraulic system to facilitate the loading and unloading of the goods.
According to the specific needs of customers, the 80 tons removable gooseneck trailers can be provided with different configurations, including axis, bearing capacity, platform length and width.
Parameter:
Dimension | 15800mm*3000mm*2500mm |
(Size can be tailored to suit individual needs.) | |
Loading capacity(T) | 80 tons |
3 axle | |
Tire | 11.00R20, 12units |
Suspension | Mechanical suspension |
Kingpin | JOST brand |
Landing gear | JOST brand |
Ladder | Manually operated |
Goose neck | Hydraulic removable gooseneck |
Valve | WABCO valve |
Hydraulic power station | 12KW Diesel engine |
Light | LED light |
Voltage | 24V |
Socket (receptacle) | 7-pin socket (for 7wire harness) |
Semi trailer | Polyurethane paint |

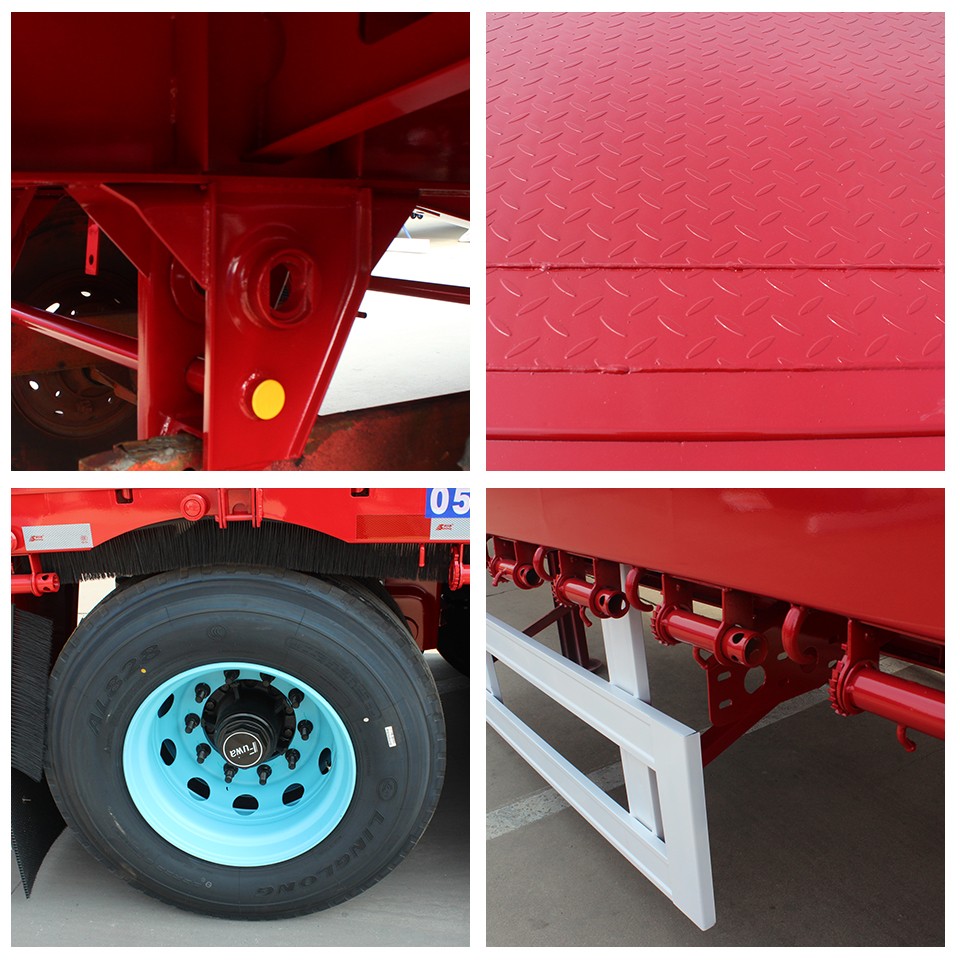

Detailed Pictures:
FAQ
What is the load-bearing capacity of a low flatbed semi-trailer?
Our low flatbed semi-trailer is made of high-strength steel and advanced manufacturing technology, with a maximum load-bearing capacity of up to 50 tons. Each vehicle undergoes rigorous quality testing to ensure excellent stability and safety even under heavy load conditions.
What is the material of the body of a low flatbed semi-trailer?
The body material is mainly high-strength steel, which has excellent compressive strength and durability. The key components are made of wear-resistant alloy steel to further enhance the vehicle's strength and ensure that it is not easily deformed or damaged during long-term use.
Has the low flatbed semi-trailer undergone quality certification?
Yes, our low flatbed semi-trailer has passed ISO9001 quality management system certification and complies with national vehicle safety standards, ensuring that each vehicle meets the highest quality standards in the industry.
How to ensure the durability of low flatbed semi trailers?
We adopt advanced anti rust treatment technology and multi-layer spraying process to effectively prevent corrosion and rust. In addition, all key components undergo rigorous fatigue and load testing to ensure that the vehicle can operate stably for a long time even in harsh environments.
How to solve quality problems if they occur?
We provide lifetime warranty service for the main beam, and other accessories are sourced from top domestic and international brands. During the warranty period, we will provide free repair or replacement services for quality issues caused by manufacturing defects. Our after-sales team is available 24 hours a day to provide you with technical support and service at any time.
