3 Axle 40FT Sidewall Trailer
Side wall semi trailers can be used for a variety of cargo types, including palletized goods, bulk items, and even oversized loads.
The side walls of side wall semi trailers can be configured to allow for higher stacking of cargo, maximizing the trailer's load capacity without compromising safety or stability.
These side wall semi trailers can be customized with various features, which can enhance their functionality for specific cargo types or loading requirements.
With the open sides, it's easier to secure cargo using straps or nets, which can prevent shifting during transport and reduce the risk of damage.
3 axle 40FT side wall trailer is a versatile and popular choice in the transportation industry for its flexibility and efficiency in cargo handling. Side wall trailer is composed of the flatbed trailer and sidewall, it not only can be used to transport 20ft and 40ft container but bulk cargo, which is more practical and convenient. Our side wall trailer products are all customized, the sidewall height has 0.6m, 0.8m, 1m, 1.2m for your choice, and you can choose 2 axle or 3 axle according to material tons you plan to pull.
The side wall trailer features three axles to distribute the weight of the cargo evenly. This helps in adhering to road regulations regarding axle load limits and ensures better stability and handling.

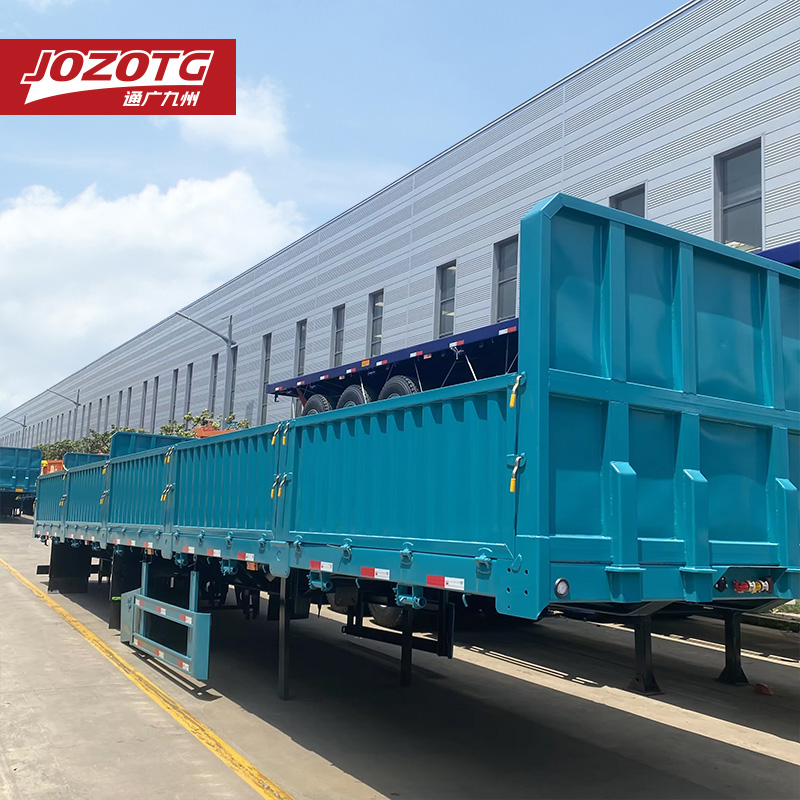

3 Axle 40FT Side Wall Trailer
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |

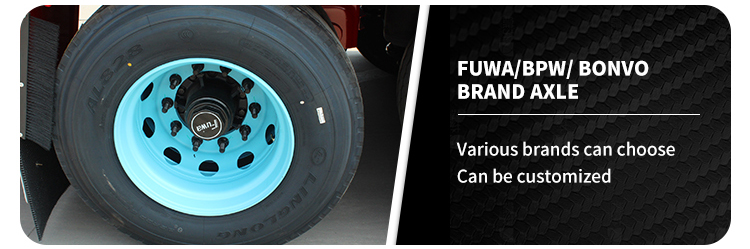

Axle | 3 axles, 13T/16T, FUWA/BPW brand |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |

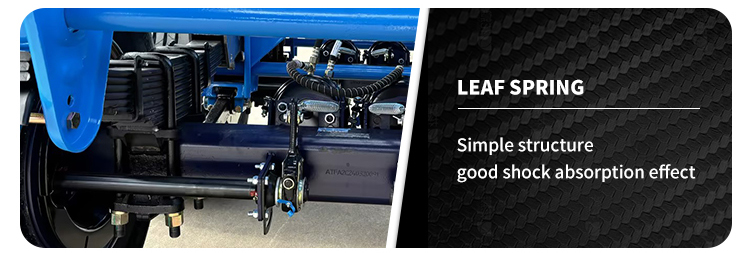

Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |

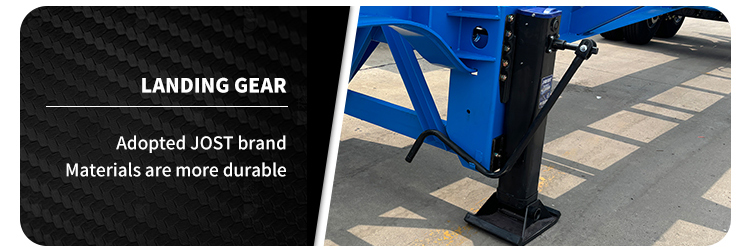

Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

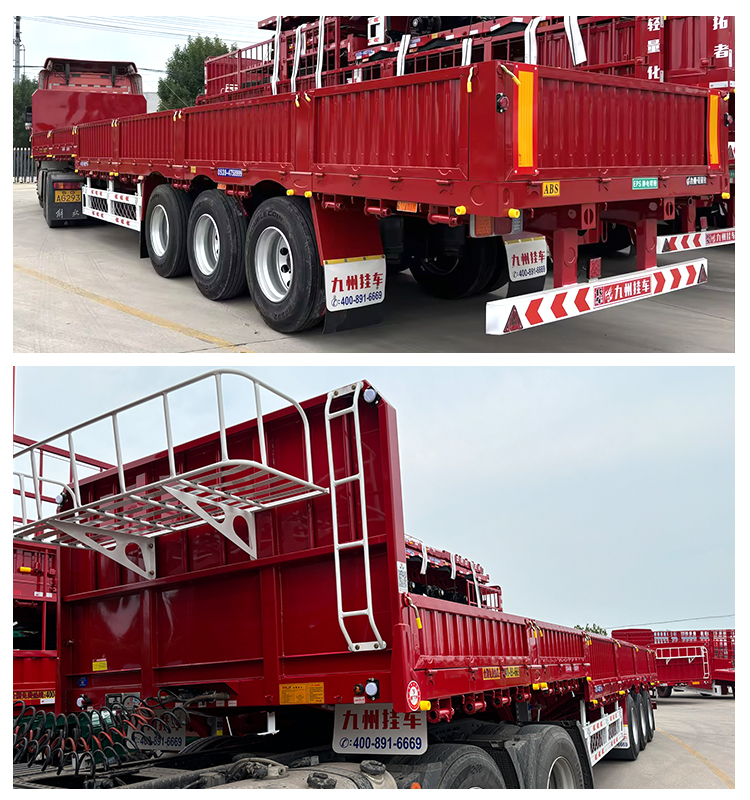

Detailed Pictures:
FAQ:
What are the main uses of a stakebed semi-trailer?
Stakebed semi-trailers are suitable for transporting various bulk goods and large equipment, such as building materials, steel, wood, and machinery. Their open design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a stakebed semi-trailer?
Our stakebed semi-trailers are made of high-strength steel with a maximum load capacity of up to 80 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a stakebed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The stake sides feature a removable design, allowing flexible loading and unloading while ensuring a sturdy and reliable vehicle structure.
Is a stakebed semi-trailer suitable for long-distance transportation?
Yes, our stakebed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the stakebed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
