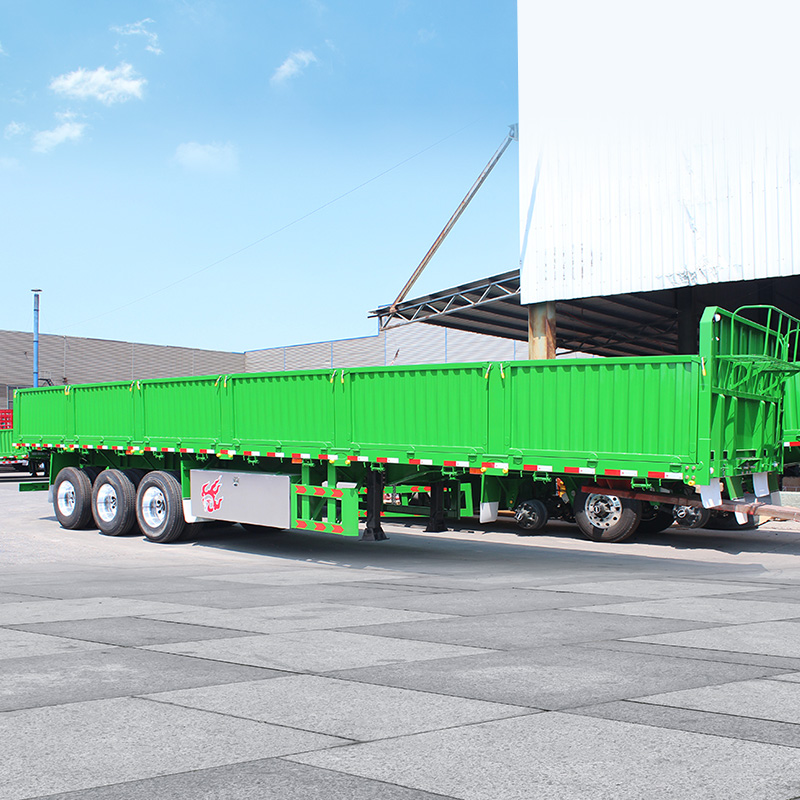

60 Ton 3 Axle Drop Side Semi Trailer
The 60 ton three-axis drop side semi trailer for sale has strong load-bearing capacity and can transport goods weighing up to 60 tons. This design of drop side semi trailer for sale enables trailers to handle various heavy and oversized cargo, such as large machinery and equipment, building materials, metal products, etc. The drop side semi trailer for sale is made of high-strength materials such as special steel or aluminum alloy, ensuring the robustness and durability of the structure. The three-axis design of drop side semi trailer for sale helps to distribute weight, ensure even distribution of ground loads during transportation, reduce pressure on the ground, and is suitable for various complex road conditions.
The trailer with drop sides is made of high-strength materials, such as special steel or aluminum alloy to ensure that the vehicle structure is strong and durable. This solid structure of trailer with drop sides can withstand long-term overload transportation and extend the life of the vehicle. The trailer with drop sides's framework is carefully designed to ensure that it remains stable when to withstand the maximum load. In addition, the strong structure of the trailer with drop sides also helps reduce maintenance costs, because a solid structure means less maintenance and longer service life.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW brand | |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

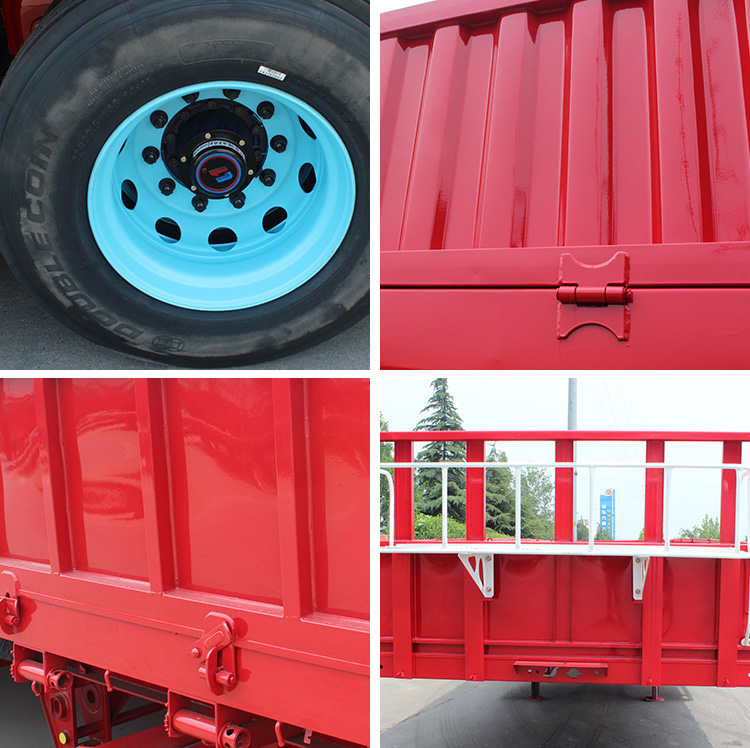

Detailed Pictures:
FAQ
What are the main uses of a stakebed semi-trailer?
Stakebed semi-trailers are suitable for transporting various bulk goods and large equipment, such as building materials, steel, wood, and machinery. Their open design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a stakebed semi-trailer?
Our stakebed semi-trailers are made of high-strength steel with a maximum load capacity of up to 80 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a stakebed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The stake sides feature a removable design, allowing flexible loading and unloading while ensuring a sturdy and reliable vehicle structure.
Is a stakebed semi-trailer suitable for long-distance transportation?
Yes, our stakebed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the stakebed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
