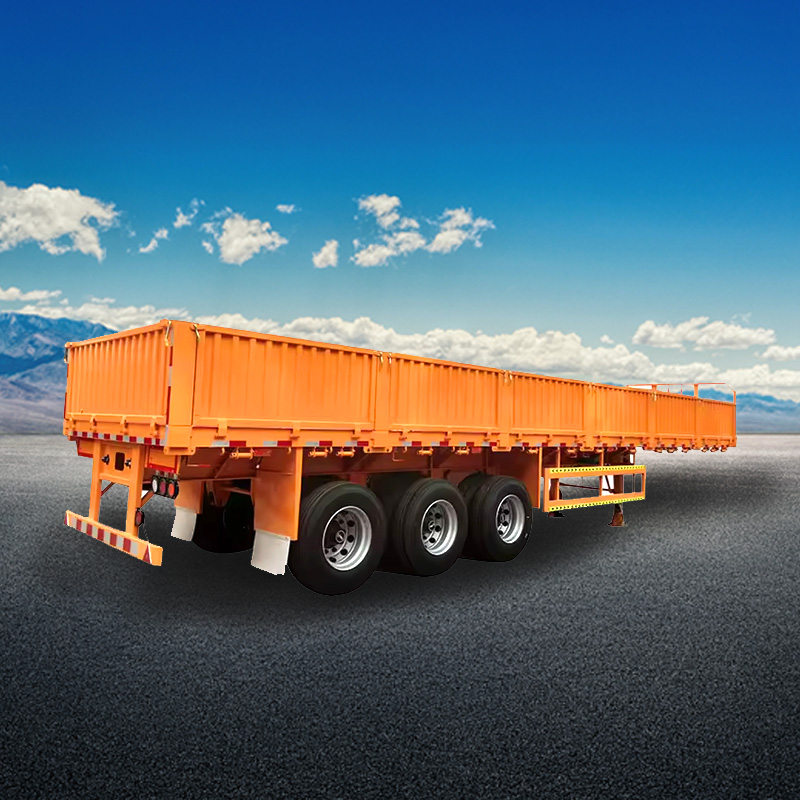

High Quality Dropside Trailer
The design of the dropside trailers for sale makes the loading and unloading goods more convenient. The side board of dropside trailers for sale can be easily opened to form a completely open platform, so that the goods can be directly loaded and unloaded from the side. This design of dropside trailers for sale is especially suitable for loading and unloading of large-scale items or equipment such as forklifts and cranes. The opening and closing operation of the side board is simple and fast, which greatly improves the efficiency of loading and unloading.
Because the side board of dropside trailers for sale can be opened, dropside trailer for sale can adapt to various types of goods.Whether it is standard size or non-standard size, or even irregular-shaped items, it can be easily loaded.This multifunctional characteristics make dropside trailer for sale more widely used in different industries. Whether construction materials, agricultural products, or other types of goods can be used to transport the same trailer.
The biggest advantage of the dropside trailer for sale is its convenient loading and unloading ability.The baffle on both sides of the dropside trailer for sale and the rear can be easily put down to form a completely open platform to facilitate the loading and unloading of the goods. This design of dropside trailer for sale is particularly suitable for frequent loading and unloading goods, such as agricultural products, building materials, etc. The dropside trailer for sale is usually made of high-strength materials, such as special steel or aluminum alloy to ensure that the vehicle structure is strong and durable. This solid structure of dropside trailer for sale can withstand long -term overload transportation and extend the life of the vehicle. The dropside trailer for sale's framework is carefully designed to ensure that it remains stable when to withstand the maximum load.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW brand | |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

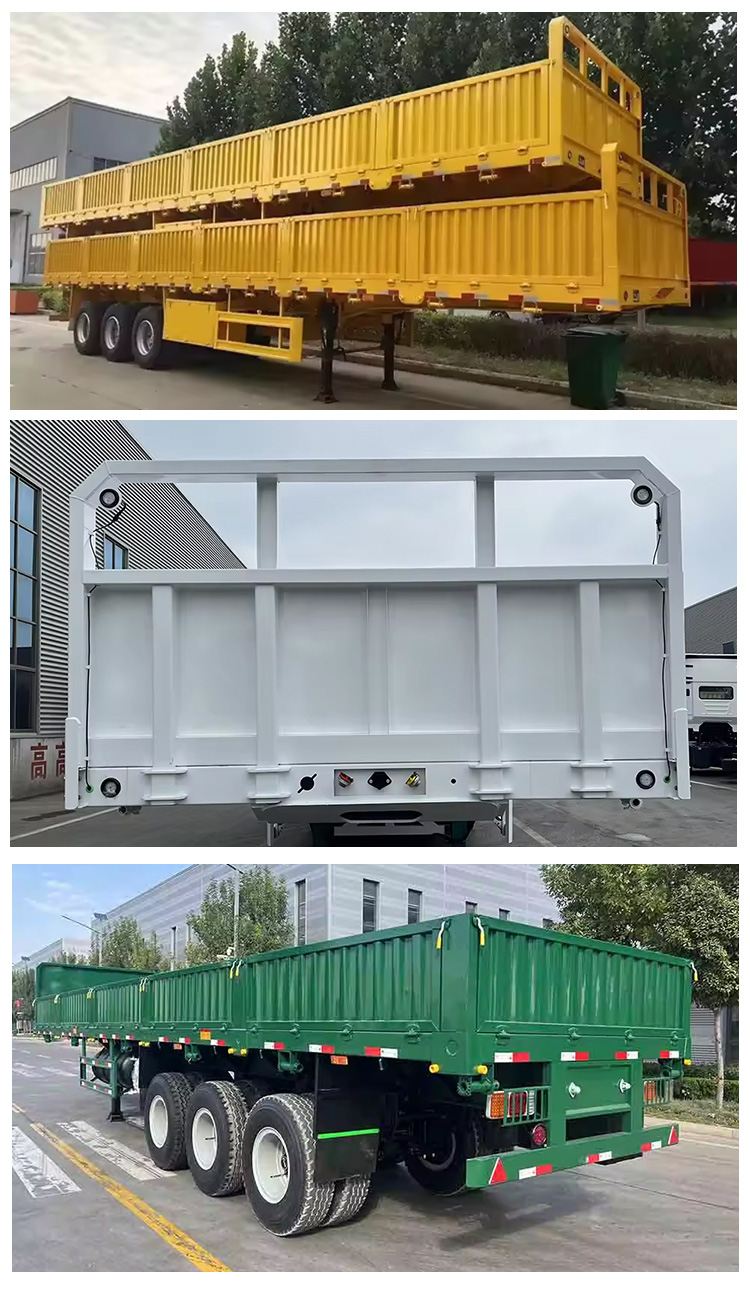

Detailed Pictures:
FAQ:
What are the main uses of a stakebed semi-trailer?
Stakebed semi-trailers are suitable for transporting various bulk goods and large equipment, such as building materials, steel, wood, and machinery. Their open design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a stakebed semi-trailer?
Our stakebed semi-trailers are made of high-strength steel with a maximum load capacity of up to 80 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a stakebed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The stake sides feature a removable design, allowing flexible loading and unloading while ensuring a sturdy and reliable vehicle structure.
Is a stakebed semi-trailer suitable for long-distance transportation?
Yes, our stakebed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the stakebed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
