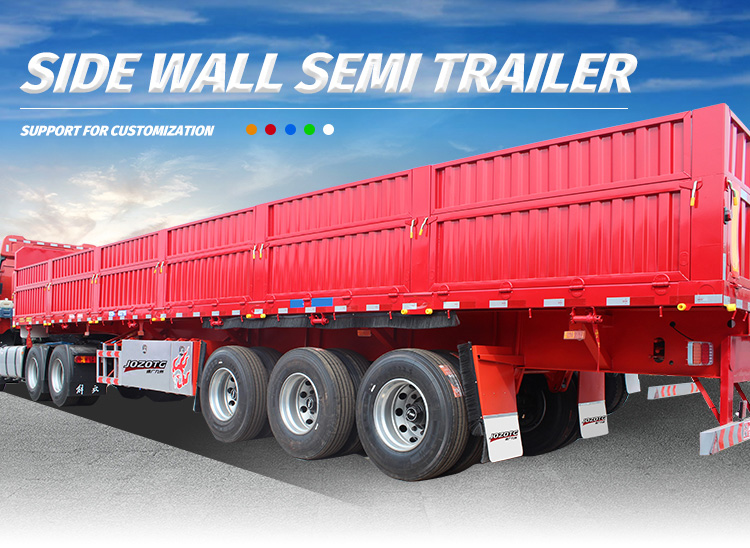

Sidewall Cargo Semi Trailer
With higher payload carrying capacity, better driving range and availability of different product variants cater to different customer needs. The side wall trailer provides you with longer tire life, better fuel efficiency and lower maintenance costs, resulting in higher revenue and lower operating costs, which can greatly improve your overall profits.
Side wall trailers can be used for a variety of cargo types, including palletized goods, bulk items, and even oversized loads. The ability to drop the side walls allows for easy loading and unloading from the sides, which is particularly useful in tight loading bays or when handling large items.
The drop side trailer is our best-selling model, which is deeply loved by customers and has achieved many successful cases in Southeast Asia, Africa, the Middle East.

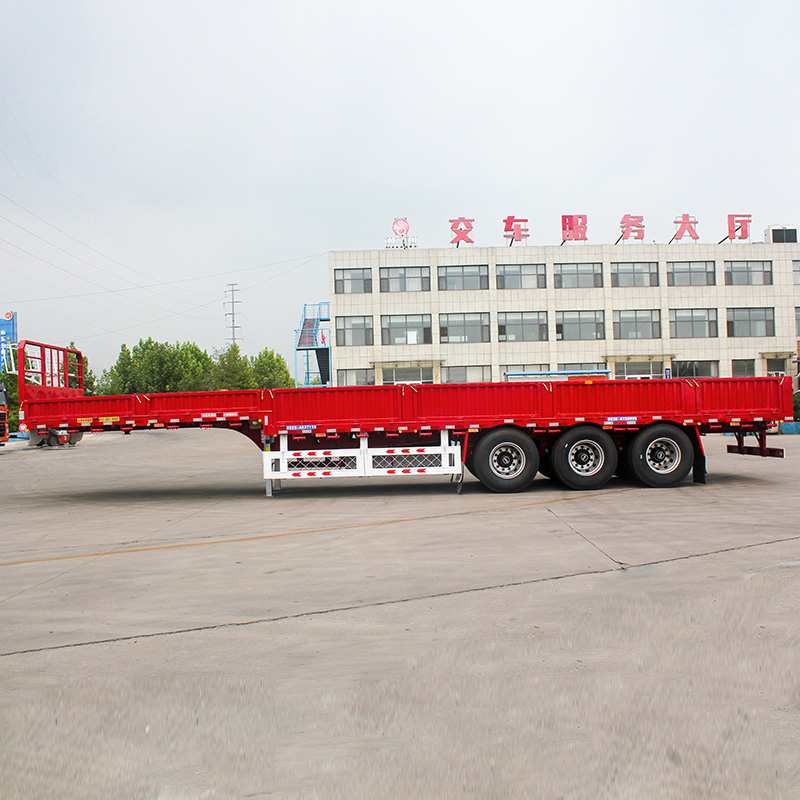

The drop side trailer features side walls that can be lowered or removed, providing quick access for loading and unloading using cranes, forklifts, or other lifting equipment. This design facilitates faster and easier handling of cargo compared to traditional enclosed trailers.
The drop side trailers have 2 axle, tri axle, 4 axle, 50 ton, 60 ton, 80 ton and other side wall trailer for sale with different configurations and specifications.
We can customize the height of sidewall semi trailer to meet customers' different transportation requirements.
Sidewall Cargo Semi Trailer
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
Axle | 3 axles, 13T/16T, FUWA/BPW brand |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

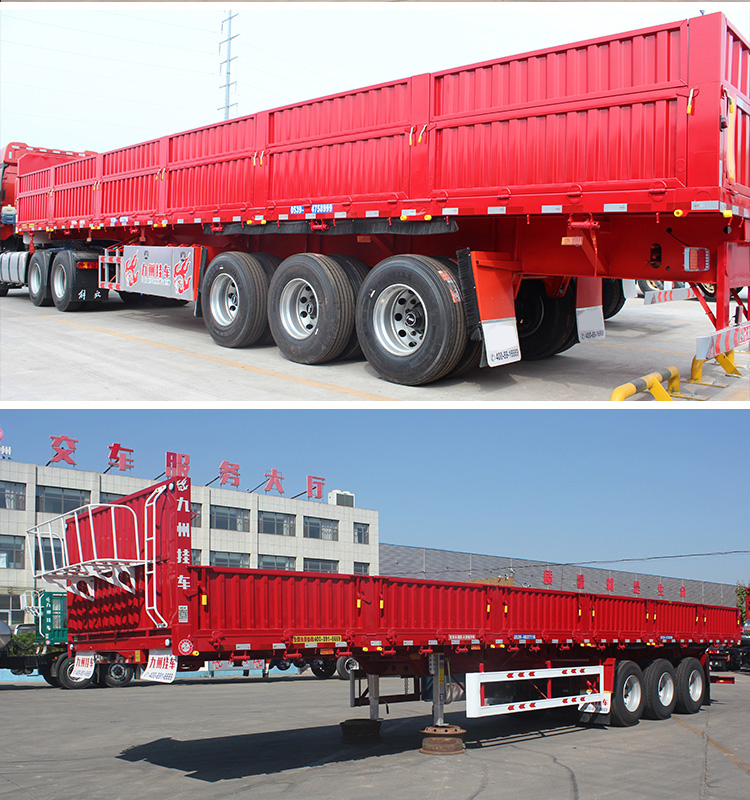

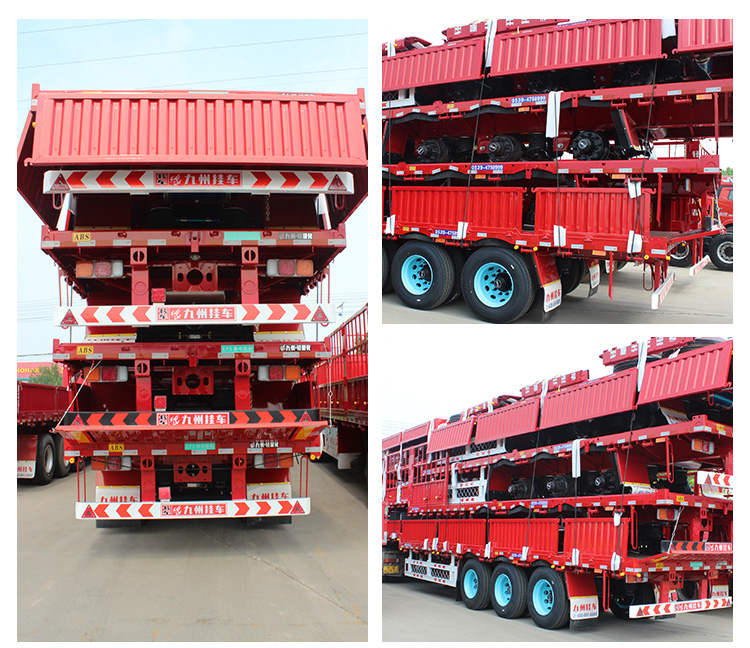

Detailed Pictures:
FAQ:
What are the main uses of a stakebed semi-trailer?
Stakebed semi-trailers are suitable for transporting various bulk goods and large equipment, such as building materials, steel, wood, and machinery. Their open design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a stakebed semi-trailer?
Our stakebed semi-trailers are made of high-strength steel with a maximum load capacity of up to 80 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a stakebed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The stake sides feature a removable design, allowing flexible loading and unloading while ensuring a sturdy and reliable vehicle structure.
Is a stakebed semi-trailer suitable for long-distance transportation?
Yes, our stakebed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the stakebed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
