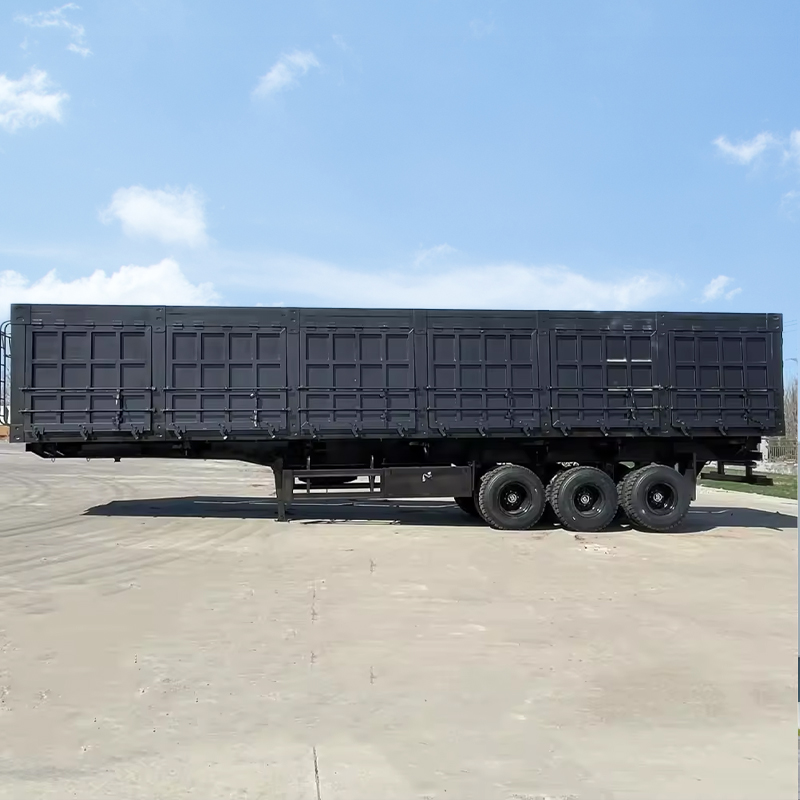

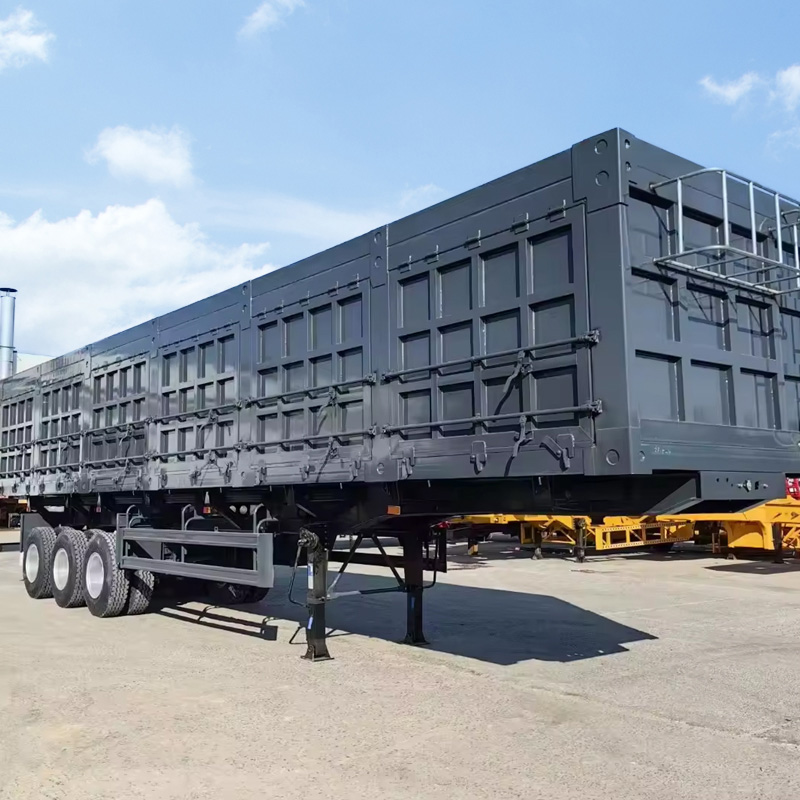

3 Axle Side Dump Tipper Semi Trailer for Sale
34 ton side tipper trailers allow for quick unloading of materials by tilting and releasing the load from the side, reducing time spent on unloading.
34 ton side tipper trailers can handle a variety of materials, including gravel, sand, dirt, and debris, making them suitable for different industries.
Many 34 ton side tipper trailers are designed to maximize load weight and volume, allowing for more efficient transport of materials.
Many models include safety features such as hydraulic locks to secure the side tipper semi trailer during unloading, enhancing operator safety.
The 3 Axle side tipper semi trailer is a specialized transportation vehicle designed for efficient loading and unloading of bulk materials. With its unique side-dumping capability, it offers numerous advantages for industries such as construction, mining, agriculture, and waste management. The three-axle configuration of side tipper semi trailer enhances stability and load distribution, allowing the trailer to carry heavier loads safely and efficiently. Equipped with a powerful hydraulic system, the side tipper semi trailer can easily tilt to one side for quick and controlled unloading of materials.
Parameter:
Product Name | Side Dump Semi Trailer |
Outside Dimension(L*W*H) (mm) | 10000-14000*2550*2900mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:16mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R22.5 |
Rim | 8.0/9.0*12/16 pieces |
Axle | 13 Tons Fuwa / BPW/JOZOTG/Other |
Leaf-spring | 90mm*13/16mm*10 pieces |
Suspension | Mechanical/ Air suspension |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum(1+0.5m) |

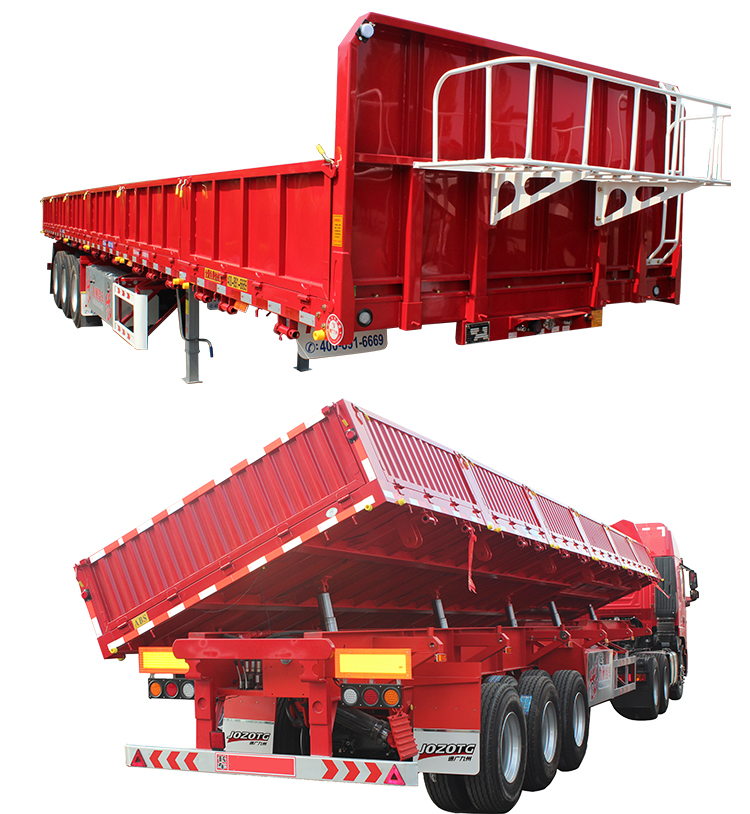

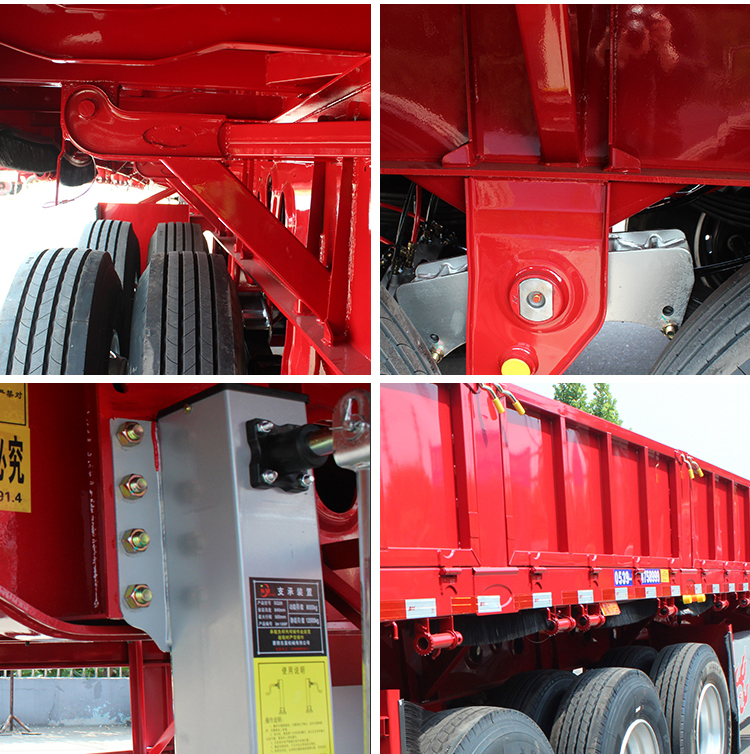

Detailed Pictures:
FAQ
What types of cargo are side-dump semi-trailers suitable for?
Side-dump semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, ore, and grain. Their side-dump design allows for quick unloading, significantly improving work efficiency, making them a highly effective tool for construction sites and logistics transportation!
How efficient is the unloading process of side-dump semi-trailers?
Our side-dump semi-trailers are equipped with a hydraulic side-dump system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of side-dump semi-trailers?
Side-dump semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are side-dump semi-trailers suitable for use in narrow spaces?
Absolutely! The side-dump design of our semi-trailers is particularly suitable for operation in narrow or confined spaces. Unloading can be completed without requiring additional space, making them an ideal choice for construction sites and mining areas.
How is after-sales service handled if issues arise with side-dump semi-trailers?
We offer a lifetime warranty on the main beam, and all components are sourced from top-tier domestic and international brands. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
