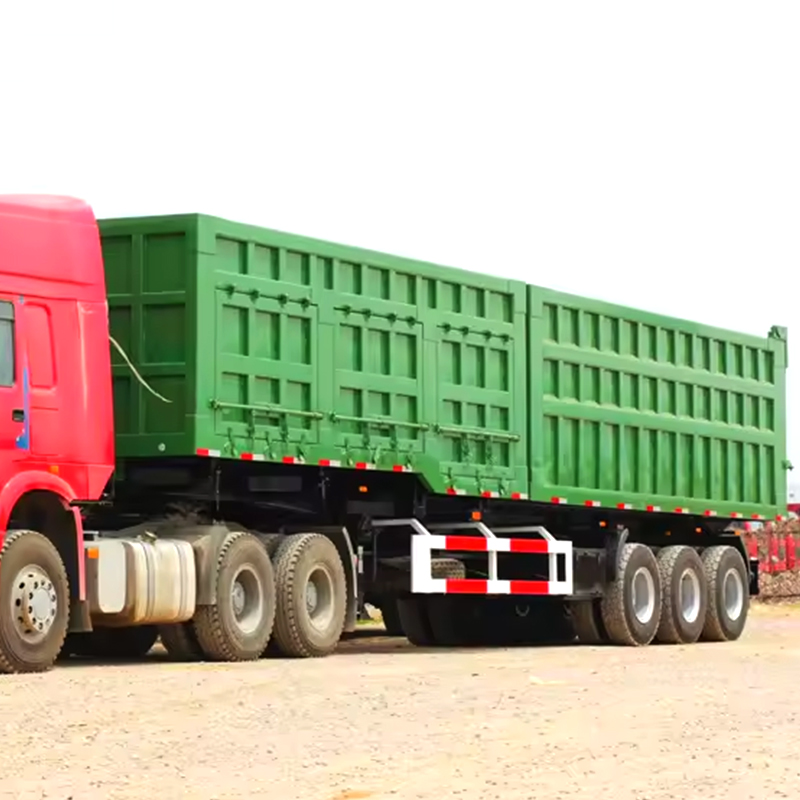

3 Axle Side Dump Trailer
The entire body of the side dump trailer adopts customized Shanghai Baosteel high-quality high-quality steel.
After the analysis and design of the finite element, side dump trailer has the advantages of reasonable structure, beautiful appearance, light weight, strong carrying capacity, and stable performance.
The auxiliary frame of the auxiliary frame adopts the overall penetration of the front and rear, and the beam and the auxiliary beam are designed with a framework architecture to make it more uniform, better rigidity and toughness, and stronger carrying capacity.
The customized hydraulic system is highly matched with the traction vehicle. The oil cylinder uses domestic high-quality manufacturers to ensure that the car uses higher safety. Optional vehicles are equipped with tilt alarm falling devices to effectively avoid turning over the accident during the unloading process.
The 3 axle side dump trailer is a special transportation vehicle designed for transportation materials such as sand, coal, grain, etc. The 3 axle side dump trailer uniqueness is that the side of the carriage can be opened and dumped the material instead of the traditional rear unloading. The hydraulic system of 3 axle side dump trailer is driven by a hydraulic system on the side of the carriage, which can be tilted to the side, and the materials loaded inside are poured out, which greatly improves the efficiency and flexibility of the unloading.
The 3 axle side dump trailer is made of high-strength steel to ensure the structural stability and durability of the vehicle when carrying heavy objects, while reducing the weight and improving transportation efficiency. Design a large-capacity box, which can load a large amount of bulk materials to meet the needs of high-efficiency transportation. The sealing design between the bottom of the carriage and the side plate can effectively prevent the materials from leaking during transportation and keep the environment clean. The contact surface of the bottom and side plates use wear-resistant materials to extend the service life and reduce maintenance costs.
Parameter:
Product Name | Side Dump Semi Trailer |
Outside Dimension(L*W*H) | 10000-14000*2550*2900mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:16mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R22.5 |
Rim | 8.0/9.0*12/16 pieces |
Axle | 13 Tons Fuwa / BPW/JOZOTG/Other |
Leaf-spring | 90mm*13/16mm*10 pieces |
Suspension | Mechanical/ Air suspension |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum(1+0.5m) |

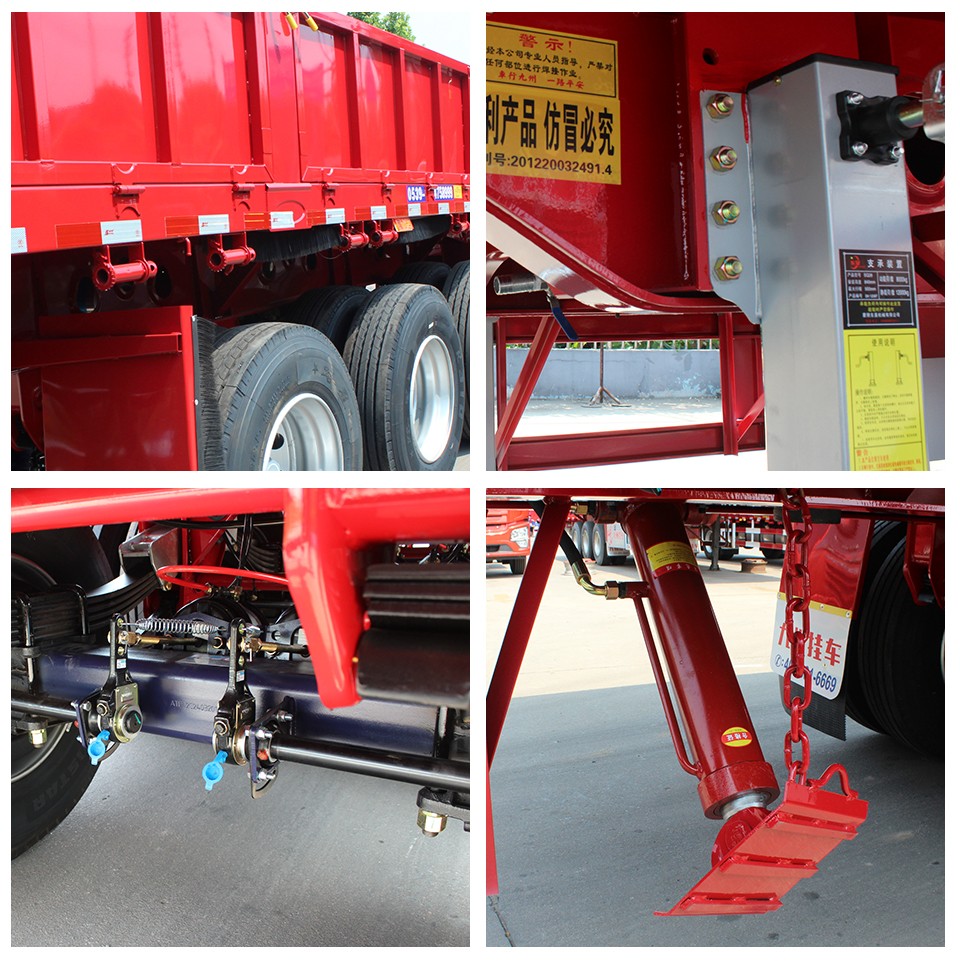

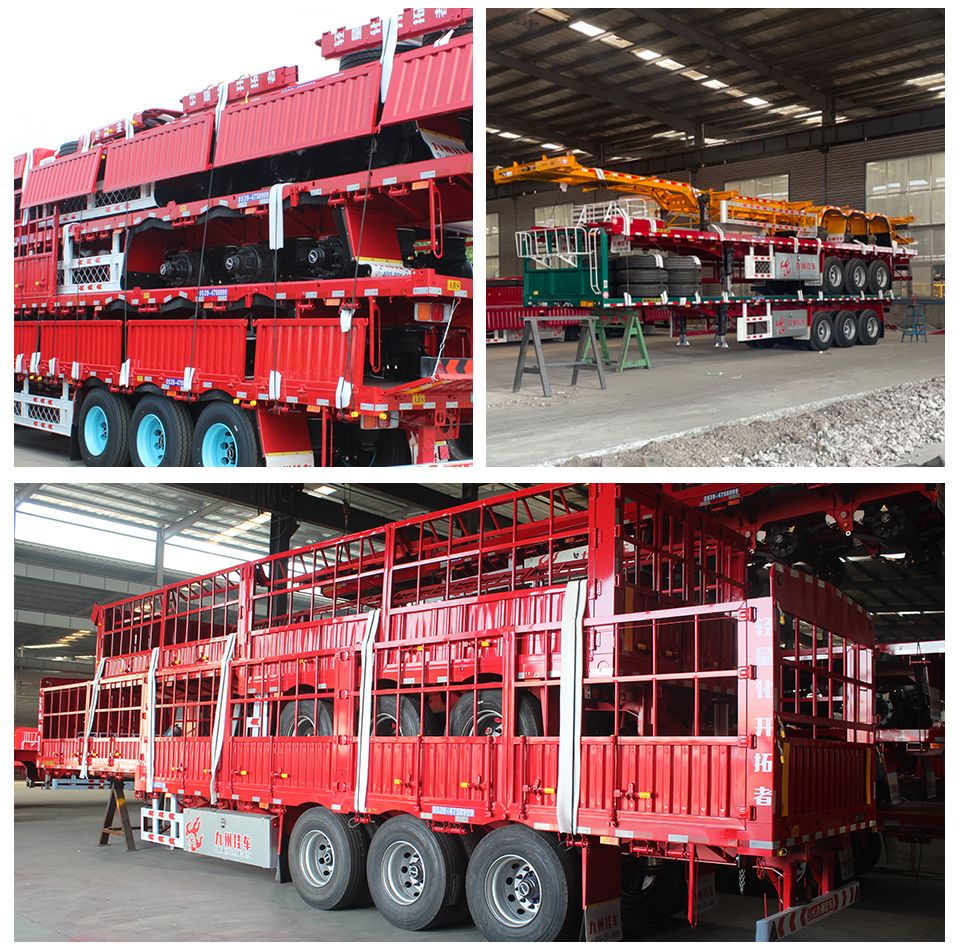

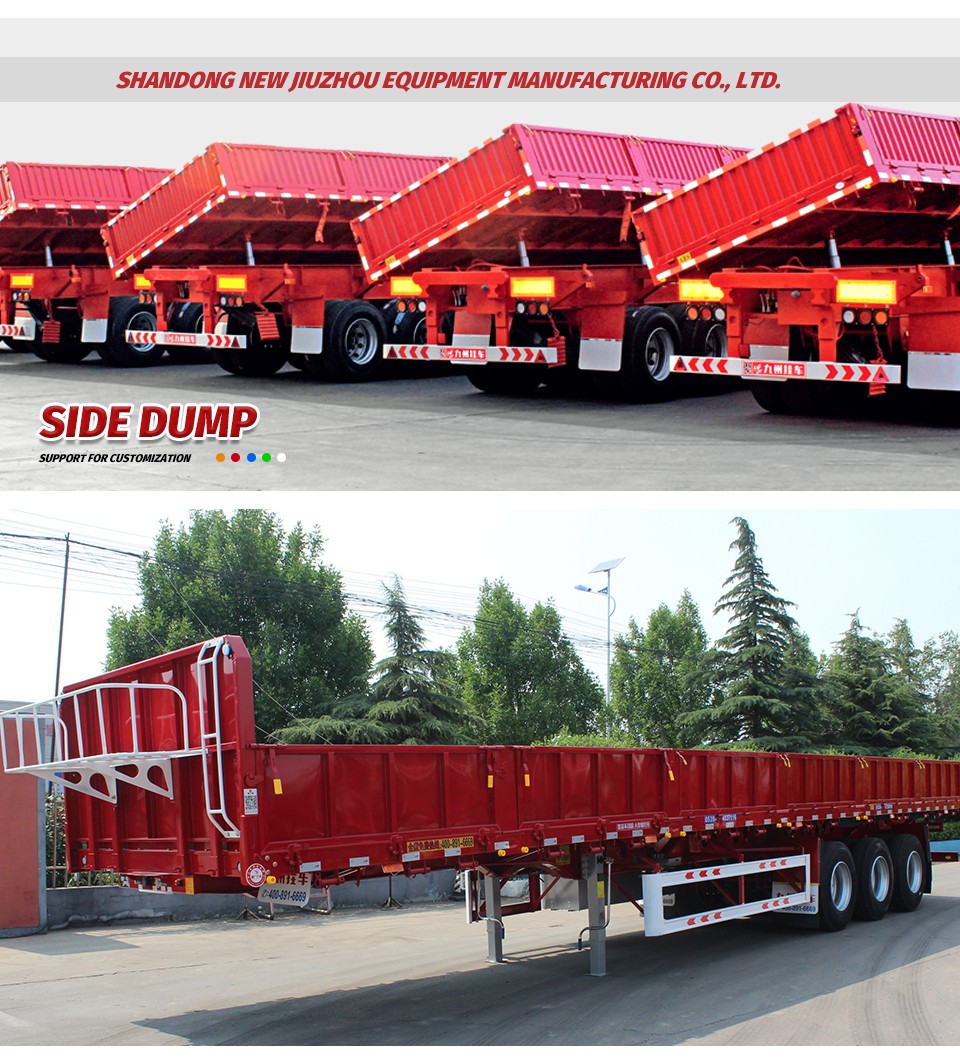

Detailed Pictures:
FAQ
What types of cargo are side-dump semi-trailers suitable for?
Side-dump semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, ore, and grain. Their side-dump design allows for quick unloading, significantly improving work efficiency, making them a highly effective tool for construction sites and logistics transportation!
How efficient is the unloading process of side-dump semi-trailers?
Our side-dump semi-trailers are equipped with a hydraulic side-dump system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of side-dump semi-trailers?
Side-dump semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are side-dump semi-trailers suitable for use in narrow spaces?
Absolutely! The side-dump design of our semi-trailers is particularly suitable for operation in narrow or confined spaces. Unloading can be completed without requiring additional space, making them an ideal choice for construction sites and mining areas.
How is after-sales service handled if issues arise with side-dump semi-trailers?
We offer a lifetime warranty on the main beam, and all components are sourced from top-tier domestic and international brands. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
