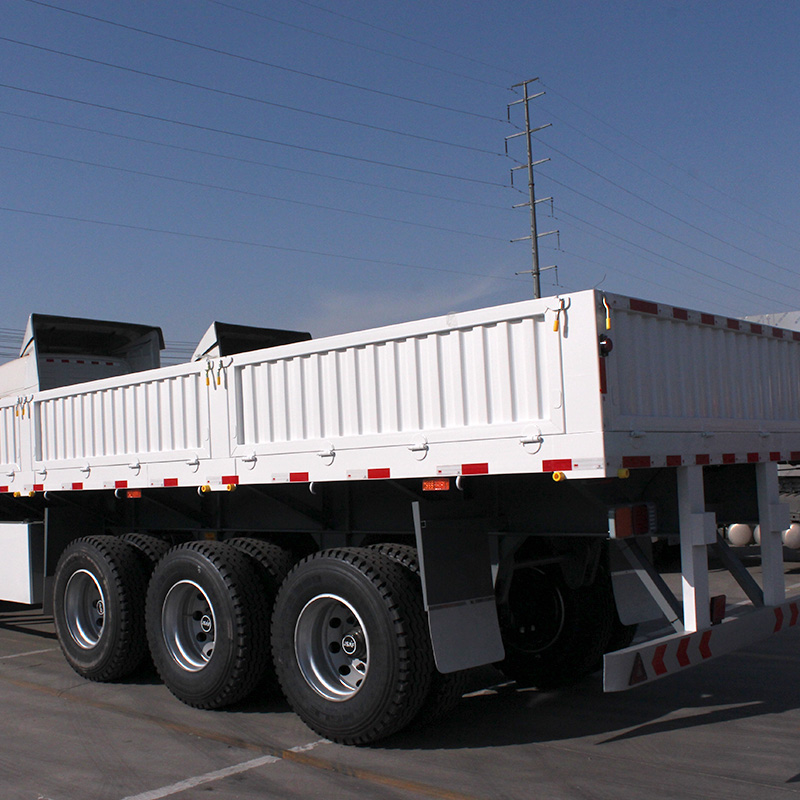

3 Axles Sidewall Flatbed Trailer
The side wall semi trailer is suitable for transportation of various types of goods, especially suitable for bulk goods or cargo that needs to be separated. It can adapt to different shapes and sizes by fixed or installed partitions to improve the flexibility of transportation.
The side wall semi trailer is usually designed with a fence structure, which can effectively prevent cargo from slipping and improve transportation safety. The fence can prevent the goods from being squeezed or collided during driving, protecting the safety of goods and driving personnel.
The side wall semi trailer with a side opening door is easy to operate, which is convenient for loading and unloading. The goods can be easily loaded and unloaded from the side, saving time and labor costs, and improving transportation efficiency.
The 3 axles side wall semi trailer is generally composed of frames, back doors, rail panels, support frames and suspension systems. The 3 axles side wall semi trailer is generally made of steel plates or aluminum alloy, which has strong load -bearing capacity and durability. Board design can effectively block the cargo falling from the semi -trailer, and at the same time, the cargo can be fixed inside the carriage to avoid sliding and damage to the goods during transportation. The design of the 3 axles side wall semi trailer is flexible and diverse, and can be customized according to the size and characteristics of different goods. You can replace or adjust the field position as needed to adapt to different types of cargo transportation. The side wall semi trailer is a common cargo vehicle, which is usually used to transport various cargo. This side wall semi trailer is characterized by the pier structure that can protect and fix the goods to ensure that the cargo arrives at the destination safely during transportation.
Parameter:
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | ≤60T |
3 axles, 13T/16T, FUWA/BPW brand | |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Landing gear | JOST brand |
Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Bottom Platform | 3mm-thick checkered plate |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |

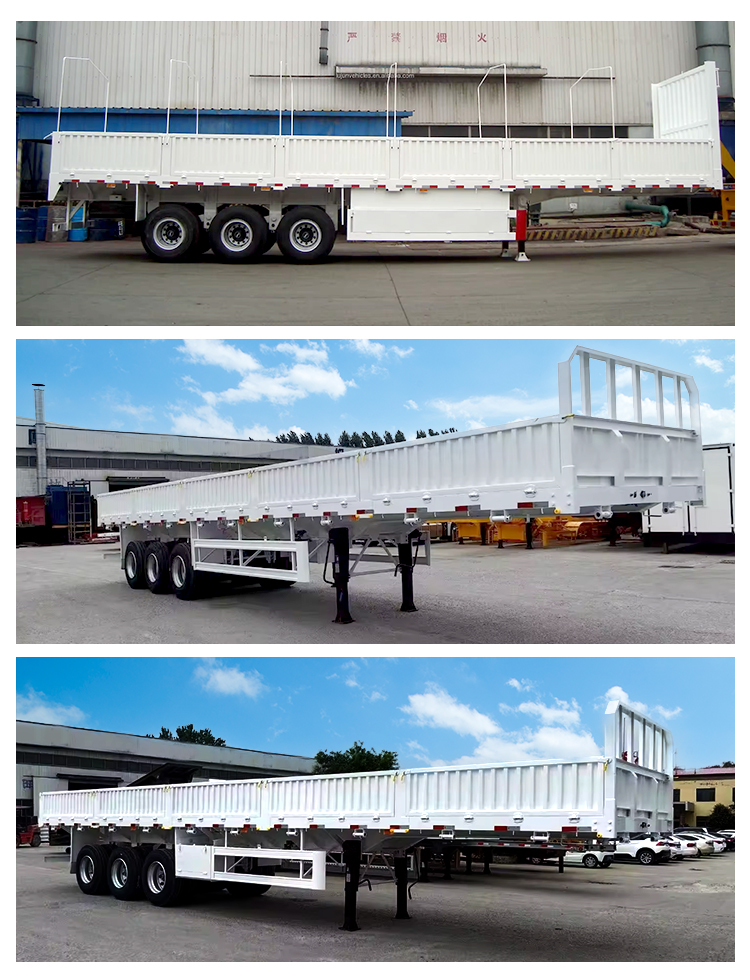

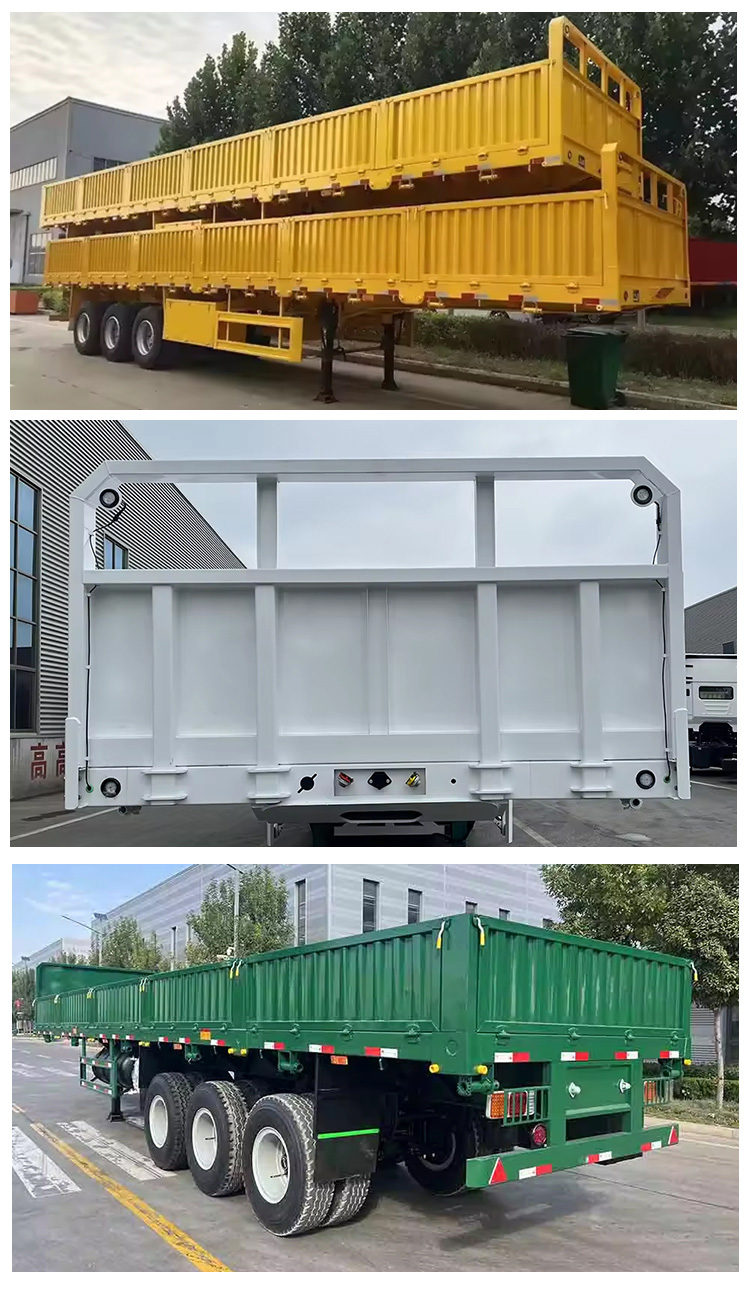

Detailed Pictures:
FAQ:
What are the main uses of a stakebed semi-trailer?
Stakebed semi-trailers are suitable for transporting various bulk goods and large equipment, such as building materials, steel, wood, and machinery. Their open design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a stakebed semi-trailer?
Our stakebed semi-trailers are made of high-strength steel with a maximum load capacity of up to 80 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a stakebed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The stake sides feature a removable design, allowing flexible loading and unloading while ensuring a sturdy and reliable vehicle structure.
Is a stakebed semi-trailer suitable for long-distance transportation?
Yes, our stakebed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the stakebed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
