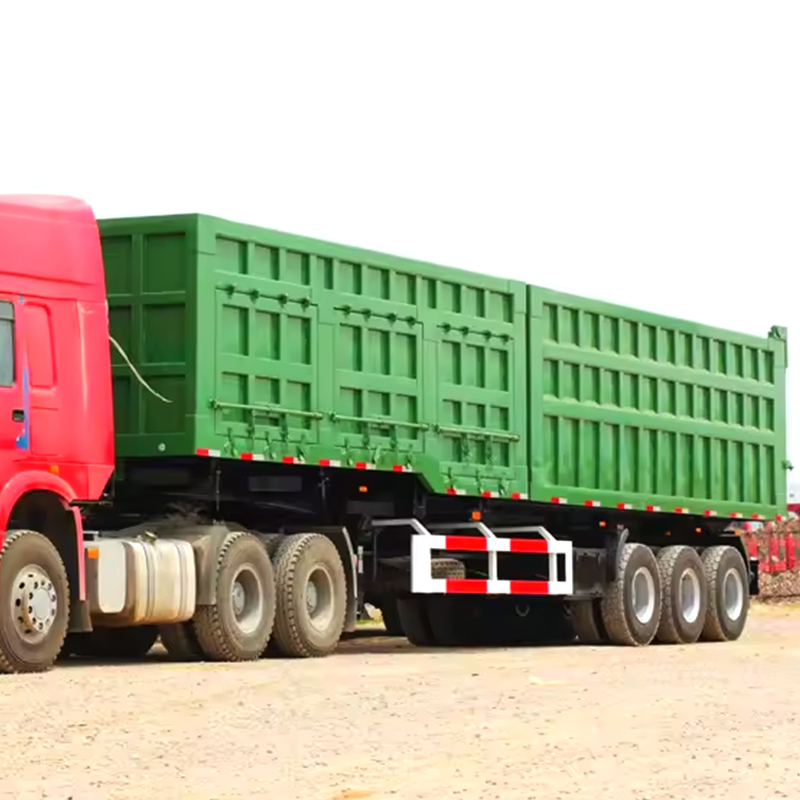

Side Tipper Dump Trailer
The load-bearing capacity range of side tipper dump trailers is wide, ranging from 20 tons to 180 tons, depending on your actual transportation needs. The 3-axis side tipper dump trailers we provide have capacities of 20 cubic meters, 30 cubic meters, and 45 cubic meters respectively, and can carry cargo of 40 tons, 50 tons, 60 tons, 70 tons, 80 tons, and even 100 tons. And 4-axis and 5-axis side tipper dump trailers can carry goods of 100 to 120 tons. If you have a higher load-bearing capacity requirement, our factory also offers multi axle side dump semi trailers for you to choose from. We have a team of engineers who are very familiar with the harsh road conditions in Africa. They will customize and design the most suitable side dump trailer for you based on your specific transportation needs.

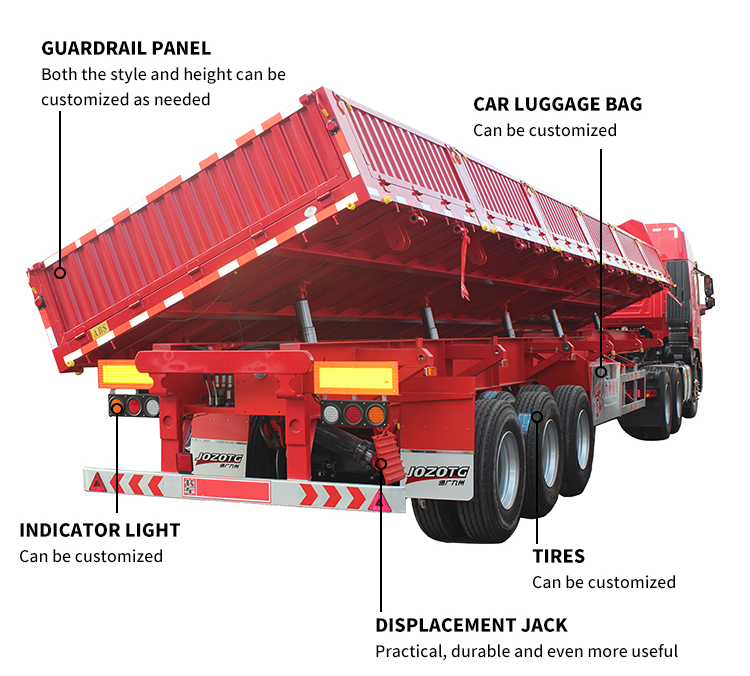

The side dump trailer is usually used to transport those large but low-hardness goods. This type of side dump trailer is equipped with six lifting liquid pressure cylinders with a shift hydraulic cylinder under the fighting body. The six hydraulic cylinders are used to improve and decrease. Buried by the empty space to ensure the safety of operation. Professional design of 3 axle side tipper semi trailer can fully meet your various transportation needs. For dumping trailers, its key components include plate spring suspension and heavy car shafts. These components of 3 axle side tipper semi trailer ensure the stability and load -bearing capacity of the vehicle. In addition, details such as tires, side guards and landing gear are also an important part of our 3 axle side tipper semi trailer. We have also selected various accessories from well-known brands to ensure the high quality and reliability of the entire vehicle.
Parameter:
Product Name | Side Dump Semi Trailer |
Outside Dimension(L*W*H) | 10000-14000*2550*2900mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:16mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R22.5 |
Rim | 8.0/9.0*12/16 pieces |
Axle | 13 Tons Fuwa / BPW/JOZOTG/Other |
Leaf-spring | 90mm*13/16mm*10 pieces |
Suspension | Mechanical/ Air suspension |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum(1+0.5m) |

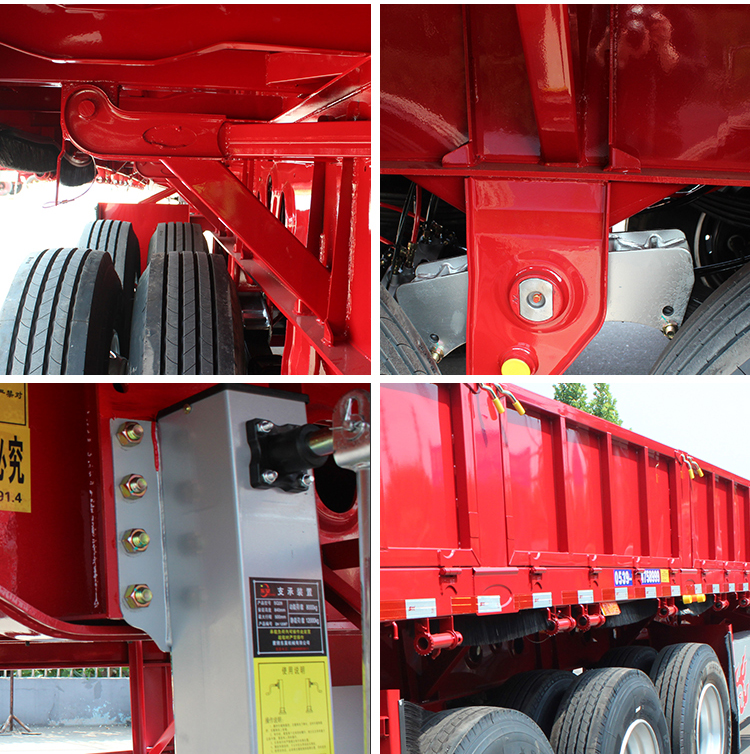

Detailed Pictures:
FAQ
What types of cargo are side-dump semi-trailers suitable for?
Side-dump semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, ore, and grain. Their side-dump design allows for quick unloading, significantly improving work efficiency, making them a highly effective tool for construction sites and logistics transportation!
How efficient is the unloading process of side-dump semi-trailers?
Our side-dump semi-trailers are equipped with a hydraulic side-dump system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of side-dump semi-trailers?
Side-dump semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are side-dump semi-trailers suitable for use in narrow spaces?
Absolutely! The side-dump design of our semi-trailers is particularly suitable for operation in narrow or confined spaces. Unloading can be completed without requiring additional space, making them an ideal choice for construction sites and mining areas.
How is after-sales service handled if issues arise with side-dump semi-trailers?
We offer a lifetime warranty on the main beam, and all components are sourced from top-tier domestic and international brands. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
