3 Axle Side Dump Tipper Semi Trailer
The carrying capacity of side tipper dump trailer ranges from 20 tons to 180 tons, depending on your actual transportation needs. The 3 axle side tipper dump trailer we provide has a capacity of 20 cubic meters, 30 cubic meters, and 45 cubic meters, and can carry goods of 40 tons, 50 tons, 60 tons, 70 tons, 80 tons, and even 100 tons. For larger load demands, 4-axle and 5-axle dump semi trailers can carry goods ranging from 100 to 120 tons. If you have higher load-bearing requirements, our factory also offers a multi axle side tipper dump trailer option. We have a professional team of engineers with a deep understanding of the complex road conditions in Africa, who can customize and design the most suitable dump trailer according to your specific transportation needs.
The 3 axle side tipper semi trailer is mainly used to transport those with large but low hardness. This 3 axle side tipper semi trailer is equipped with six lifting liquid pressure cylinders and a shift hydraulic cylinder under the fighting body. The six hydraulic cylinders are used to improve and decrease operations. The empty space was buried. Its professional design of 3 axle side tipper semi trailer can meet your various transportation needs.For dumping trailers, key components include plate spring suspension and heavy car shafts. These components of 3 axle side tipper semi trailer ensure the stability and load-bearing capacity of the 3 axle side tipper semi trailer under complex road conditions.In addition, the details such as tires, side guards and landing gear are also an important part of our 3 axle side tipper semi trailer. We also choose high -quality accessories from well -known brands to ensure the performance and reliability of the vehicle.
Parameter:
Product Name | Side Dump Semi Trailer |
Outside Dimension(L*W*H) (mm) | 10000-14000*2550*2900mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:16mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R22.5 |
Rim | 8.0/9.0*12/16 pieces |
13 Tons Fuwa / BPW/JOZOTG/Other | |
Leaf-spring | 90mm*13/16mm*10 pieces |
Suspension | Mechanical/ Air suspension |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum(1+0.5m) |

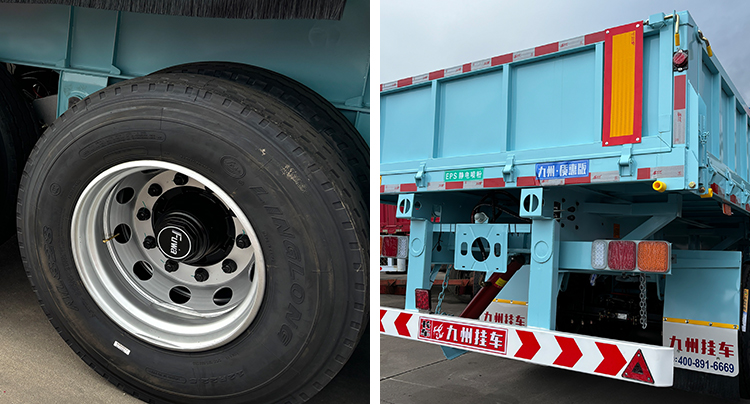

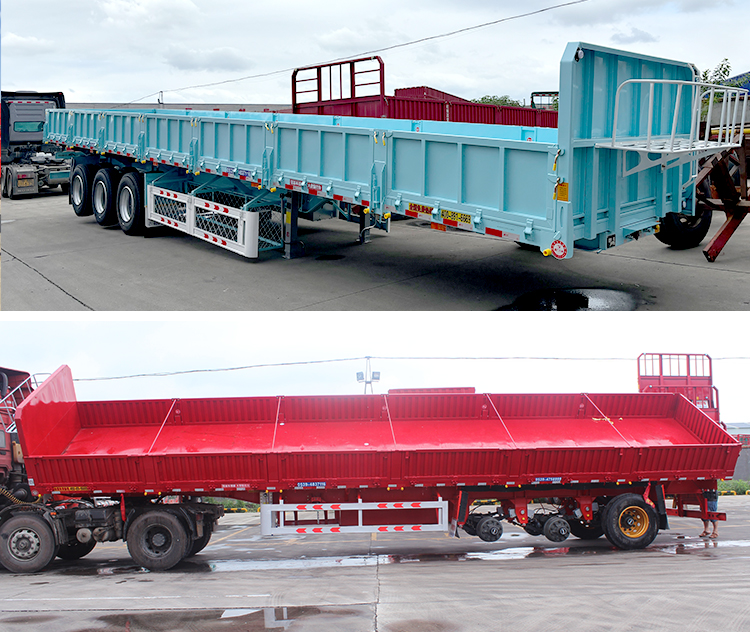

Detailed Pictures:
FAQ
What types of cargo are side-dump semi-trailers suitable for?
Side-dump semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, ore, and grain. Their side-dump design allows for quick unloading, significantly improving work efficiency, making them a highly effective tool for construction sites and logistics transportation!
How efficient is the unloading process of side-dump semi-trailers?
Our side-dump semi-trailers are equipped with a hydraulic side-dump system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of side-dump semi-trailers?
Side-dump semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are side-dump semi-trailers suitable for use in narrow spaces?
Absolutely! The side-dump design of our semi-trailers is particularly suitable for operation in narrow or confined spaces. Unloading can be completed without requiring additional space, making them an ideal choice for construction sites and mining areas.
How is after-sales service handled if issues arise with side-dump semi-trailers?
We offer a lifetime warranty on the main beam, and all components are sourced from top-tier domestic and international brands. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
